SHORT BLOCK ASSEMBLY

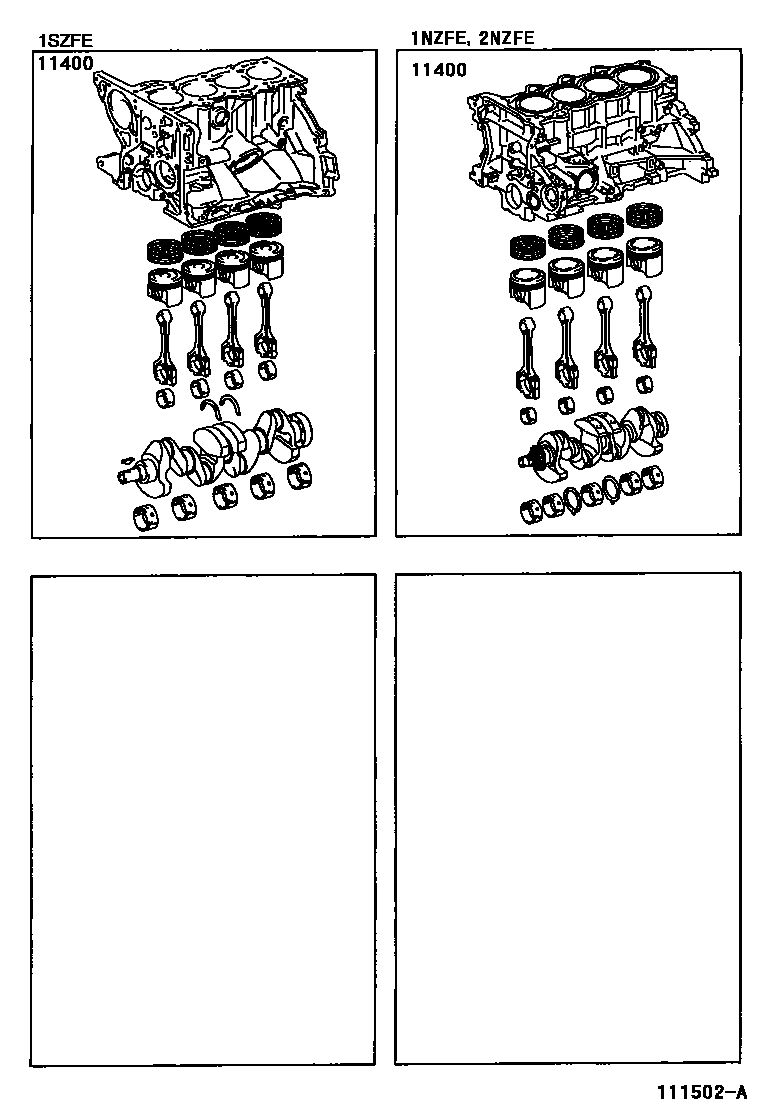

Parts diagram

11400BLOCK ASSY, SHORT

main11400-21040i199908-200212

main11400-21051i200101-200212

main11400-21060i199908-200212

LEADED GASOLINE SPEC

main11400-21080i200212-200312

main11400-21090i200212-200312

main11400-21130i200212-200508

FOR GENERAL(LEADED GASOLINE SPEC)

main11400-21150i200312-200508

main11400-21220i200312-200508

main11400-23020i199903-200001

main11400-23021i200212-200312

main11400-23040i200312-200508

1 parts on this diagram · 1 diagram in section
