STANDARD TOOL

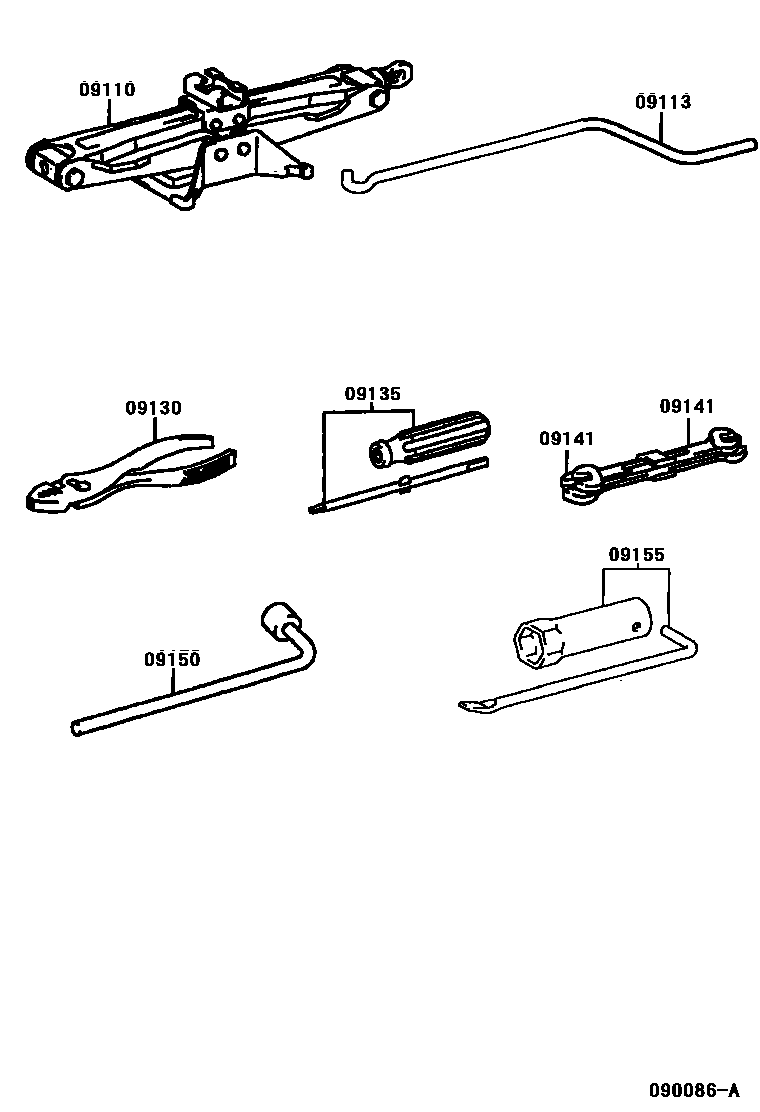

Parts diagram

09110JACK ASSY

main09111-52010i199903-200508

main09111-52020i199908-200508

09113HANDLE, JACK

main09113-52010i199903-200212

09130PLIERS

main99913-11500i199908-200212

09135DRIVER, SCREW

main99915-10700i199908-200212

09141SPANNER

main99914-10810i199908-200212

8 X 10

main99914-11214i199908-200212

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010i199903-200212

09155WRENCH, SPARK PLUG

main09155-74010i199908-200212

7 parts on this diagram · 1 diagram in section
