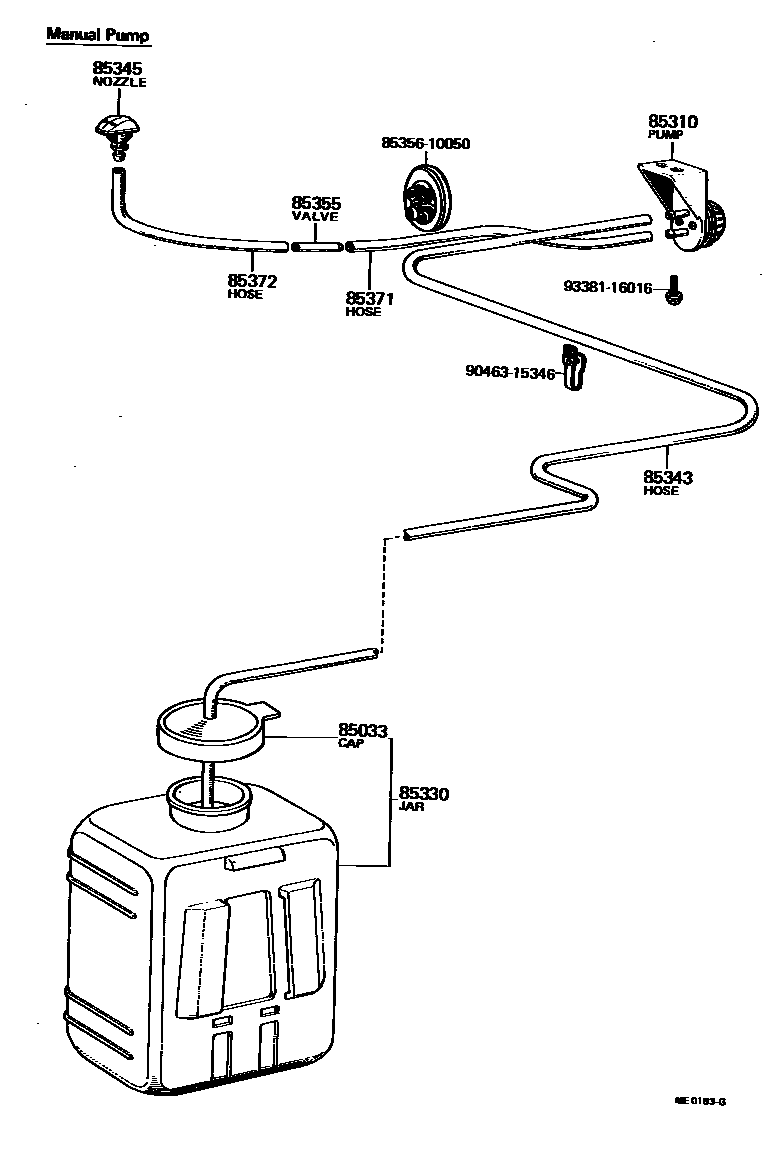

WINDSHIELD WASHER

0001 1 0002 1 0003 1

85033CAP ASSY, WINDSHIELD WASHER

main85332-10060iKP3#197410-197511

main85332-10061iKP3#197511-197805

main85332-10070iKP3#197805-198808

main85332-11010iKP3#196904-197010

main85332-11011iKP3#197010-197112

main85332-11012iKP3#197201-197410

MANUAL PUMP

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85039-11010iKP3#196904-197010

main85039-11011iKP3#197010-197410

MANUAL PUMP

main85310-10060iKP30..LHD197407-197410

ELECTRIC PUMP

main85310-10061iKP3#197511-197805

main85310-60010iKP3#197805-198709

main85310-95700iKP36198709-198808

85330JAR ASSY, WINDSHIELD WASHER

main85330-10070iKP3#197410-197511

main85330-10071iKP3#197511-197805

main85330-10072iKP3#197805-198808

main85330-11010iKP3#196904-197410

MANUAL PUMP

85343HOSE, WINDSHIELD WASHER SUCTION

main85372-10010iKP3#196904-197010

L=1700

main90446-06006iKP3#..LHD197010-197410

L=1800

main90446-06279iKP3#..RHD197010-197410

L=1700

85345NOZZLE, WINDSHIELD WASHER

main85035-10060iKP3#196904-197112

main85035-10061iKP3#197201-198808

85355VALVE, WINDSHIELD WASHER HOSE

main85031-11010iKP3#196904-197410

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85344-11010iKP3#196904-197410

L=100,L=100,MANUAL PUMP

main90446-06013iKP3#197808-198808

L=1000,L=1000

main90446-06055iKP3#197410-197511

L=1300,L=1300

main90446-06183iKP30,36197511-197808

L=1000(*H,L=950),L=950

main90446-06253iKP30..LHD197407-197410

L=2000(*H,L=1400),L=1400,ELECTRIC PUMP

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013iKP3#196904-197010

L=1000,L=700

main90446-06277iKP3#..RHD197010-197410

L=1000(*H,L=750),L=750

8535610050PACKING (FOR WINDSHIELD WASHER JAR)

main85356-10050

9046315346

main90463-15346

9338116016

main93381-16016

11 parts on this diagram · 3 diagrams in section
