EPC Data

LOCK CYLINDER SET

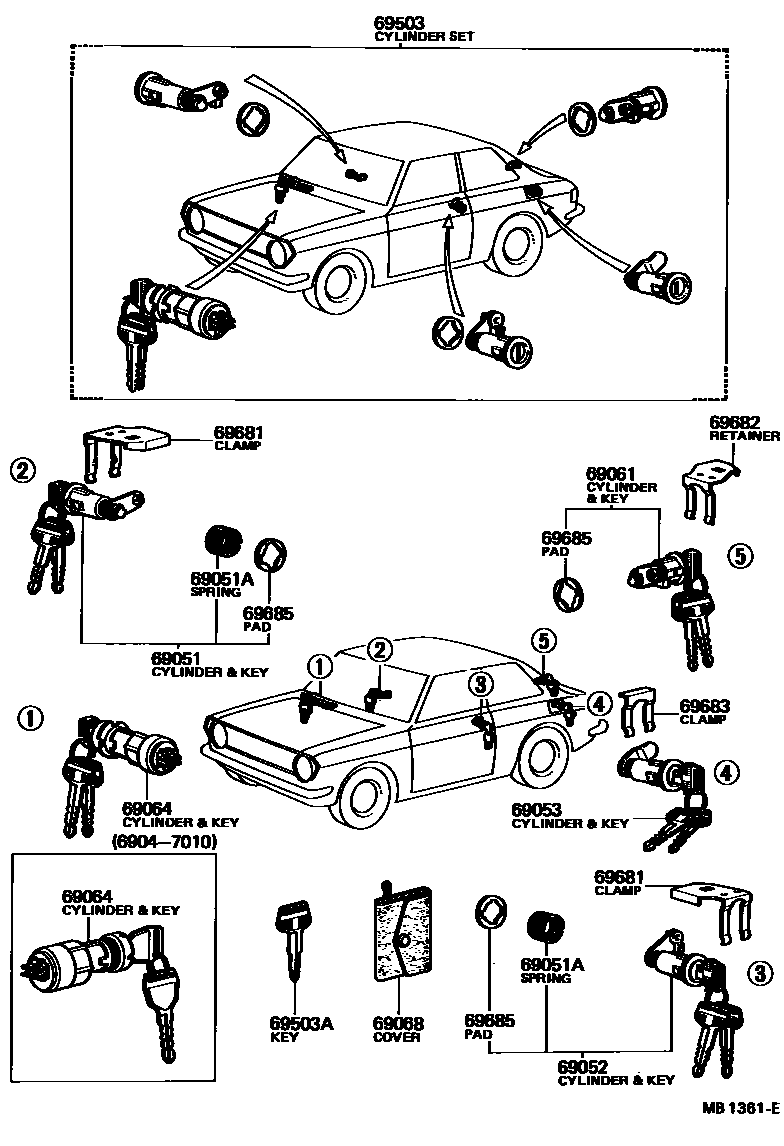

Parts diagram
69051CYLINDER & KEY SET, DOOR LOCK, RH
main69051-10020i196904-197010
sub69051-10010
main69051-11030i196904-197010
main69051-19015i197010-197511
sub69051-19016
main69051-19016i197511-197802
sub69051-19085
main69051-19025i197010-197511
sub69051-19105
main69051-19105i197511-198808
69051ASPRING, DOOR LOCK CYLINDER
main90508-09279i197010-197802
main90508-09280i197010-197105
main90508-10278i197105-198808
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-10020i196904-197010
sub69052-10010
main69052-11020i196904-197010
main69052-19015i197010-197511
sub69052-19016
main69052-19016i197511-197802
sub69052-19085
main69052-19025i197010-197511
sub69052-19105
main69052-19105i197511-198808
69053CYLINDER & KEY SET, FUEL INLET LOCK
main69053-10020i196904-197010
sub69053-10021
main69053-10021i197010-197112
sub69053-10011
main69053-11013i197511-198808
main69053-11020i196904-197010
sub69053-11021
main69053-11021i197010-197112
main69053-11022i197201-197511
sub69053-11013
69061CYLINDER & KEY SET, LUGGAGE LOCK
main69061-10020i196904-196909
sub69061-10010
main69061-19016i197201-197405
sub69061-19017
main69061-19017i197405-197511
sub69061-19018
main69061-19018i197511-197802
main69061-19025i196909-197010
sub69061-19015
main69061-19026i197010-197112
sub69061-10022
69064CYLINDER & KEY SET, IGNITION SWITCH LOCK
main69057-11010i197511-197809
6 NOTCH KEY
main69057-11010i197604-198808
6NOTCH KEY,FINLAND SPEC
main69064-10011i197209-197511
sub69064-10012
main69064-10012i197511-197802
main69064-11012i197511-198808
5 NOTCH KEY
main69064-11020i197201-197209
sub69064-11021
main69064-11021i197209-197511
sub69064-11012
main84045-10020i196904-197010
sub84045-10010
main84045-10021i197010-197209
main84045-11020i196904-197010
main84045-11021i197010-197112
sub84045-11010
69068COVER SUB-ASSY, KEY
main69555-20010i197002-197609
main84041-12010i196904-197002
sub69555-20010
69503CYLINDER SET, LOCK
main69005-19135i197511-197802
sub69503-19505
main69005-19145i197511-197809
5 NOTCH KEY
main69005-19155i197511-197809
6 NOTCH KEY
main69005-19165i197603-197809
WEST GERMANY SPEC
main69005-96970i197511-198808
main69005-96971i197604-198808
6NOTCH FINLAND SPEC
main69503-10031i196904-196909
W/O FUEL LOCK
sub69503-10021
main69503-10041i196904-196909
W/FUEL LOCK
sub69503-10021
main69503-11050i196904-197010
W/O FUEL LOCK
main69503-11060i196904-197010
W/FUEL LOCK
main69503-11120i196911-197010
W/O FUEL LOCK
main69503-11130i196911-197010
W/FUEL LOCK
main69503-19035i196909-197010
W/O FUEL LOCK
sub69503-19025
main69503-19036i197010-197112
W/O FUEL LOCK
main69503-19037i197201-197209
sub69503-19038
main69503-19038i197209-197405
sub69503-19505
main69503-19045i196909-197010
W/FUEL LOCK
main69503-19046i197010-197112
W/FUEL LOCK
sub69503-10043
main69503-19225i197010-197112
W/O FUEL LOCK
sub69503-11051
main69503-19226i197201-197209
W/O FUEL LOCK
sub69503-19227
main69503-19227i197209-197511
W/O FUEL LOCK
main69503-19235i197010-197112
W/FUEL LOCK
main69503-19236i197201-197209
W/FUEL LOCK
sub69503-19237
main69503-19237i197209-197511
W/FUEL LOCK
main69503-19237i197511-197809
5 NOTCH KEY
main69503-19265i197010-197112
W/O FUEL LOCK
main69503-19275i197010-197112
W/FUEL LOCK
main69503-19505i197405-197802
main69503-96970i197201-197210
W/O FUEL LOCK
sub69503-96972
main69503-96971i197201-197210
W/FUEL LOCK
sub69503-96973
main69503-96972i197210-197511
W/O FUEL LOCK
main69503-96973i197511-198808
main69503-96973i197210-197511
W/FUEL LOCK
69503AKEY, BLANK
main90999-00023i196904-197010
main90999-00040i196904-197010
sub90999-00057
main90999-00045i197010-197112
sub90999-00054
main90999-00047i197010-197112
sub90999-00057
main90999-00054i197201-197611
sub90999-00066
main90999-00057i197201-197511
sub90999-00067
main90999-00066i197511-197802
MASTER KEY
sub90999-00085
main90999-00067i197511-198808
MASTER KEY
69681CLAMP, DOOR LOCK CYLINDER & SLEEVE
main69681-10010i196904-197010
main69681-11010i196904-197010
main69681-20010i197010-197502
sub69681-20040
main69681-20040i197502-198808
69682RETAINER, LOCK CYLINDER
main69681-20010i196909-197112
sub69681-20040
main69682-10010i197201-197802
main69682-13010i196904-197809
69683CLAMP, FUEL LOCK CYLINDER
main69681-20010i197111-197502
sub69681-20040
main69681-20040i197502-198808
main69683-10010i196904-197111
sub69681-20040
69685PAD, LOCK CYLINDER
main69563-11010i197603-197809
BACK DOOR,WEST GERMANY SPEC
main69685-12010i196909-198808

13 parts on this diagram · 4 diagrams in section
