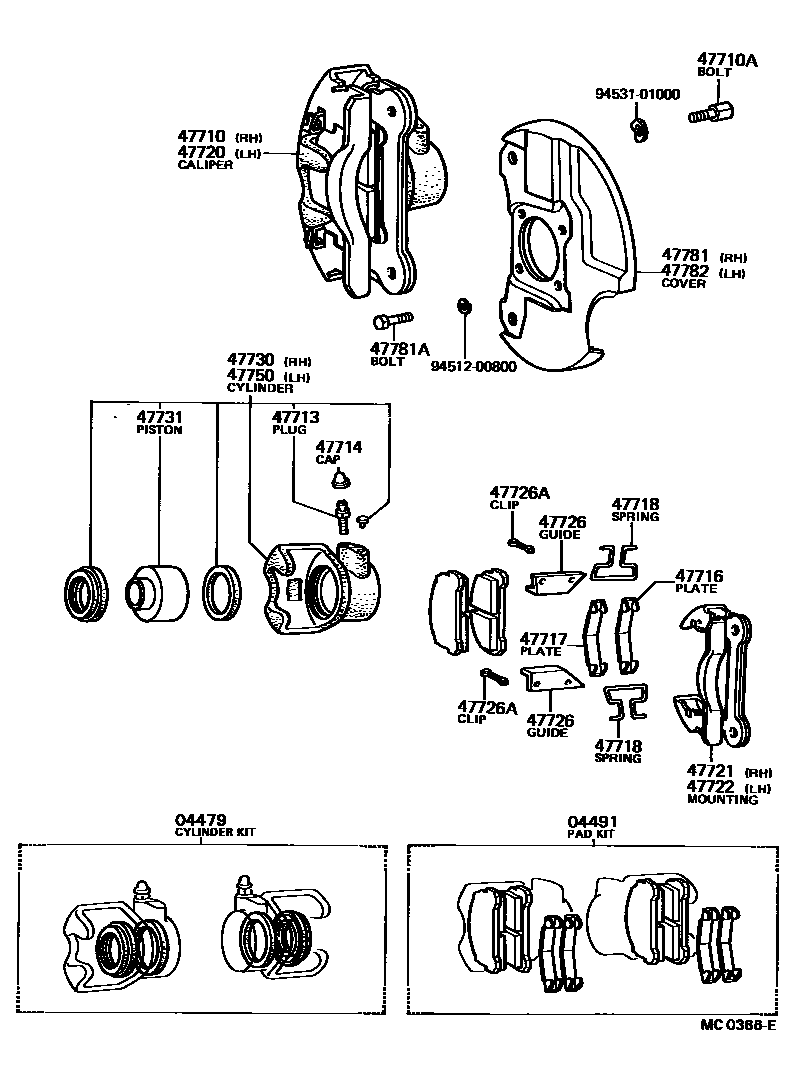

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-10010iKP30197201-197507

main04479-10020iKP30,36..SED,V197605-197809

main04479-12011iKP3#..SED,V196904-197107

main04479-12012iKP3#..SED,V197107-197112

04491PAD KIT, DISC BRAKE, FRONT

main04491-10010iKP30197112-197304

main04491-10011iKP30197304-197512

main04491-10020iKP30,36..SED,V197605-197809

main04491-12010iKP3#..SED,V196904-197111

main04491-12011iKP3#..SED,V197111-197112

47710CALIPER ASSY, DISC BRAKE, FRONT, RH

main47710-10010iKP30197201-197304

main47710-10011iKP3#..SED,V197512-197605

main47710-10020iKP30,36..SED,V197605-197809

main47710-12011iKP3#..SED,V196904-197002

main47710-12012iKP3#..SED,V197002-197112

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-10236×4iKP3#..SED,V196904-197112

main90101-10396×4iKP30197201-197507

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iKP30,36196904-197809

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iKP3#196904-197809

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-12011×2iKP3#..SED,V196904-197112

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-12011×2iKP3#..SED,V196904-197112

47718SPRING, FRONT DISC BRAKE CYLINDER SUPPORT

main47718-12010×4iKP3#..SED,V196904-197112

47720CALIPER ASSY, DISC BRAKE, FRONT, LH

main47720-10010iKP30197201-197304

main47720-10011iKP3#..SED,V197512-197605

main47720-10020iKP30,36..SED,V197605-197809

main47720-12011iKP3#..SED,V196904-197002

main47720-12012iKP3#..SED,V197002-197112

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12011iKP3#..SED,V196904-197112

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12011iKP3#..SED,V196904-197112

47726GUIDE, FRONT DISC BRAKE CYLINDER

main47726-12010×4iKP3#..SED,V196904-197112

47726ACLIP(FOR FRONT DISC BRAKE CYLINDER)

main90468-12017×8iKP3#..SED,V196904-197112

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12011iKP3#..SED,V196904-197002

main47730-12012iKP3#..SED,V197002-197112

47731PISTON, FRONT DISC BRAKE

main47731-10010×2iKP3#..SED,V197512-197605

OUTER

main47731-10020×2iKP30,36..SED,V197605-197809

OUTER

main47731-12010×2iKP3#..SED,V196904-197107

main47731-12011×2iKP3#..SED,V197107-197117

main47732-10010×2iKP30;KP36..V..LHD197507-197512

INNER

main47732-10020×2iKP30,36..SED,V197605-197809

INNER

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12011iKP3#..SED,V196904-197002

main47750-12012iKP3#..SED,V197002-197112

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-10010iKP30197201-197304

main47703-10011iKP30;KP36..V..LHD197507-197512

main47703-12012iKP3#..SED,V196904-197112

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-08235×8iKP3#..SED,V196904-197112

main90101-08395×8iKP30;KP36..V..LHD197507-197512

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-10010iKP30197201-197304

main47704-10011iKP30197304-197507

main47704-12012iKP3#..SED,V196904-197112

9451200800

main94512-00800

9453101000

main94531-01000

22 parts on this diagram · 4 diagrams in section
