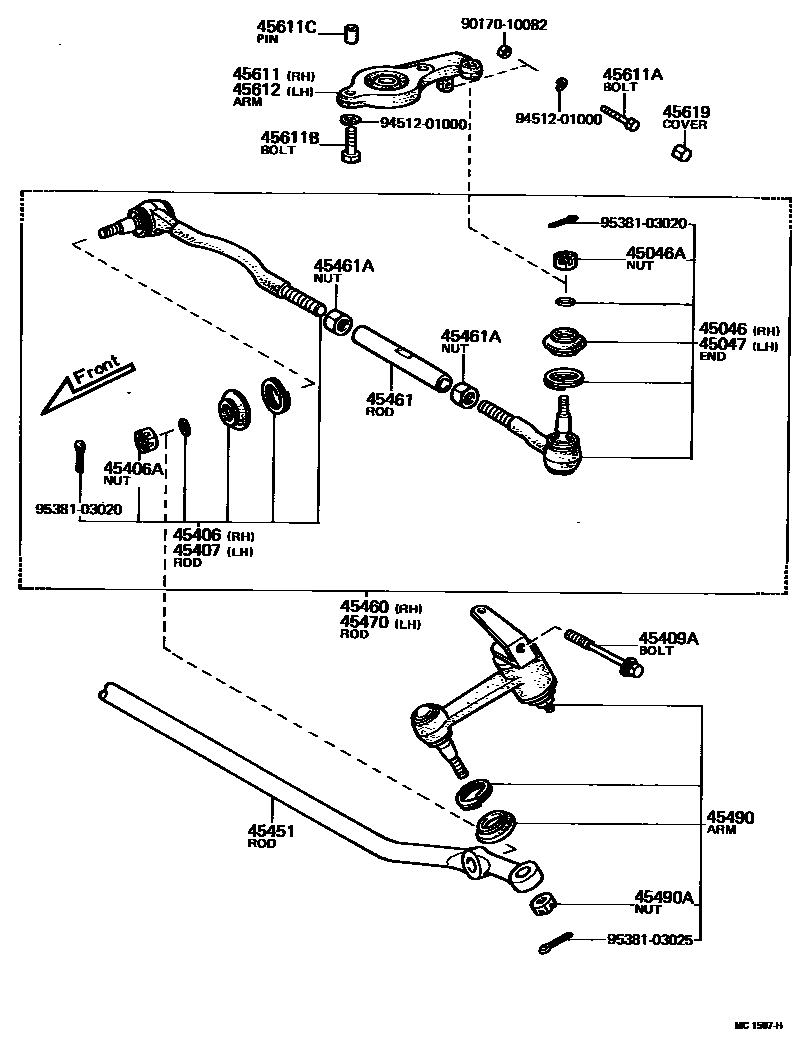

FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45406ROD SUB-ASSY, TIE, RH
45406ANUT, CASTLE(FOR TIE ROD)
45407ROD SUB-ASSY, TIE, LH
45409ABOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)
45460ROD ASSY, TIE, RH
45461ROD, STEERING TIE
45461ANUT(FOR STEERING TIE ROD LOCK)
RH SCREW
LH SCREW
RH SCREW
LH SCREW
45470ROD ASSY, TIE, LH
45490ARM ASSY, STEERING IDLER
45490ANUT, CASTLE(FOR IDLER ARM)
45611BBOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
*10-1.25PX32-14
45611CPIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
45619COVER, KNUCKLE STOPPER
9017010082
main90170-10082
9451201000
main94512-01000
9538103020
main95381-03020
9538103025
main95381-03025
24 parts on this diagram · 2 diagrams in section
