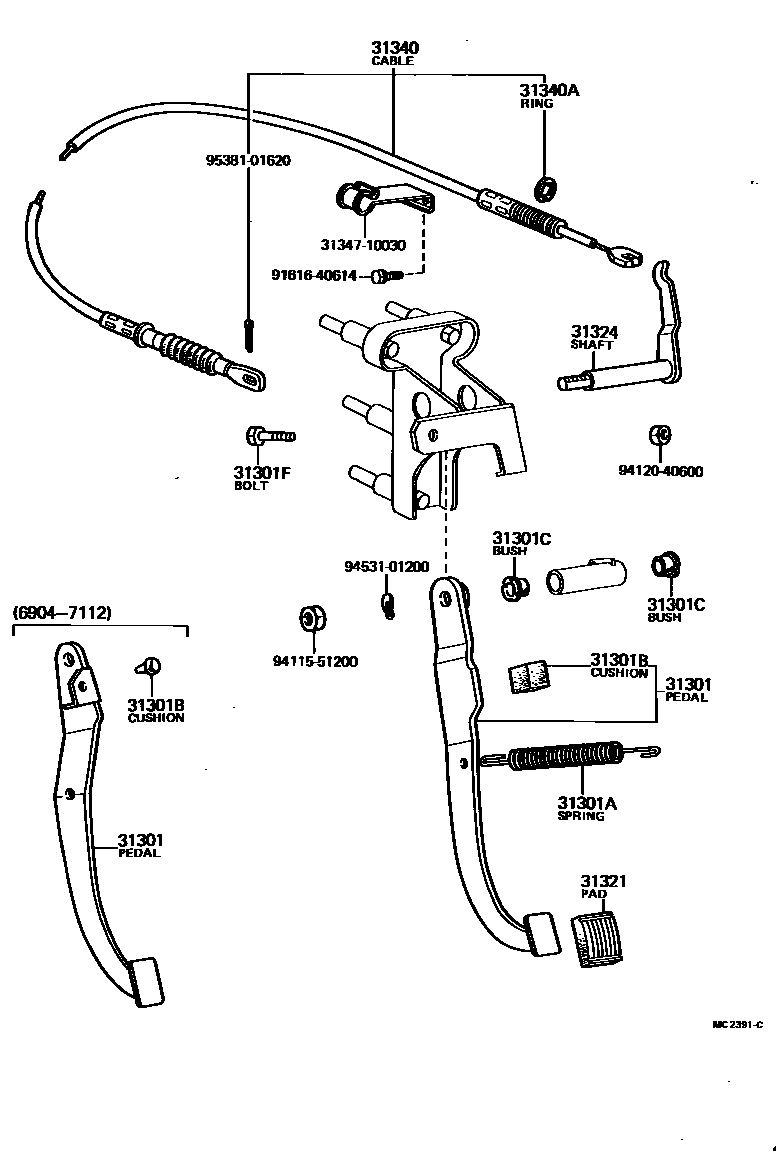

Toyota TOYOTA1000 — CLUTCH PEDAL & FLEXIBLE HOSE
31301PEDAL SUB-ASSY, CLUTCH
31301ASPRING(FOR CLUTCH PEDAL)
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31321PAD, CLUTCH PEDAL
31340CABLE ASSY, CLUTCH RELEASE
31340ARING, E(FOR CLUTCH RELEASE CABLE)
3134710030CLAMP, CLUTCH CABLE
9161640614
9411551200
9412040600
9453101200
9538101620
15 parts on this diagram · 3 diagrams in section
CLUTCH PEDAL & FLEXIBLE HOSE for Toyota TOYOTA1000
This section contains 27 genuine Toyota parts for the CLUTCH PEDAL & FLEXIBLE HOSE system of the Toyota TOYOTA1000. Key components include: PEDAL SUB-ASSY, CLUTCH, SPRING(FOR CLUTCH PEDAL), CUSHION, NO.1(FOR CLUTCH PEDAL), BUSH(FOR CLUTCH PEDAL), BOLT(FOR CLUTCH PEDAL STOPPER).
