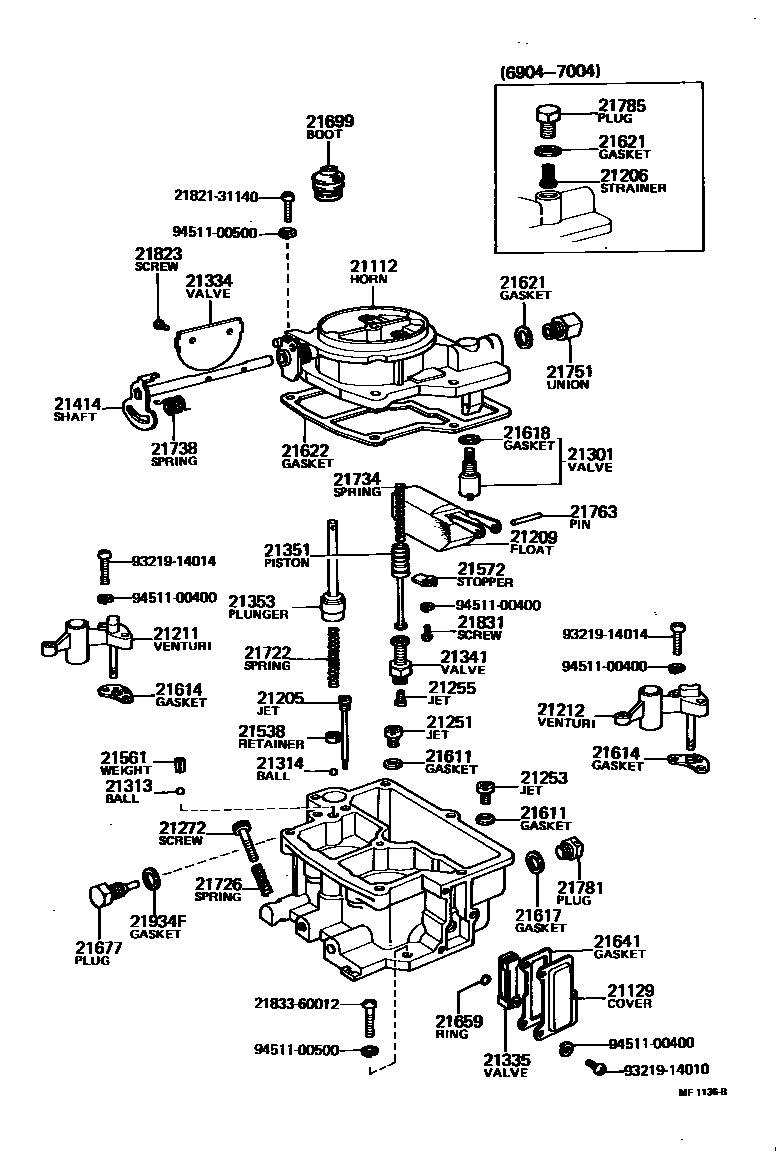

21112HORN, AIR

main21012-24030i197707-197805

main21102-22013i196904-197004

main21112-12070i197805-198108

main21112-24030i197004-197112

main21112-24031i197201-197211

main21112-24032i197211-197310

main21112-24340i197310-198808

21129COVER(FOR THERMOSTATIC VALVE)

main21129-23010i196904-197305

main21129-24030i197805-198808

main21129-24160i197805-198108

21205JET SUB-ASSY, SLOW

main21205-22010i196904-197304

ID=0.47

main21205-24011i197304-197310

ID=0.47

main21205-24510i197805-198108

ID=0.47

main90999-44145i197707-197805

ID=0.45

main90999-44147i197310-198808

ID=0.47

21206STRAINER SUB-ASSY

main21294-10010i196904-197004

21209FLOAT SUB-ASSY

main21209-22010i196904-196911

main21209-24010i196911-198808

21211VENTURI, 1ST SMALL

main21211-22040i196904-198808

main21211-24230i197707-198108

21212VENTURI, 2ND SMALL

main21202-22010i196904-197304

main21212-12030i197304-198808

main21212-24231i197707-198108

21251JET, 1ST MAIN

main21251-12010i196904-197004

ID=0.94,ISO

main21251-12011i197004-197102

ID=0.98

main21251-12012i197103-197112

ID=0.94

main90999-41092i197201-198808

ID=0.92

main90999-41105i197707-198108

21253JET, 2ND MAIN

main21253-12010i196904-197004

ID=1.60,ISO

main21253-31085i197004-197112

ID=1.62

main90999-42141i197707-198108

main90999-42162i197201-198808

ID=1.62

21255JET, POWER

main21255-22050i196904-198808

ID=0.65

main90999-43080i197707-198108

21272SCREW, 1ST IDLE ADJUSTING

main21273-13390i198405-198808

main21273-22010i196904-197005

main21273-22011i197005-197304

main21273-24230i197304-198002

main21273-24231i198006-198108

21301VALVE SUB-ASSY, NEEDLE

main21301-22010i196904-196911

main21301-24010i196911-197112

main21301-24030i197201-197909

main21301-24580i197909-198808

21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)

main21313-11020i196904-198808

21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)

main21314-60010i196904-198808

21334VALVE, CHOKE

main21334-22010i196904-197112

main21334-25030i197201-197805

21335VALVE, THERMOSTATIC

main21335-12010i196904-197209

main21335-12011i197209-198808

main21335-24030i197707-197805

main21335-24230i198006-198108

21341VALVE, POWER

main21304-30010i196904-198808

main21341-24030i197707-198108

21351PISTON, POWER

main21351-33080i197304-198808

main21708-22010i196904-197304

21353PLUNGER, PUMP

main21305-22011i196904-198808

21414SHAFT, CHOKE

main21054-24010i197707-198108

main21403-22011i196904-198808

21538RETAINER, BALL CHECK

main21538-31010i196904-198808

21561WEIGHT, PUMP DISCHARGE

main21561-22010i197005-198808

main21561-30010i196904-197004

21572STOP, POWER PISTON

main21572-22010i196904-197304

main21572-33080i197304-198808

21611GASKET, MAIN JET

main21611-22010×2i196904-198808

21614GASKET, VENTURI

main21614-22010i196904-198808

21617GASKET, MAIN PASSAGE PLUG

main21617-30010i197304-198808

main21649-22010i196904-197304

21618GASKET, NEEDLE VALVE SEAT

main21618-14010i198006-198108

main21618-21010i196904-197112

main21618-24030i197201-197909

21621GASKET, UNION NIPPLE

main21619-22010i196904-197004

main21633-24030i197004-198808

21622GASKET, AIR HORN

main21622-22010i196904-197101

main21622-24010i197101-197211

main21622-24011i197211-197805

main21622-24440i197805-198808

21641GASKET(FOR THERMOSTATIC VALVE COVER)

main21641-23010i196904-197805

21659RING, O(FOR THERMOSTATIC VALVE)

main21641-24030i197304-197805

main23532-40010i196904-197304

21677PLUG

main21677-24100i197304-198808

21699BOOT(FOR PUMP PLUNGER)

main21699-21061i196904-198009

main21699-28150i198009-198808

21722SPRING, PUMP DAMPING

main21722-22010i196904-198808

21726SPRING, 1ST IDLE ADJUSTING

main21726-40010i196904-197304

main21864-24230i197304-198808

21734SPRING, POWER PISTON

main21734-22010i196904-197004

main21734-22050i197004-198808

main21734-24031i197707-198108

21738SPRING, CHOKE VALVE RELIEF

main21738-11051i196904-197304

main21738-22013i197304-198808

main21738-24030i197707-198108

21751UNION, NIPPLE

main21751-24030i197004-197101

main21751-24031i197101-197112

main21751-24032i197201-197805

main21751-24033i197805-197810

main21751-24034i197810-198808

21763PIN, FLOAT LEVER

main21763-29270i196904-198808

21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

main21677-22010i196904-197304

main21781-30020i197304-198808

21785PLUG, CARBURETOR FUEL INLET STRAINER

main21781-60010i196904-197004

21823SCREW, CHOKE, VALVE SET

main21822-10011×2i197002-198808

main21823-60010×2i196904-197002

21831SCREW, POWER PISTON STOP

main21842-33010i196904-198808

21934FGASKET

main21617-10010i197304-198405

main21649-38010i198405-198808

2182131140SCREW, 2ND THROTTLE VALVE SET

main21821-31140

2183360012SCREW, SET, NO.1(FOR CARBURETOR BODY SET)

main21833-60012

9321914010

main93219-14010

9321914014

main93219-14014

9451100400

main94511-00400

9451100500

main94511-00500
