ALTERNATOR

0001 1 0002 1 0003 1 0004 1

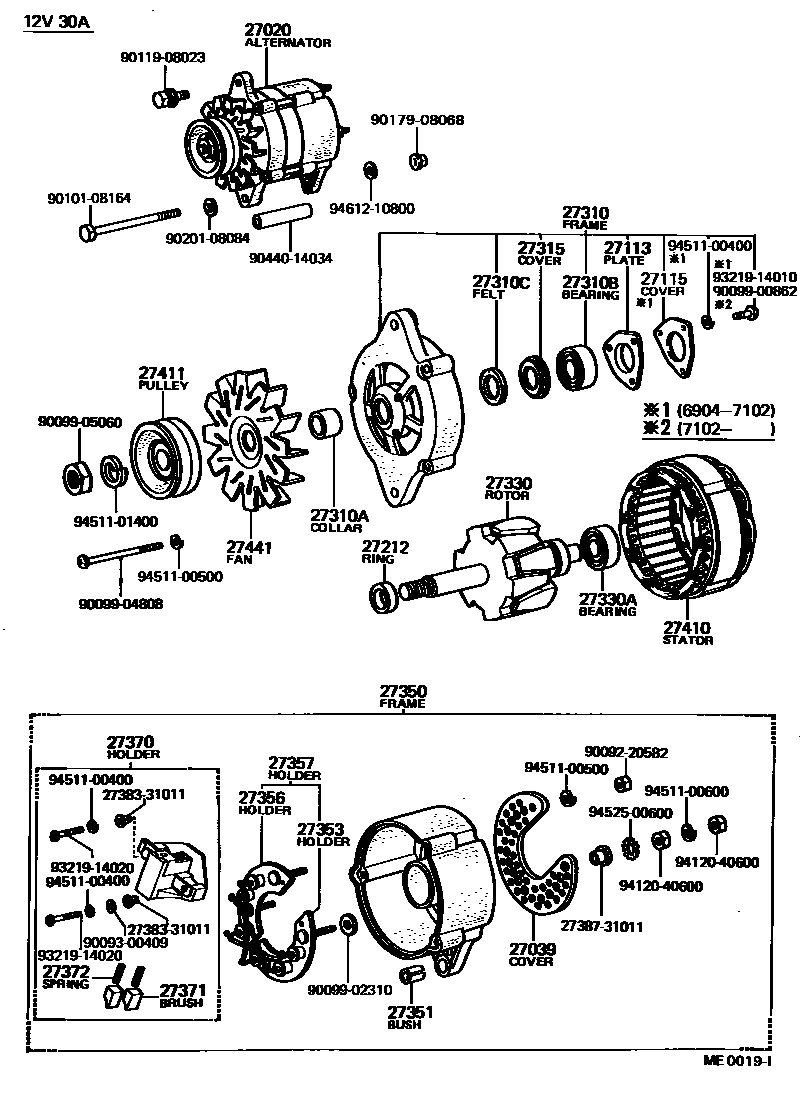

27020ALTERNATOR ASSY

main27020-12011i2K..KP3#197404-197507

12V 30A

main27020-12012i2K,3KH..KP3#197507-198101

12V 30A

main27020-12030i2K..KP36198208-198808

12V 30A,12V 30A

main27020-13030i2K..KP36198108-198208

12V 30A

main27020-13041i3KH..KP37198101-198108

12V 40A

main27020-22011i2K..KP3#196904-197001

12V 30A

main27020-22012i2K..KP3#197001-197107

12V 30A

main27020-24010i2K..KP3#197107-197112

12V 30A

main27020-24020i2K..KP3#197201-197404

12V 30A

main27020-24061i2K..KP30197405-197507

12V 40A

main27020-24062i2K..KP30,36..SED,V197512-197809

12V 40A

27039COVER, ALTERNATOR REAR END

main27039-11014i2K,3KH..KP3#197404-198101

12V 30A

main27039-18011i3KH..KP37198101-198108

12V 40A

main27039-22012i2K..KP3#197001-197404

12V 30A

main27039-26020i2K..KP30,36..SED,V197512-197809

12V 40A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27113-10011i2K..KP3#196904-197102

12V 30A

main27113-10012i2K,3KH..KP3#197102-198101

12V 30A

main27312-31011i2K..KP30197405-197512

12V 40A

27115COVER, ALTERNATOR FELT, OUTER

main27115-10011i2K..KP3#196904-197102

12V 30A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i2K..KP30197405-197512

12V 40A

main90099-19068i2K..KP36198101-198808

12V 30A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-13050i3KH..KP37198101-198108

12V 40A

main27310-15060i2K..KP36198108-198808

12V 30A

main27310-22012i2K..KP36198101-198108

12V 30A

main27310-24030i2K..KP30197405-197512

12V 40A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i2K..KP30,36..SED,V197512-197809

12V 40A

main27412-56040i2K..KP36198101-198808

12V 30A

main90099-19191i2K..KP3#196904-197507

12V 30A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10012i2K,3KH..KP3#197102-198101

12V 30A

main90099-10013i2K..KP30,36..SED,V197512-197809

12V 40A

main90099-10126i3KH..KP37198101-198108

12V 40A

main97100-06202i2K..KP3#196904-197102

12V 30A

27310CFELT(FOR ALTERNATOR DRIVE END FRAME)

main90099-02004i2K..KP30,36..SED,V197512-197809

12V 40A

main90099-02009×2i2K..KP36198101-198808

12V 30A

27315COVER, ALTERNATOR FELT, INNER NO.1

main27313-31011i2K..KP30,36..SED,V197512-197809

12V 40A

main27313-39010i2K,3KH..KP3#196904-198101

12V 30A

27330ROTOR ASSY, ALTERNATOR

main27330-22012i2K,3KH..KP3#196904-198101

12V 30A

main27330-33010i2K..KP30,36..SED,V197512-197809

12V 40A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10111i3KH..KP37198101-198108

12V 40A

main97110-06201i2K,3KH..KP3#196904-198101

12V 30A,40A

27350FRAME ASSY, RECTIFIER END

main27350-12011i2K..KP3#197404-197507

12V 30A

main27350-12012i2K,3KH..KP3#197507-198101

12V 30A

main27350-22012i2K..KP3#196904-197001

12V 30A

main27350-22013i2K..KP3#197001-197112

12V 30A

main27350-22022i2K..KP3#197201-197404

12V 30A

main27350-24061i2K..KP30197405-197507

12V 40A

main27350-24062i2K..KP30,36..SED,V197512-197809

12V 40A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-22010i2K..KP3#196904-197310

12V 30A

main27351-24020i2K,3KH..KP3#197310-198101

12V 30A

main27351-25010i2K..KP30197405-197512

12V 40A

main27351-38051i3KH..KP37198101-198108

12V 40A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-22012i2K..KP3#196904-197404

12V 30A

main27353-26020i2K..KP30197405-197512

12V 40A

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-22011i2K..KP3#196904-197404

12V 30A

main27356-26020i2K..KP30,36..SED,V197512-197809

12V 40A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-11014i2K,3KH..KP3#197404-198101

12V 30A

main27357-22012i2K..KP3#196904-197404

12V 30A

main27357-26020i2K..KP30,36..SED,V197512-197809

12V 40A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-22011i2K..KP3#196904-197404

12V 30A

main27370-24060i2K..KP30197405-197503

12V 40A

main27370-26020i2K..KP30197503-197507

12V 40A

main27370-31090i2K,3KH..KP3#197507-198101

12V 30A

main27370-40061i2K..KP3#197404-197507

12V 30A

main27370-45061i2K..KP30,36..SED,V197512-197809

12V 40A

27371BRUSH, ALTERNATOR

main27371-31011×2i2K,3KH..KP3#196904-198808

12V 30A,40A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i2K,3KH..KP3#196904-198808

12V 30A,40A

27410STATOR ASSY, ALTERNATOR

main27410-11014i2K,3KH..KP3#197404-198101

12V 30A

main27410-15030i3KH..KP37198101-198108

12V 40A

main27410-22010i2K..KP3#196904-197404

12V 30A

main27410-26020i2K..KP30197405-197512

12V 40A

27411PULLEY, ALTERNATOR

main27411-12010i2K..KP3#197404-197507

12V 30A

main27411-12012i2K,3KH..KP3#197507-198101

12V 30A

main27411-12030i2K..KP36198208-198808

12V 30A

main27411-13030i2K..KP36198108-198208

12V 30A,OD=70

main27411-22011i2K..KP3#196904-197107

12V 30A

main27411-24010i2K..KP3#197107-197404

12V 30A

main27411-26111i3KH..KP37198101-198108

12V 40A

main27411-31042i2K..KP30,36..SED,V197512-197809

12V 40A

27441FAN, ALTERNATOR

main27441-22010i2K..KP3#196904-197507

12V 30A

main27441-31090i2K,3KH..KP3#197507-198101

12V 30A

main27441-34030i2K..KP30197405-197512

12V 40A

2738331011WASHER, ALTERNATER TERMINAL INSULATOR, NO.1

main27383-31011

2738731011INSULATOR, TERMINAL

main27387-31011

9009220582

main90092-20582

9009300409

main90093-00409

9009900862

main90099-00862

9009902310

main90099-02310

9009904808

main90099-04808

9009905060

main90099-05060

9010108164

main90101-08164

9011908023

main90119-08023

9017908068

main90179-08068

9020108084

main90201-08084

9044014034

main90440-14034

9321914010

main93219-14010

9321914020

main93219-14020

9412040600

main94120-40600

9451100400

main94511-00400

9451100500

main94511-00500

9451100600

main94511-00600

9451101400

main94511-01400

9452500600

main94525-00600

9461210800

main94612-10800

45 parts on this diagram · 4 diagrams in section
