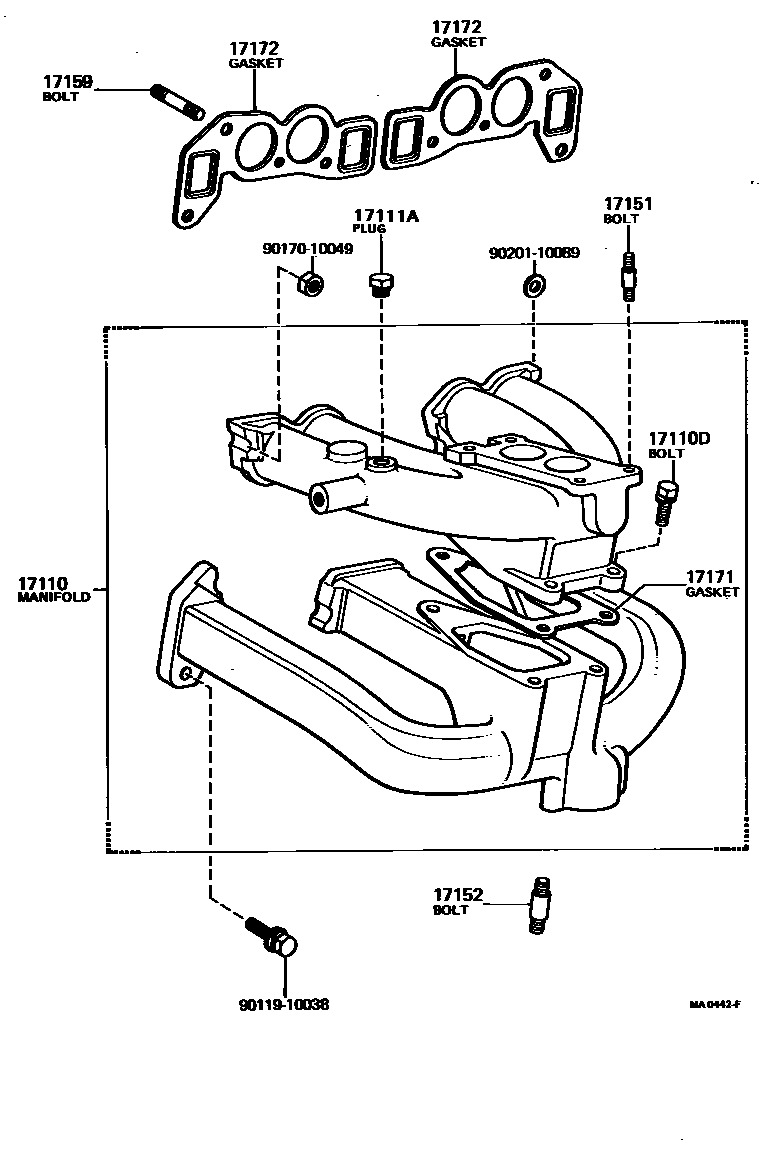

MANIFOLD
17110MANIFOLD ASSY
17110DBOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
17111APLUG, NO.1
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
L=39,S=13&13
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=41,S=14&21
L=41,S=14&21
L=37,S=20&13
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
L=42,S=11&11
17171GASKET, INTAKE TO EXHAUST MANIFOLD
17172GASKET, MANIFOLD TO CYLINDER HEAD
9011910038
main90119-10038
9017010049
main90170-10049
9020110089
main90201-10089
11 parts on this diagram · 2 diagrams in section
