WATER PUMP

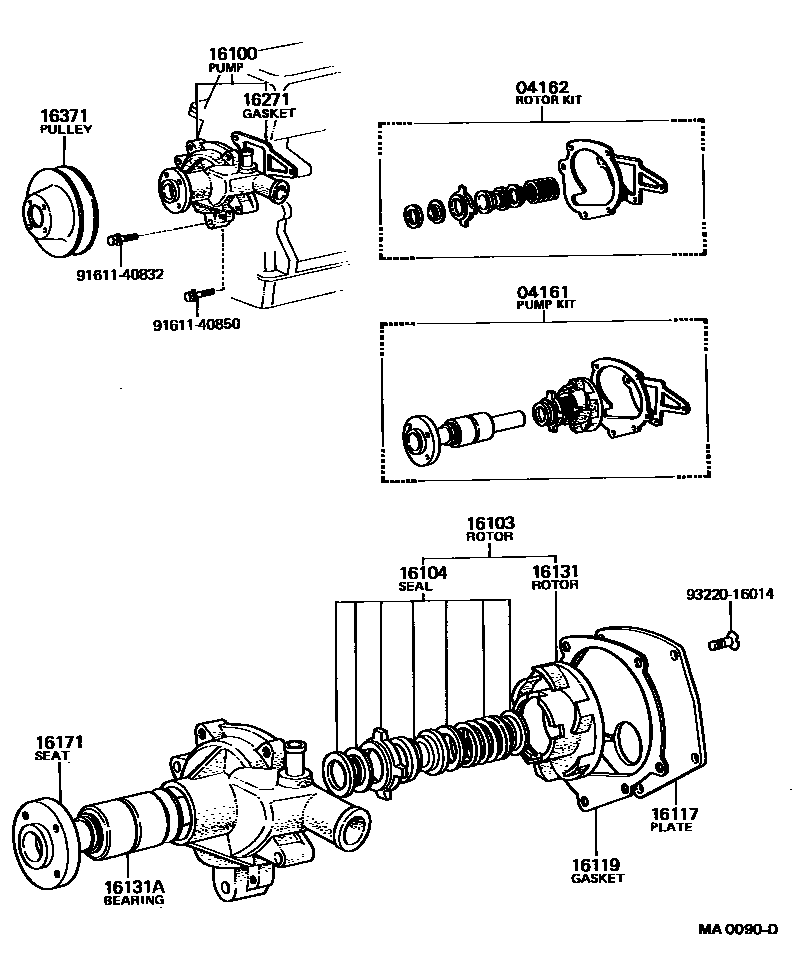

Parts diagram

04161PUMP KIT, WATER

main04161-12010i197201-197404

main04161-13010i197707-198106

main04161-13011i198106-198305

main04161-13012i198305-198808

main04161-22011i196904-197006

main04161-22012i197007-197112

main04161-24010i197404-197507

main04161-24011i197507-197707

04162ROTOR KIT, WATER PUMP

main04162-13010i197707-197910

main04162-13011i197910-198106

main04162-13012i198106-198305

main04162-22010i196904-197007

main04162-22011i197007-197507

main04162-22012i197507-197707

16100PUMP ASSY, ENGINE WATER

main16100-29016i196904-197404

main16100-29027i197404-197707

main16100-29028i197707-198305

main16100-29029i198305-198403

main16100-29065i198403-198808

16103ROTOR SUB-ASSY, WATER PUMP

main16103-22010i196904-197007

16104SEAL SET, WATER PUMP

main16104-15020i198311-198808

main16104-22010i197007-197507

main16104-30011i196904-197007

main16104-41110i197507-197908

main16104-41111i197908-198305

main16104-41112i198305-198311

16117PLATE, WATER PUMP

main16117-13010i197707-198305

main16117-13011i198305-198808

main16117-22011i196904-197707

16119GASKET, WATER PUMP BODY

main16124-22010i196904-198106

main16124-22011i198106-198305

main16124-22012i198305-198808

16131ROTOR, WATER PUMP

main16131-13010i197707-198808

main16131-22010i196904-196911

main16131-22011i196911-197507

main16131-22012i197507-197603

main16131-24030i197603-197707

16131ABEARING, WATER PUMP

main90369-30002i196904-197404

main90369-30063i197404-198808

16171SEAT, WATER PUMP PULLEY

main16171-22011i196904-197404

main16171-24030i197404-197507

main16171-24031i197507-198808

16271GASKET, WATER PUMP

main16271-13020i197812-198106

main16271-13021i198106-198808

main16271-22010i196904-197812

16371PULLEY, FAN

main16371-22010i196904-197404

main16371-24050i197404-198808

9161140832

main91611-40832

9161140850

main91611-40850

9322016014

main93220-16014

15 parts on this diagram · 2 diagrams in section
