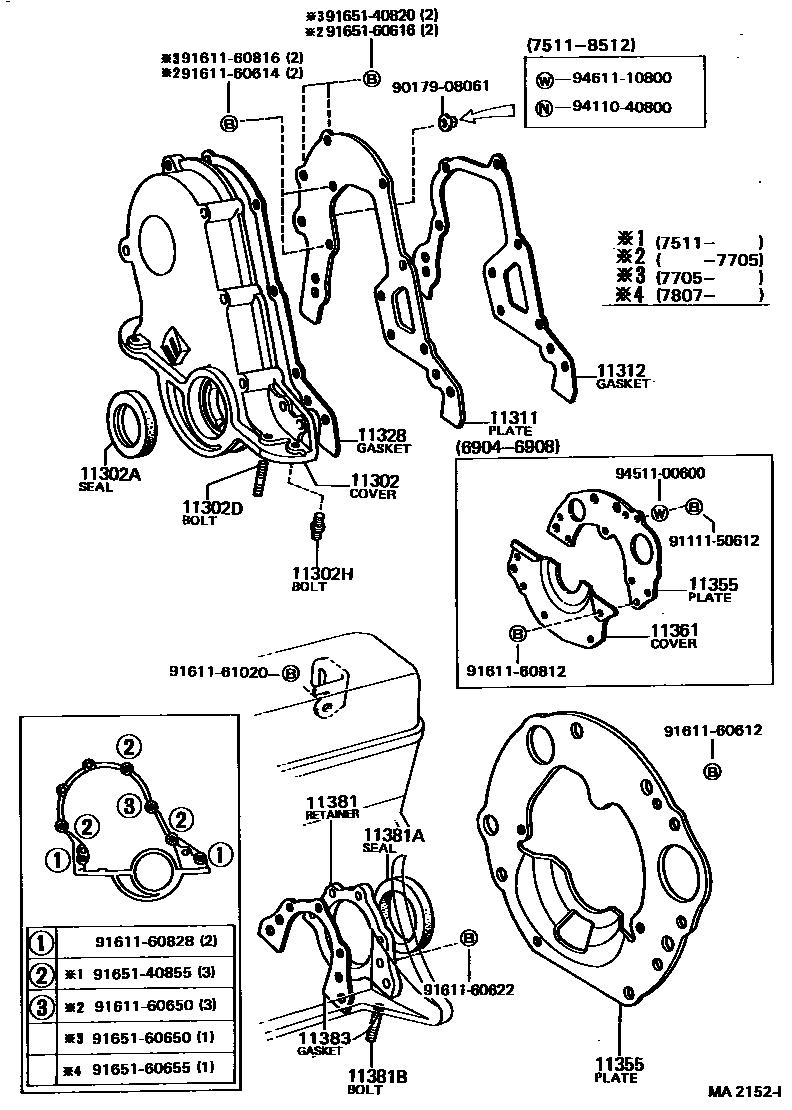

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-13010i2K,3KH..KP3#197705-197902

main11321-13030i2K,3KH..KP3#197902-198106

main11321-13040i2K,3KH..KP3#198106-198303

main11321-13041i2K..KP36198303-198509

main11321-13042i2K..KP36198509-198808

main11321-22010i2K..KP3#196904-197208

main11321-22011i2K..KP3#197208-197404

main11321-22012i2K..KP3#197404-197511

main11321-24031i2K..KP3#197511-197705

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38002i2K,3KH..KP3#197411-197802

HTC3 38.5 58 11

main90311-38013i2K,3KH..KP3#197802-198205

HTC 38.5 58 11

main90311-38022i2K..KP36198205-198808

HTC 38.5 58 8.5

main90311-38024i2K..KP3#196904-197411

TC3 38.5 58 11

11302DBOLT, STUD(FOR TIMING GEAR COVER)

main90116-06012×2i2K,3KH..KP3#197807-198808

L=26,S=12&14

main92131-40616×4i2K..KP3#196904-197106

L=28,S=10.5&10.5

main92132-40616×2i2K,3KH..KP3#197106-197802

L=28,S=10.5&10.5

main92132-60614×2i2K,3KH..KP3#197802-197807

L=26,S=12&14

11302HBOLT, STUD(FOR TIMING GEAR COVER)

main90116-06006×2i2K,3KH..KP3#197802-198808

L=26.4,S=12&12

11311PLATE, FRONT END

main11311-13010i2K,3KH..KP3#197705-198808

main11311-22010i2K..KP3#196904-197511

main11311-22011i2K..KP3#197511-197705

11312GASKET, FRONT END PLATE

main11312-13010i2K,3KH..KP3#197705-198105

main11312-13011i2K,3KH..KP3#198105-198512

main11312-13040i2K..KP36198512-198808

main11312-22010i2K..KP3#196904-197705

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-13010i2K,3KH..KP3#197705-198105

main11328-13011i2K,3KH..KP3#198105-198808

main11328-22010i2K..KP3#196904-197511

main11328-22011i2K..KP3#197511-197705

11355PLATE, REAR END

main11355-12010i2K..KP3#196904-196908

main11355-12011i2K..KP3#196908-197404

main11355-13010i2K,3KH..KP3#197708-198102

main11355-13011i2K,3KH..KP3#198102-198503

main11355-13012i2K..KP36198503-198808

main11355-24030i2K,3KH..KP3#197404-197708

11361COVER, FLYWHEEL HOUSING UNDER

main11361-22010i2K..KP3#196904-196908

11381RETAINER, ENGINE REAR OIL SEAL

main11381-13010i2K,3KH..KP3#197705-198303

main11381-13011i2K..KP36198303-198808

main11381-22011i2K..KP3#196904-197404

main11381-24010i2K..KP3#197404-197705

11381ASEAL, ENGINE REAR OIL

main90311-70001i2K,3KH..KP3#197705-198204

HTC 70 92 12

main90311-70004i2K..KP36198204-198808

HTC 70 92 8.5

main90311-70075i2K..KP3#196904-196912

TC3 70 92 12

main90311-70105i2K..KP3#196912-197008

TC 70 92 12

main90311-70120i2K..KP3#197008-197705

TC 70 92 12

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90116-06035×2i2K,3KH..KP3#196904-198808

L=23,S=9&12

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-13010i2K,3KH..KP3#197705-198808

main11383-22010i2K..KP3#196904-197705

9017908061

main90179-08061

9111150612

main91111-50612

9161160612

main91611-60612

9161160614

main91611-60614

9161160622

main91611-60622

9161160650

main91611-60650

9161160812

main91611-60812

9161160816

main91611-60816

9161160828

main91611-60828

9161161020

main91611-61020

9165140820

main91651-40820

9165140855

main91651-40855

9165160616

main91651-60616

9165160650

main91651-60650

9165160655

main91651-60655

9411040800

main94110-40800

9451100600

main94511-00600

9461110800

main94611-10800

31 parts on this diagram · 1 diagram in section
