Toyota YARIS (CHINA)110 — MIRROR

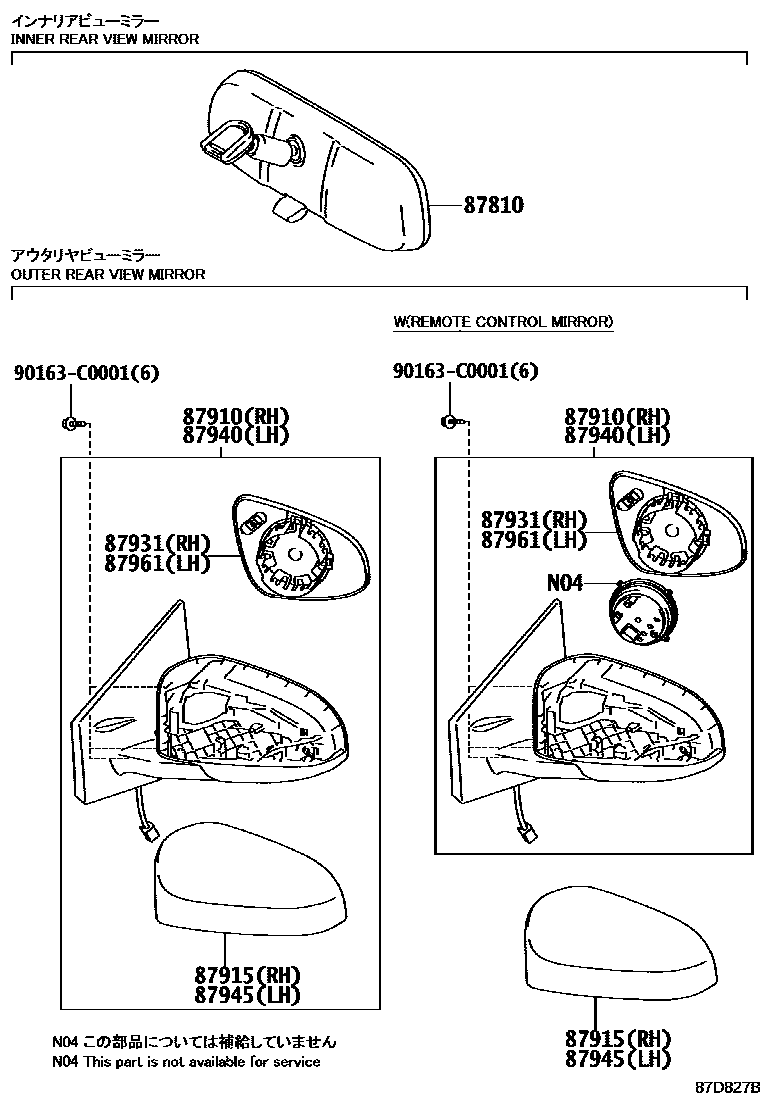

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
87810-0D070
87910MIRROR ASSY, OUTER REAR VIEW, RH
87910-0D770
87910-0D780
87915COVER, OUTER MIRROR, RH
87915-0D290
87915-0D928
87931OUTER MIRROR, RH
87931-0D770
87940MIRROR ASSY, OUTER REAR VIEW, LH
87940-0D760
87940-0D770
87945COVER, OUTER MIRROR, LH
87945-0D270
87945-0D926
87961MIRROR OUTER, LH
87961-0D760
90163C0001
90163-C0001

8 parts on this diagram · 1 diagram in section

MIRROR for Toyota YARIS (CHINA)110

This section contains 8 genuine Toyota parts for the MIRROR system of the Toyota YARIS (CHINA)110. Key components include: MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH, OUTER MIRROR, RH, MIRROR ASSY, OUTER REAR VIEW, LH.
