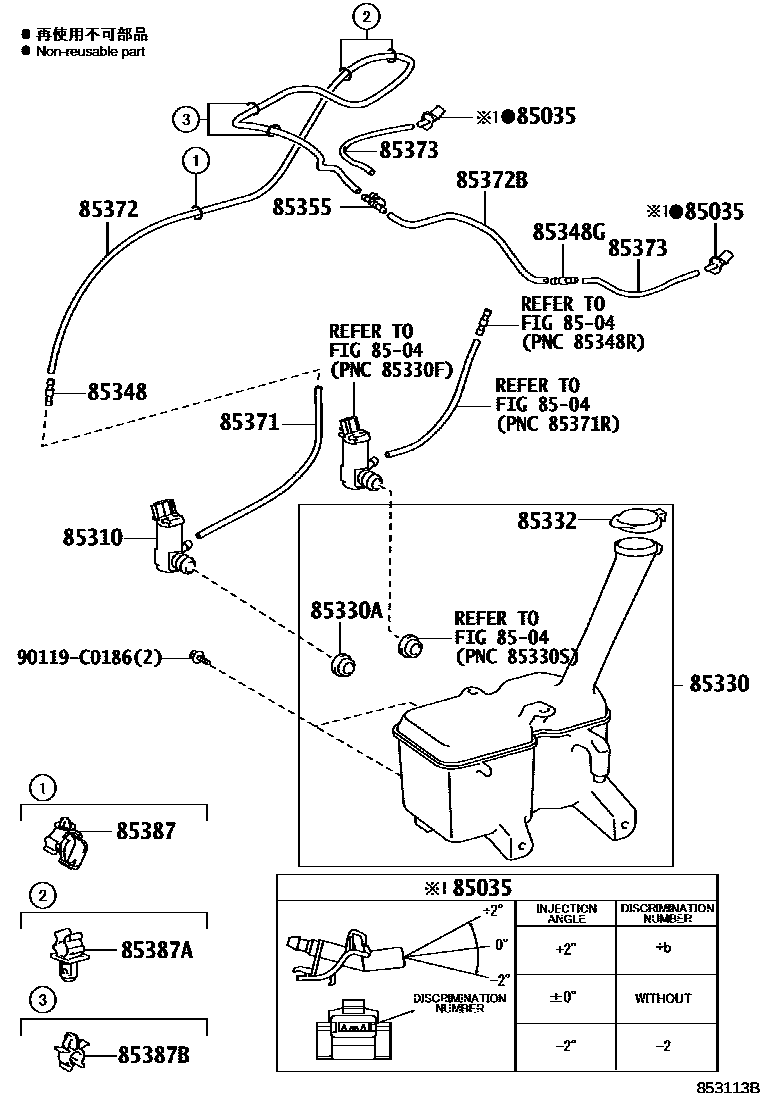

85035NOZZLE SUB-ASSY, WASHER

main85381-12400×2i201608-202111

ANGLE -2

main85381-30220×2i201312-201608

ANGLE +2

main85381-30230×2i201312-201608

ANGLE 0

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0D130i201312-201607

main85330-71020i201608-202111

85330JAR ASSY, WINDSHIELD WASHER

main85315-0D240i201312-201608

main85315-0D360i201608

main85315-0D370i201703-202111

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201608-202111

main90068-32006i201312-201608

85332CAP, WINDSHIELD WASHER JAR

main85316-0D200i201312-201608

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0E140i201312-201608

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-0E140i201312-201608

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201608-202111

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33136i201608-202111

L=270

main90068-33189i201312-201608

L=260

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-59116i201312-201608

L=1560

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-59106i201312-201608

L=305

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33192×2i201312-201608

L=230

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-0D110i201908-202111

main82711-3F230i201312-201608

85387ACLAMP, WASHER, NO.2

main85371-0D070×2i202011-202111

(L)

main85371-52110×2i201312-201608

85387BCLAMP, WASHER, NO.3

main90469-07011×2i201312-201608

main90469-C0015×2i201804

(L)

90119C0186

main90119-C0186
