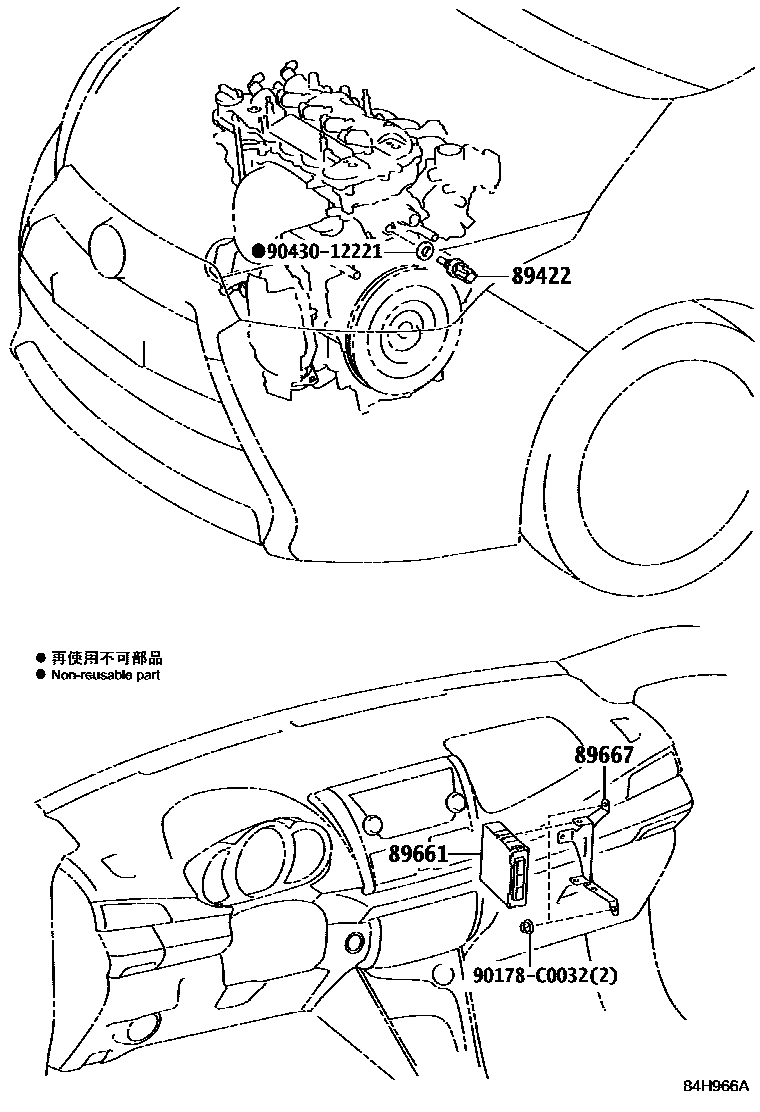

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-0D010iNSP15#201312-201608

(L)

main89422-33030iNSP15#201312-201608

(J)

89661COMPUTER, ENGINE CONTROL

main89661-0DJ50iNSP150..5F201312-201608

main89661-0DJ60iNSP150..4FC201312-201608

main89661-0DJ70iNSP151..5F201312-201608

main89661-0DJ80iNSP151..4FC201312-201608

main89661-0DS10supersedes 89661-0DS00iNSP151..5F202011-202111

main89661-0DV90iNSP150..5F201608-201911

main89661-0DW00iNSP150..CVT201608-201911

main89661-0DW10iNSP151..5F201608-201812

main89661-0DW20iNSP151..CVT201608-201812

main89661-0UD70iNSP151..4D..G;NSP151..CVT..N202011-202111

DENSO

main89661-0U500supersedes 89661-0U490iNSP151..CVT201812-202011

EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-0D200iNSP15#201312-201608

main89667-0D360iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

90178C0032

main90178-C0032

9043012221

main90430-12221

5 parts on this diagram · 2 diagrams in section
