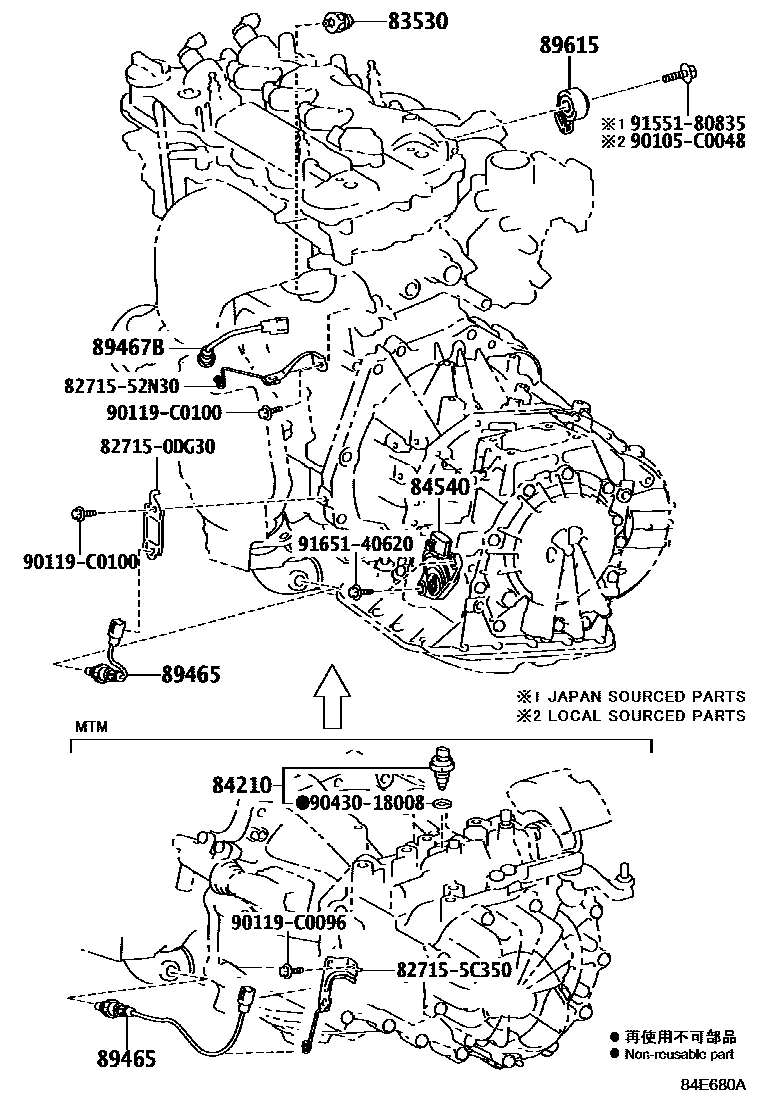

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 1/2 0006 1ENGINE ROOM 1/2 0007 1ENGINE ROOM 1/2 0008 1ENGINE ROOM 2/2 0009 1ENGINE ROOM 2/2 0010 1ENGINE ROOM 2/2 0011 1ENGINE ROOM 2/2 0012 1COWL 0013 1COWL 0014 1INSTRUMENT PANEL 0015 1SREERING 0016 1DOOR,ROOF,FLOOR & LUGGAGE 0017 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

DENSO

main83530-60020iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iNSP15#..5F201312-202111

84540SWITCH ASSY, NEUTRAL START

main84540-02020iNSP151..4D..G;NSP151..CVT..N201608-202111

main84540-52110iNSP15#..4FC201312-201608

89465SENSOR, OXYGEN

main89465-0D220iNSP15#..5F201312-201911

main89465-0D230iNSP151..CVT201312-201911

89467BSENSOR, AIR FUEL RATIO

main89467-0D040iNSP15#201312-201608

main89467-0D050iNSP150201608-201911

main89467-0D060iNSP151..N;NSP151..5F..R;NSP151..4D..G201812-202111

89615SENSOR, KNOCK CONTROL

main89615-20090iNSP15#201312-202111

827150DG30BRACKET,WIRING HARNESS CLAMP

main82715-0DG30

8271552N30BRACKET,WIRING HARNESS CLAMP

main82715-52N30

827155C350BRACKET,WIRING HARNESS CLAMP

main82715-5C350

90105C0048

main90105-C0048

90119C0096

main90119-C0096

90119C0100

main90119-C0100

9043018008

main90430-18008

9155180835

main91551-80835

9165140620

main91651-40620

15 parts on this diagram · 17 diagrams in section
