BATTERY & BATTERY CABLE

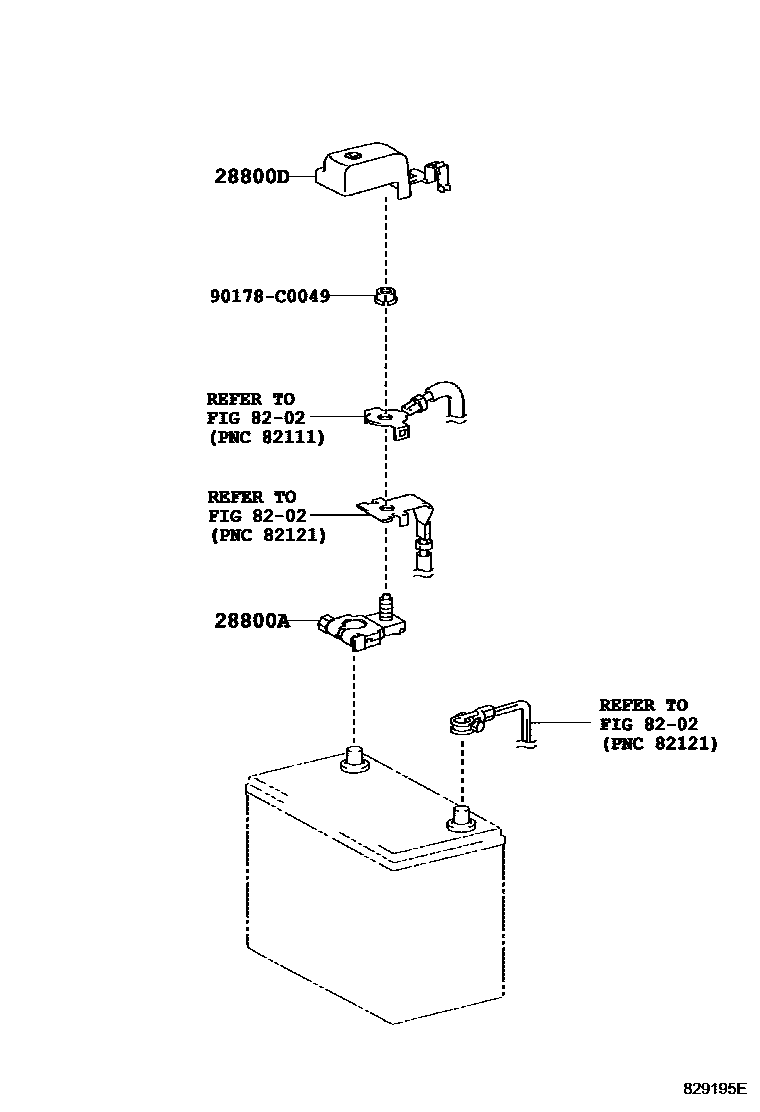

Parts diagram

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i201312-202111

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i201312-202111

8202WIRING & CLAMP

→ Go to FIG 82-02

90178C0049

main90178-C0049

4 parts on this diagram · 1 diagram in section
