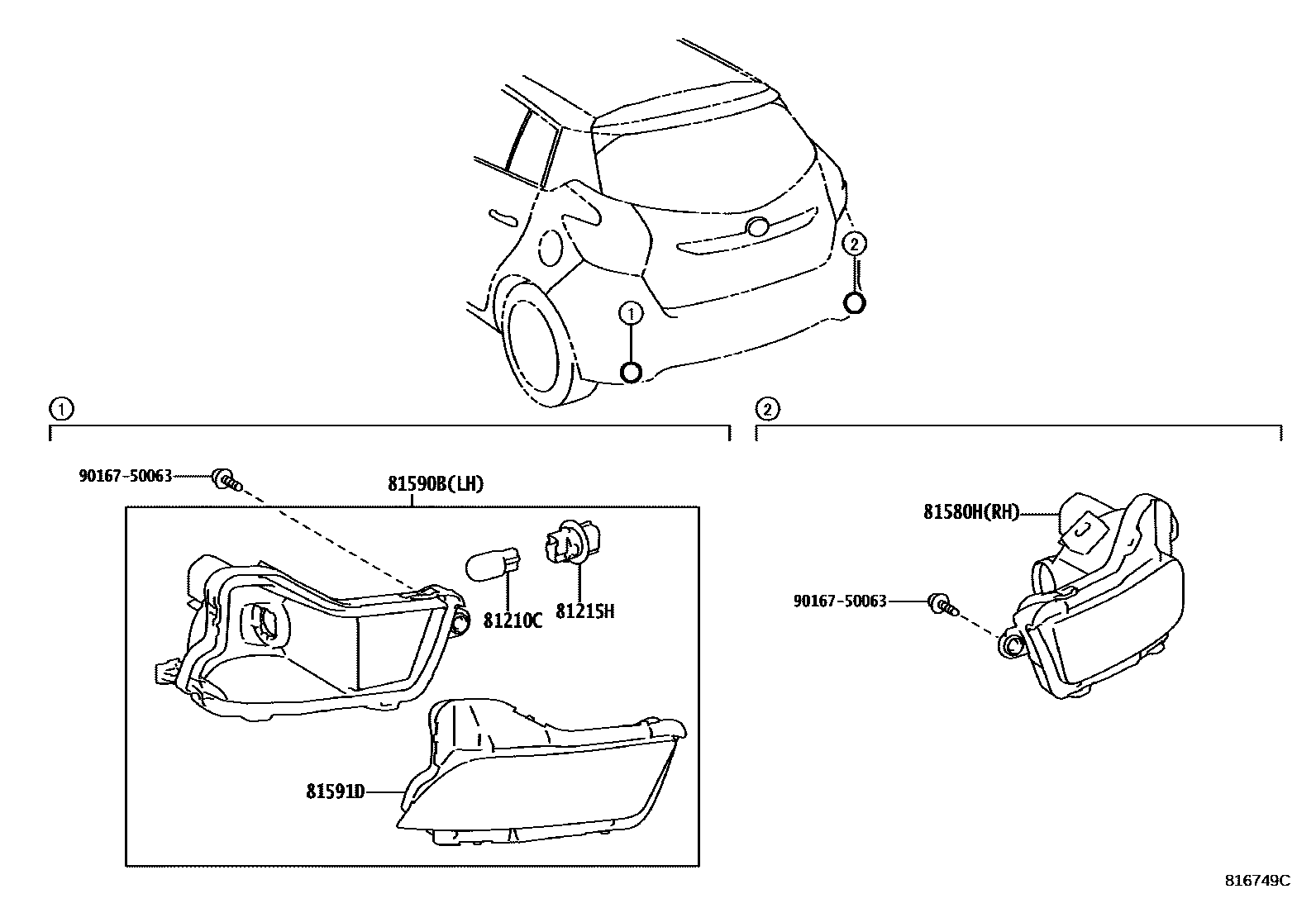

REAR FOG LAMP

0001 1 0002 1 0003 1

81210CBULB, REAR FOG LAMP

main90981-CD005iNSP15#201312-202111

12V 21W

81215HSOCKET, REAR FOG LAMP

main81555-0R020iNSP15#201312-202111

81580HLAMP ASSY, REAR FOG, RH

main81580-0D160iNSP15#201312-201608

main81580-0D370iNSP151..5D..N;NSP151..5D..5F..R201608-202111

81590BLAMP ASSY, REAR FOG, LH

main81590-0D160iNSP15#201312-201608

main81590-0D350iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

main81590-0D370iNSP151..5D..N;NSP151..5D..5F..R201608-202111

81591DLENS AND BODY, REAR FOG LAMP, LH

main81591-0D160iNSP15#201312-201608

main81591-0D350iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

main81591-0D370iNSP151..5D..N;NSP151..5D..5F..R201608-202111

9016750063

main90167-50063

6 parts on this diagram · 3 diagrams in section
