FOG LAMP

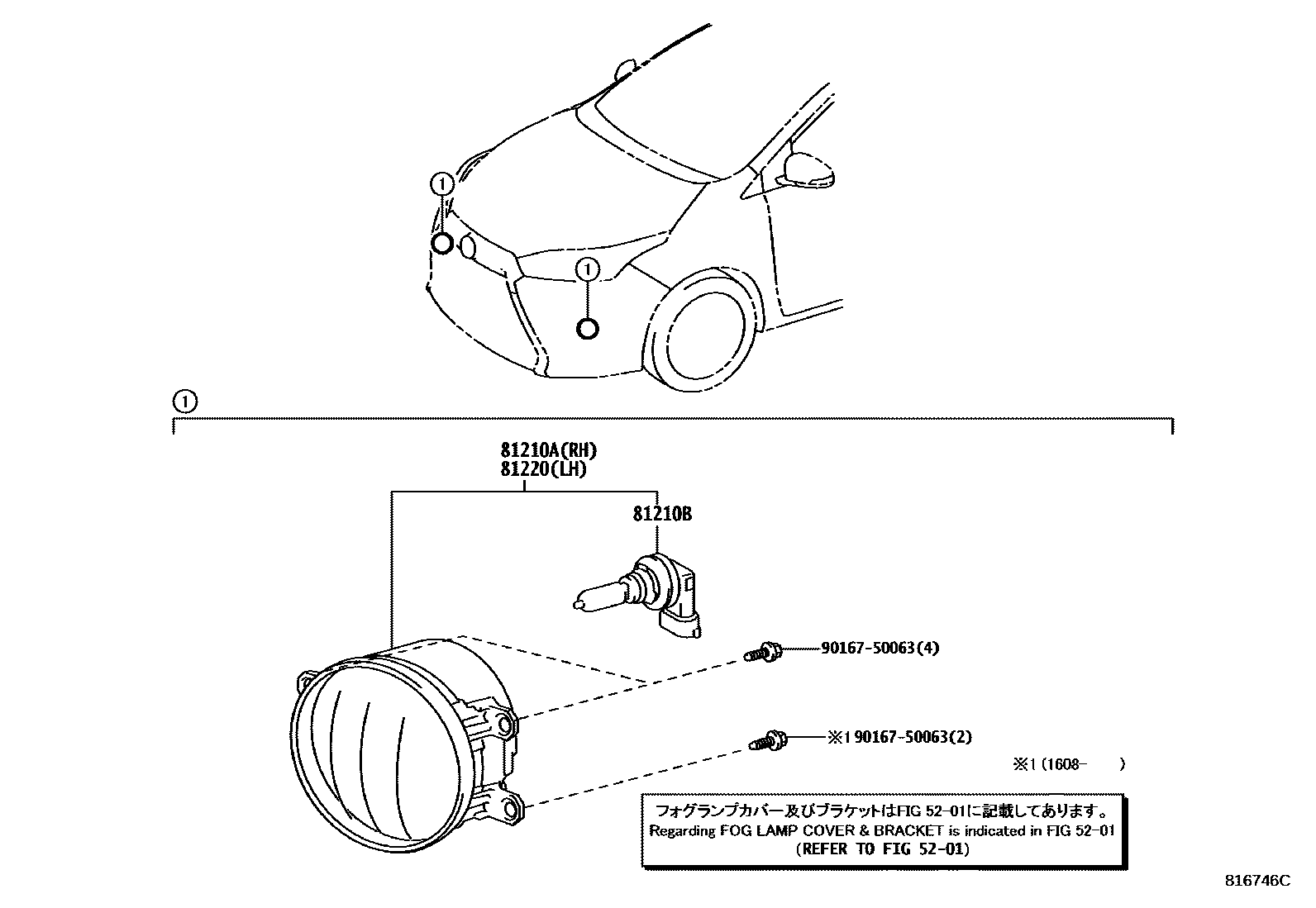

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-0D100i201312-201608

81210BBULB, FOG LAMP

main90981-CD003×2i201312-201608

12V 19W

81220LAMP ASSY, FOG, LH

main81220-0D100i201312-201608

9016750063

main90167-50063

5 parts on this diagram · 1 diagram in section
