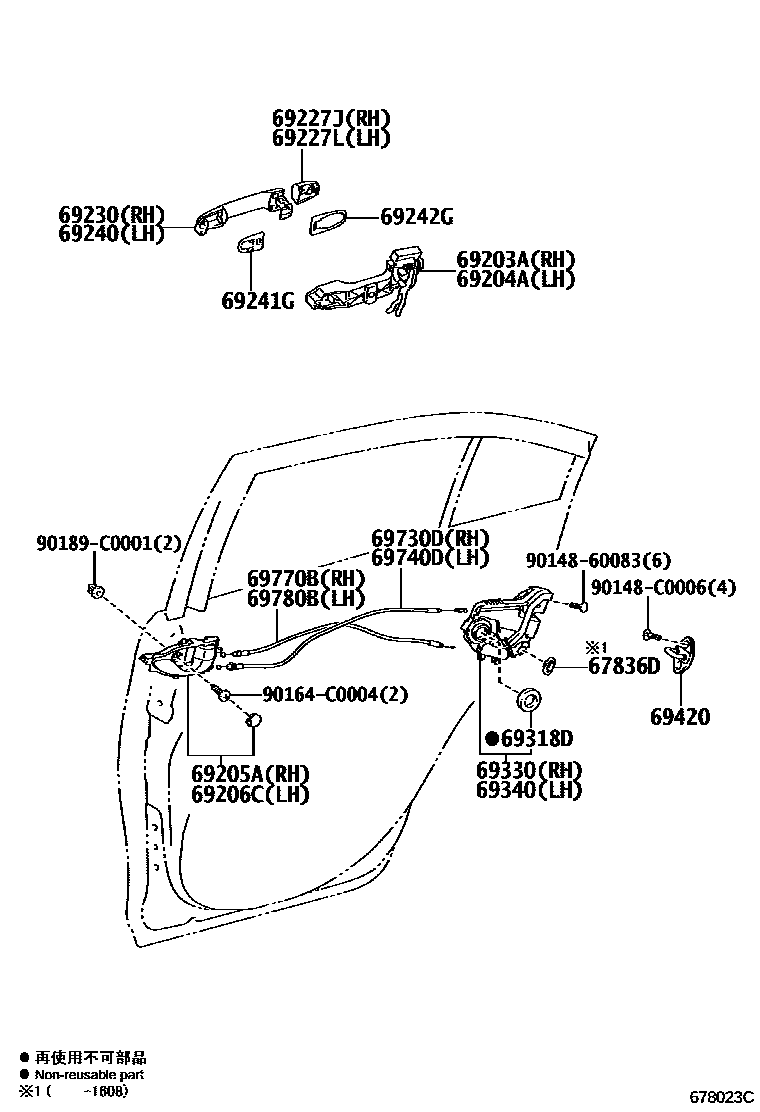

REAR DOOR LOCK & HANDLE

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-06020×2iNSP15#201312-201608

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0D110iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0D110iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-0D350-A0iNSP151..5F..R201608-202111

IVORY,TRIM0#

main69205-0D350-C0iNSP15#..N,R201312-201410

BLACK,TRIM2#

main69205-0D360-A0iNSP151..N;NSP151..4D..G201608-202111

IVORY,TRIM0#

main69205-0D360-C0iNSP151..G,R201312-201608

BLACK,TRIM2#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-0D350-A0iNSP150;NSP151..CVT..R201608

IVORY,TRIM0#

main69206-0D350-C0iNSP15#..N,R201312-201410

BLACK,TRIM2#

main69206-0D360-A0iNSP150;NSP151..N201410-201608

IVORY,TRIM0#

main69206-0D360-C0iNSP151..G,R201312-201608

BLACK,TRIM2#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-0D140-A0iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

SUPER WHITE 2,040

main69227-0D140-A1iNSP150..4D;NSP151..4D..5F;NSP151..CVT..(G,R);NSP151..4D..CVT..N201703-202011

WHITE PEARL CS.,070

main69227-0D140-B0iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

SILVER ME.,1D4

main69227-0D140-B1iNSP15#201312-201502

GRAY ME.,1G3

main69227-0D140-C0iNSP15#201608-202011

ATTITUDE BLACK MC.,218

main69227-0D140-C1iNSP151..N;NSP151..5F..R;NSP151..4D..G202011-202111

BLACK MC.,209

main69227-0D140-D0iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

RED M.M.,3R3

main69227-0D140-E0iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608-202112

ORANGE ME.,4R8

main69227-0D140-G0iNSP15#201312-201608

LUMINOUS GREEN M.M.,6W5

main69227-0D140-G1iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

CITRUS M.M.,6W2

main69227-0D140-J0iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608-202112

BLUE ME.,8V6

main69227-0D140-J1iNSP150..4D;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201703-202112

DK.BLUE M.M.,8W7

main69227-0D140-J2iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)202112

BLUE ME.,8X7

main69227-0D220iNSP150..5F201312-201608

BLACK PAINTED,ENTRY PACKAGE

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-0D140-A0iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

SUPER WHITE 2,040

main69227-0D140-A1iNSP150..4D;NSP151..4D..5F;NSP151..CVT..(G,R);NSP151..4D..CVT..N201703-202011

WHITE PEARL CS.,070

main69227-0D140-B0iNSP15#201312-201608

SILVER ME.,1D4

main69227-0D140-B1iNSP15#201312-201502

GRAY ME.,1G3

main69227-0D140-C0iNSP15#201608-202011

ATTITUDE BLACK MC.,218

main69227-0D140-C1iNSP151..N;NSP151..5F..R;NSP151..4D..G202011-202111

BLACK MC.,209

main69227-0D140-D0iNSP15#201312-201608

RED M.M.,3R3

main69227-0D140-E0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

ORANGE ME.,4R8

main69227-0D140-G0iNSP15#201312-201608

LUMINOUS GREEN M.M.,6W5

main69227-0D140-G1iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

CITRUS M.M.,6W2

main69227-0D140-J0iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608-202112

BLUE ME.,8V6

main69227-0D140-J1iNSP150..4D;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201703-202112

DK.BLUE M.M.,8W7

main69227-0D140-J2iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)202112

BLUE ME.,8X7

main69227-0D220iNSP150..5F201608-201911

BLACK PAINTED,WITH(ENTRY PACKAGE)

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-0D200-A0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

SUPER WHITE 2,040

main69211-0D200-A1iNSP150..4D;NSP151..4D..5F;NSP151..CVT..(G,R);NSP151..4D..CVT..N201703-202011

WHITE PEARL CS.,070

main69211-0D200-B0iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

SILVER ME.,1D4

main69211-0D200-B1iNSP15#201312-201502

GRAY ME.,1G3

main69211-0D200-C0iNSP15#201312-201608

ATTITUDE BLACK MC.,218

main69211-0D200-C1iNSP151..N;NSP151..5F..R;NSP151..4D..G202011-202111

BLACK MC.,209

main69211-0D200-D1iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

RED M.M.,3R3

main69211-0D200-E0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

ORANGE ME.,4R8

main69211-0D200-G0iNSP15#201312-201608

LUMINOUS GREEN M.M.,6W5

main69211-0D200-G1iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

CITRUS M.M.,6W2

main69211-0D200-J0iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608-202112

BLUE ME.,8V6

main69211-0D200-J1iNSP150..4D;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201703-202112

DK.BLUE M.M.,8W7

main69211-0D200-J2iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)202112

BLUE ME.,8X7

main69211-0D300iNSP150..5F201608-201911

NO PAINT REQ.,WITH(ENTRY PACKAGE)

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-0D200-A0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

SUPER WHITE 2,040

main69211-0D200-A1iNSP150..4D;NSP151..4D..5F;NSP151..CVT..(G,R);NSP151..4D..CVT..N201703-202011

WHITE PEARL CS.,070

main69211-0D200-B0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

SILVER ME.,1D4

main69211-0D200-B1iNSP15#201312-201502

GRAY ME.,1G3

main69211-0D200-C0iNSP15#201608-202011

ATTITUDE BLACK MC.,218

main69211-0D200-C1iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)202011

BLACK MC.,209

main69211-0D200-D1iNSP15#201312-201608

RED M.M.,3R3

main69211-0D200-E0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

ORANGE ME.,4R8

main69211-0D200-G0iNSP15#201312-201608

LUMINOUS GREEN M.M.,6W5

main69211-0D200-G1iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

CITRUS M.M.,6W2

main69211-0D200-J0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

BLUE ME.,8V6

main69211-0D200-J1iNSP150..4D;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201703-202112

DK.BLUE M.M.,8W7

main69211-0D200-J2iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)202112

BLUE ME.,8X7

main69211-0D300iNSP150..5F201312-201608

NO PAINT REQ.,ENTRY PACKAGE

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-0D100×2iNSP15#201312-201608

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-0D050×2iNSP15#201312-201608

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iNSP15#201312-201608

69330LOCK ASSY, REAR DOOR, RH

main69050-0D260iNSP15#..N,R201312-201608

main69050-0D270iNSP151..G201312-201608

69340LOCK ASSY, REAR DOOR, LH

main69060-0D260iNSP151..N;NSP151..5F..R201608-202111

main69060-0D270iNSP151..5D..G201608

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0D020×2iNSP15#201312-201608

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-0D180iNSP15#201312-201608

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-0D180iNSP15#201312-201608

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-0D140iNSP15#201312-201608

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-0D140iNSP15#201312-201608

9014860083

main90148-60083

90148C0006

main90148-C0006

90164C0004

main90164-C0004

90189C0001

main90189-C0001

23 parts on this diagram · 1 diagram in section
