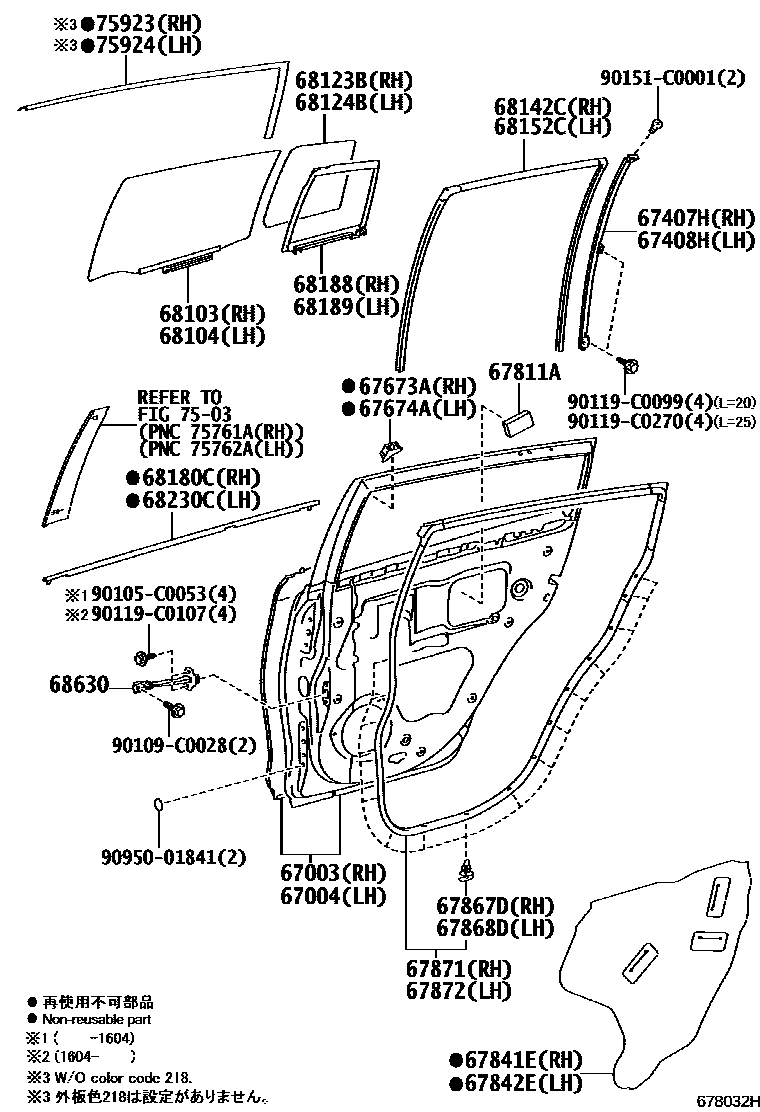

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0D250iNSP151..5D..N;NSP151..5D..5F..R201312-202111

main67003-0D390iNSP150..4D;NSP151..4D..CVT..R201703-202111

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0D250iNSP151..5D..N;NSP151..5D..5F..R201312-202111

main67004-0D390iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH

main67407-0D130iNSP151..5D..N;NSP151..5D..5F..R201312-202111

main67407-0D210iNSP150..4D;NSP151..4D..CVT..R201703-202111

67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH

main67408-0D130iNSP15#201312-202111

main67408-0D210iNSP150..4D;NSP151..4D..CVT..R201703-202111

67673AGARNISH, REAR DOOR FRAME, RH

main67673-0E030iNSP15#201312-202111

67674AGARNISH, REAR DOOR FRAME, LH

main67674-0E030iNSP15#201312-202111

67811APAD, REAR DOOR SILENCER

main67811-0D010iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201312-202111

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0D190iNSP151..5D..G201312-202111

main67841-0D200iNSP150;NSP151..CVT..R201312-202111

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0D060iNSP151..5D..G201312-202111

main67842-0D070iNSP15#..R201312-202111

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-0D030iNSP150..5D;NSP151..5D..CVT..(G,R)201312-202111

main67867-12150iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iNSP150..4D;NSP151..4D..CVT..R201703-202111

main67868-0D040iNSP150..5D;NSP151..5D..CVT..(G,R)201312-202111

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0D130iNSP150..5D;NSP151..5D..CVT..(G,R)201312-202111

main67871-0D210iNSP150..4D;NSP151..4D..CVT..R201703-202111

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0D130iNSP151..5D..N;NSP151..5D..5F..R201312-202111

main67872-0D210iNSP150..4D;NSP151..4D..CVT..R201703-202111

68103GLASS SUB-ASSY, REAR DOOR, RH

main68130-0D310iNSP15#201312-201608

*TEM,T=3.1,GREEN

main68130-0D310iNSP15#..5D201608-201809

main68130-0D420iNSP15#..4D201703-201809

main68130-0D640iNSP151..5D..N;NSP151..5D..5F..R201809-202111

main68130-0D650iNSP151..4D..(G,N);NSP151..4D..5F..R201809-202111

68104GLASS SUB-ASSY, REAR DOOR, LH

main68140-0D310iNSP15#..5D201608-201809

main68140-0D310iNSP15#201312-201608

*TEM,T=3.1,GREEN

main68140-0D420iNSP15#..4D201703-201809

main68140-0D640iNSP151..5D..N;NSP151..5D..5F..R201809-202111

main68140-0D650iNSP151..4D..(G,N);NSP151..4D..5F..R201809-202111

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0D220iNSP15#..5D201608-201809

main68123-0D220iNSP15#201312-201608

*TEM,T=3.1,GREEN

main68123-0D280iNSP15#..4D201703-201809

main68123-0D490iNSP151..5D..N;NSP151..5D..5F..R201809-202111

main68123-0D500iNSP151..4D..(G,N);NSP151..4D..5F..R201809-202111

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0D220iNSP15#201312-201608

*TEM,T=3.1,GREEN

main68124-0D220iNSP15#..5D201608-201809

main68124-0D280iNSP15#..4D201703-201809

main68124-0D490iNSP150..5D;NSP151..5D..CVT..(G,R)201809-202111

main68124-0D500iNSP150..4D;NSP151..4D..CVT..R201809-202111

68142CRUN, REAR DOOR GLASS, RH

main68142-0D160iNSP15#201312-202111

main68142-0D260iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

68152CRUN, REAR DOOR GLASS, LH

main68152-0D140iNSP15#201312-202111

main68152-0D220iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-0D190iNSP151..5D..N;NSP151..5D..5F..R201312-202111

main68180-0D310iNSP150..4D;NSP151..4D..CVT..R201703-202111

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0D130iNSP151..5D..N;NSP151..5D..5F..R201312-202111

main68188-0D160iNSP150..4D;NSP151..4D..CVT..R201703-202111

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0D130iNSP150..5D;NSP151..5D..CVT..(G,R)201312-202111

main68189-0D160iNSP150..4D;NSP151..4D..CVT..R201703-202111

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-0D190iNSP151..5D..N;NSP151..5D..5F..R201312-202111

main68230-0D310iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

68630CHECK ASSY, REAR DOOR

main68630-0D190iNSP15#201312-202111

7503SIDE MOULDING

→ Go to FIG 75-03

75923TAPE, BLACK OUT, NO.2 RH

main75923-0D130iNSP15#..5D201608-201904

HIGH CROSS PACKAGE

main75923-0D130iNSP15#201312-202111

main75923-0D130iNSP15#..5D201608-201904

BASE CROSS PACKAGE

main75923-0D130iNSP15#..5D201608-201904

BASE UP CROSS PACKAGE

main75923-0D250iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

75924TAPE, BLACK OUT, NO.2 LH

main75924-0D130iNSP15#..5D201608-201904

BASE CROSS PACKAGE

main75924-0D130iNSP15#..5D201608-201904

BASE UP CROSS PACKAGE

main75924-0D130iNSP151..5D..G201608-201904

HIGH CROSS PACKAGE

main75924-0D130iNSP151..5D..N;NSP151..5D..5F..R201312-202111

main75924-0D250iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

90105C0053

main90105-C0053

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90119C0270

main90119-C0270

90151C0001

main90151-C0001

9095001841

main90950-01841

34 parts on this diagram · 3 diagrams in section
