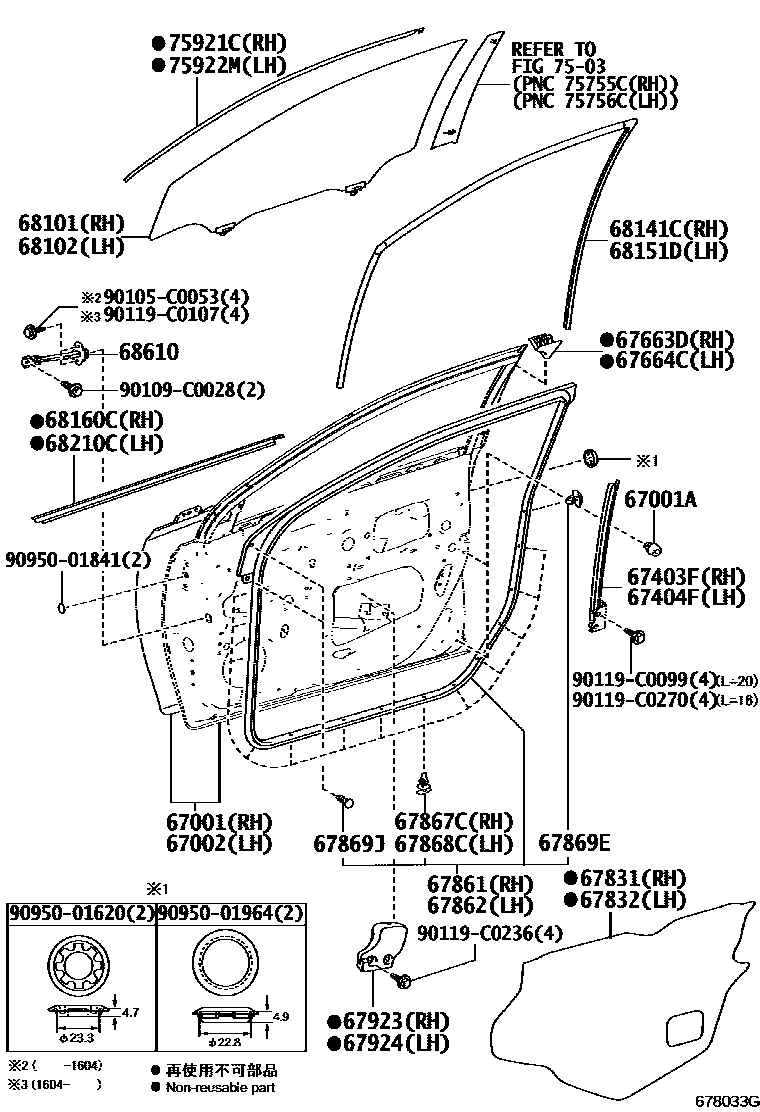

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0D901iNSP15#201312-201608

main67001-0D902iNSP151..5D..CVT..R201910

BASE UP CROSS PACKAGE

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iNSP15#201312-201606

main90541-C0003×4iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

(J)

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0D901iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

main67002-0D902iNSP151..5D..CVT..R201910

BASE UP CROSS PACKAGE

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0D140iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0D140iNSP15#201312-201608

67663DGARNISH, DOOR FRAME, RH

main67663-0E030iNSP15#201312-201608

67664CGARNISH, DOOR FRAME, LH

main67664-0E030iNSP15#201312-201608

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0D270iNSP15#201312-201608

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0D170iNSP15#201312-201608

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0D160iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0D160iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-0D070×14iNSP15#201312-201608

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-0D090×14iNSP15#201312-201608

67869ECLIP, FRONT DOOR WEATHERSTRIP

main90467-04034×2iNSP15#201312-201608

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×4iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-0D080iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-0D080iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-0D360iNSP15#201312-201608

*TEM,T=3.1,GREEN

main68110-0D530iNSP151..N;NSP151..5F..R;NSP151..4D..G201809-202111

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-0D360iNSP15#201312-201608

*TEM,T=3.1,GREEN

main68120-0D530iNSP151..N;NSP151..5F..R;NSP151..4D..G201809-202111

68141CRUN, FRONT DOOR GLASS, RH

main68141-0D200iNSP15#201312-201608

68151DRUN, FRONT DOOR GLASS, LH

main68151-0D190iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-0D210iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-0D210iNSP15#201312-201608

68610CHECK ASSY, FRONT DOOR

main68610-0D150×2iNSP15#201312-201401

main68610-0D151×2iNSP15#201402-201608

7503

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0D120iNSP15#201312-201608

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0D120iNSP151..5D..G201608-201904

BASE UP CROSS PACKAGE

90105C0053

main90105-C0053

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90119C0236

main90119-C0236

90119C0270

main90119-C0270

9095001620

main90950-01620

9095001841

main90950-01841

9095001964

main90950-01964

36 parts on this diagram · 3 diagrams in section
