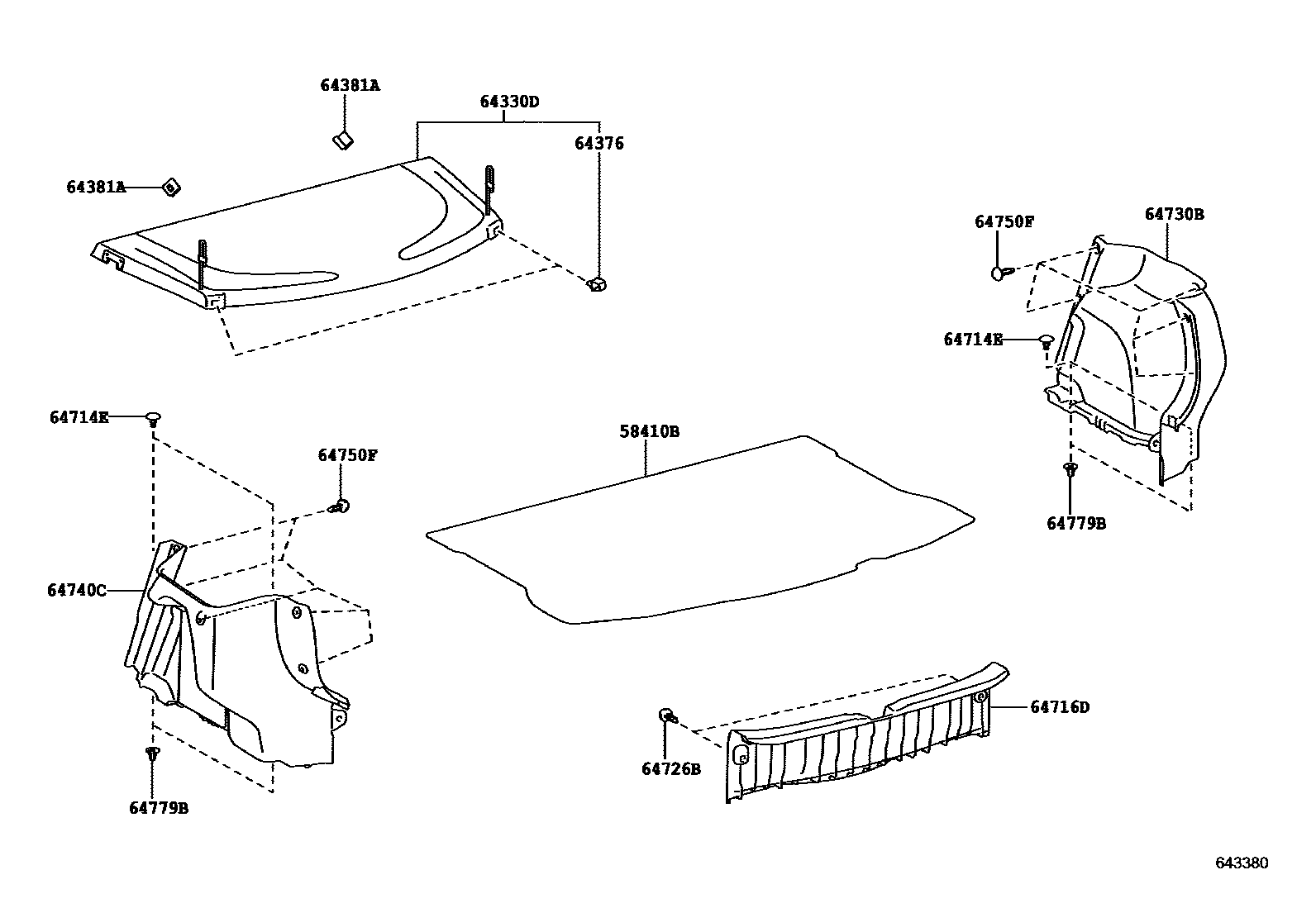

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58410BBOARD ASSY, DECK

main58410-0D081-C0iNSP15#201312-201608

BLACK,TRIM0#,2#

main58410-0D110-C0iNSP151..5D..N;NSP151..5D..5F..R201608-202111

BLACK,TRIM0#,2#

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-0D390-C1iNSP15#..G,N201312-201512

BLACK,TRIM0#,2#

main64330-0D391-C1supersedes 64330-0D391-C1iNSP15#..G,N201601-201608

BLACK,TRIM0#,2#

main64330-YL010-C0iNSP151..5D..G201911

HIGH CROSS PACKAGE,BLACK,TRIM2#

64376SPACER, PACKAGE TRAY TRIM, NO.2

main64376-12020×2iNSP15#..G,N201312-201608

64381AHANGER, PACKAGE TRAY TRIM

main64381-52010×2iNSP15#..G,N201312-201608

64714ECLIP(FOR DECK TRIM SIDE COVER)

main64726-0D070×4iNSP15#201312-201608

64716DCOVER, DECK TRIM, REAR

main64716-0D140iNSP15#201312-201608

64726BCLIP, DECK REAR TRIM

main90467-C0012-C0×2iNSP15#201312-201608

BLACK,TRIM0#,2#

main90467-C0012-C1×2iNSP151..5D..N;NSP151..5D..5F..R201610-202111

BLACK,TRIM0#,2#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0D380-C0iNSP15#201312-201608

BLACK,TRIM0#,2#

main64730-0D450-C0iNSP151..5D..N;NSP151..5D..5F..R201608-202111

BLACK,TRIM0#,2#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0D390-C0iNSP15#201312-201608

BLACK,TRIM0#,2#

main64740-0D450-C0iNSP151..5D..N;NSP151..5D..5F..R201608-202111

BLACK,TRIM0#,2#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-C0012-C0×10iNSP15#201312-201608

BLACK,TRIM0#,2#

main90467-C0012-C1×10iNSP151..5D..N;NSP151..5D..5F..R201610-202111

BLACK,TRIM0#,2#

64779BSTOPPER, SPARE WHEEL COVER

main64779-0D100×4iNSP15#201312-201608

11 parts on this diagram · 2 diagrams in section
