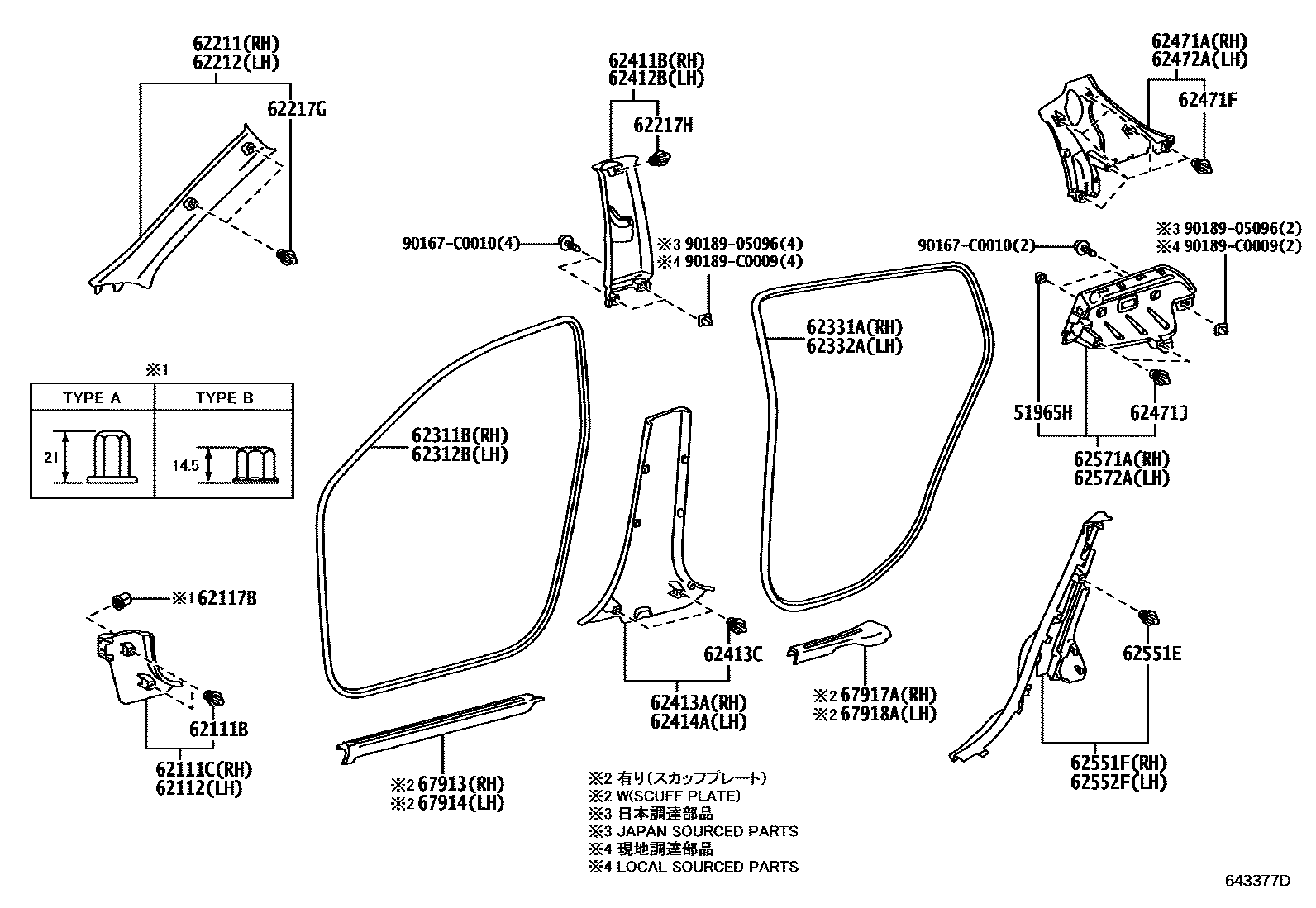

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

51965HHOOK, REAR

main51965-0D110-C0iNSP150..5D;NSP151..5D..CVT..(G,R)201312-202111

BLACK,TRIM0#,2#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iNSP151..N;NSP151..5F..R;NSP151..4D..G202110-202111

(J)

main90467-10161iNSP15#201312-202110

main90467-C0036iNSP151..N;NSP151..5F..R;NSP151..4D..G202110-202111

(L)

62111CBOARD, COWL SIDE TRIM, RH

main62111-0D200-A0iNSP15#201312-202111

IVORY,TRIM0#

main62111-0D200-C0iNSP15#201312-202111

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-0D240-A0iNSP15#201312-202111

IVORY,TRIM0#

main62112-0D240-C0iNSP15#201312-202111

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06158-C0iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201312-202111

BLACK,TYPE A:REFER ILLUST.

main90467-06193-C0iNSP15#201312-202111

BLACK,TYPE B:REFER ILLUST.

62211GARNISH, FRONT PILLAR, RH

main62211-0D400-A0iNSP15#201312-201608

IVORY,TRIM0#

main62211-0D400-B0iNSP15#201312-201608

GRAY,TRIM2#

main62211-0D570-A0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

IVORY,TRIM0#

main62211-0D570-B0iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608-202111

GRAY,TRIM2#

62212GARNISH, FRONT PILLAR, LH

main62212-0D400-A0iNSP15#201312-201608

IVORY,TRIM0#

main62212-0D400-B0iNSP15#201312-201608

GRAY,TRIM2#

main62212-0D570-A0iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608-202111

IVORY,TRIM0#

main62212-0D570-B0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

GRAY,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main90467-10161iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)202110-202111

(J)

main90467-10161iNSP15#201312-202110

main90467-C0036iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)202110-202111

(L)

62217HCLIP, CENTER PILLER GARNISH

main90467-10161iNSP15#201312-202110

main90467-10161iNSP151..N;NSP151..5F..R;NSP151..4D..G202110-202111

(J)

main90467-C0036iNSP151..N;NSP151..5F..R;NSP151..4D..G202110-202111

(L)

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0D200iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0D180iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0D120iNSP150..5D;NSP151..5D..CVT..(G,R)201312-202111

main62331-0D130iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0D050iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

main62332-0D110iNSP150..5D;NSP151..5D..CVT..(G,R)201312-202111

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-0D270-A0iNSP15#201312-201512

IVORY,TRIM0#

sub62411-0D271

main62411-0D270-B0iNSP15#201312-201512

GRAY,TRIM2#

sub62411-0D271

main62411-0D271-A0iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201601-202111

IVORY,TRIM0#

main62411-0D271-B0iNSP151..N;NSP151..5F..R;NSP151..4D..G201601-202111

GRAY,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-0D270-A0iNSP15#201312-201512

IVORY,TRIM0#

sub62412-0D271

main62412-0D270-B0iNSP15#201312-201512

GRAY,TRIM2#

sub62412-0D271

main62412-0D271-A0iNSP151..N;NSP151..5F..R;NSP151..4D..G201601-202111

IVORY,TRIM0#

main62412-0D271-B0iNSP151..N;NSP151..5F..R;NSP151..4D..G201601-202111

GRAY,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0D280-A0iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

IVORY,TRIM0#

main62413-0D280-C0iNSP15#201312-202111

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)202110-202111

(J)

main90467-10161iNSP15#201312-202110

main90467-C0036iNSP151..N;NSP151..5F..R;NSP151..4D..G202110-202111

(L)

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0D280-A0iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201312-202111

IVORY,TRIM0#

main62414-0D280-C0iNSP151..N;NSP151..5F..R;NSP151..4D..G201312-202111

BLACK,TRIM2#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-0D460-A0iNSP15#201312-202111

IVORY,TRIM0#

main62471-0D460-B0iNSP15#201312-202111

GRAY,TRIM2#

main62471-0D650-A0iNSP150..4D;NSP151..4D..CVT..R201703-202111

IVORY,TRIM0#

main62471-0D650-B0iNSP150..4D;NSP151..4D..CVT..R201703-202111

GRAY,TRIM2#

main62471-0D660-A0iNSP151..4D..G201703-202111

IVORY,TRIM0#

main62471-0D660-B0iNSP151..4D..G201912-202111

GRAY,TRIM2#

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-10161iNSP151..5D..CVT..(G,R)202110-202111

(J)

main90467-10161iNSP15#201312-202110

main90467-C0036iNSP150..4D;NSP151..4D..CVT..R201703-202111

main90467-C0036iNSP151..5D..N;NSP151..5D..5F..R202110-202111

(L)

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161iNSP151..5D..CVT..(G,R)202110-202111

(J)

main90467-10161iNSP15#201312-202110

main90467-C0035iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

BLUE

main90467-C0036iNSP151..5D..CVT..(G,R)202110-202111

(L)

62472AGARNISH, ROOF SIDE, INNER LH

main62472-0D430-A0iNSP150..4D;NSP151..4D..CVT..R201703-202111

IVORY,TRIM0#

main62472-0D430-B0iNSP150..4D;NSP151..4D..CVT..R201703-202111

GRAY,TRIM2#

main62472-0D500-A0iNSP15#201312-201512

IVORY,TRIM0#

sub62472-0D501

main62472-0D500-B0iNSP15#201312-201512

GRAY,TRIM2#

sub62472-0D501

main62472-0D501-A0iNSP15#201601-202111

IVORY,TRIM0#

main62472-0D501-B0iNSP15#201601-202111

GRAY,TRIM2#

main62472-0D710-A0iNSP151..4D..G201703-202111

IVORY,TRIM0#

main62472-0D710-B0iNSP151..4D..G201912-202111

GRAY,TRIM2#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-10188iNSP15#201312-202110

main90467-10188iNSP151..5D..N;NSP151..5D..5F..R202110-202111

(J)

main90467-C0034iNSP151..5D..N;NSP151..5D..5F..R202110-202111

(L)

main90467-C0034iNSP150..4D;NSP151..4D..CVT..R201703-202111

62551FGARNISH, REAR SEAT SIDE, RH

main62551-0D220-A0iNSP15#201312-201512

IVORY,TRIM0#

sub62551-0D221

main62551-0D220-C0iNSP15#201312-201512

BLACK,TRIM2#

sub62551-0D221

main62551-0D221-A0iNSP15#201601-202111

IVORY,TRIM0#

main62551-0D221-C0iNSP151..5D..N;NSP151..5D..5F..R201601-202111

BLACK,TRIM2#

main62551-0D350-A0iNSP151..4D..G201703-202111

IVORY,TRIM0#

main62551-0D350-C0iNSP151..4D..G201912-202111

BLACK,TRIM2#

main62551-0D360-A0iNSP151..4D..5F;NSP151..4D..CVT..N201703-202111

IVORY,TRIM0#

main62551-0D360-C0iNSP151..4D..5F;NSP151..4D..CVT..N201703-202111

BLACK,TRIM2#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-0D180-A0iNSP15#201312-201512

IVORY,TRIM0#

sub62552-0D181

main62552-0D180-C0iNSP15#201312-201512

BLACK,TRIM2#

sub62552-0D181

main62552-0D181-A0iNSP15#201601-202111

IVORY,TRIM0#

main62552-0D181-C0iNSP15#201601-202111

BLACK,TRIM2#

main62552-0D210-A0iNSP151..4D..G201703-202111

IVORY,TRIM0#

main62552-0D210-C0iNSP151..4D..G201912-202111

BLACK,TRIM2#

main62552-0D350-A0iNSP151..4D..5F;NSP151..4D..CVT..N201703-202111

IVORY,TRIM0#

main62552-0D350-C0iNSP151..4D..5F;NSP151..4D..CVT..N201703-202111

BLACK,TRIM2#

62571AGARNISH, ROOF SIDE, INNER LOWER RH

main62571-0D010-C0iNSP15#201312-201512

BLACK,TRIM0#,2#

sub62571-0D011

main62571-0D011-C0iNSP15#201601-202111

BLACK,TRIM0#,2#

62572AGARNISH, ROOF SIDE INNER LOWER LH

main62572-0D010-C0iNSP15#201312-201512

BLACK,TRIM0#,2#

sub62572-0D011

main62572-0D011-C0iNSP15#201601-202111

BLACK,TRIM0#,2#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-YY350-A0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

IVORY,TRIM0#

main67913-YY350-C0iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608-202111

BLACK,TRIM2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-YY070-A0iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608-202111

IVORY,TRIM0#

main67914-YY070-C0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

BLACK,TRIM2#

67917APLATE, REAR DOOR SCUFF, RH

main67917-YY190-A0iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608-202111

IVORY,TRIM0#

main67917-YY190-C0iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608-202111

BLACK,TRIM2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-YY140-A0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

IVORY,TRIM0#

main67918-YY140-C0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

BLACK,TRIM2#

90167C0010

main90167-C0010

9018905096

main90189-05096

90189C0009

main90189-C0009

34 parts on this diagram · 2 diagrams in section
