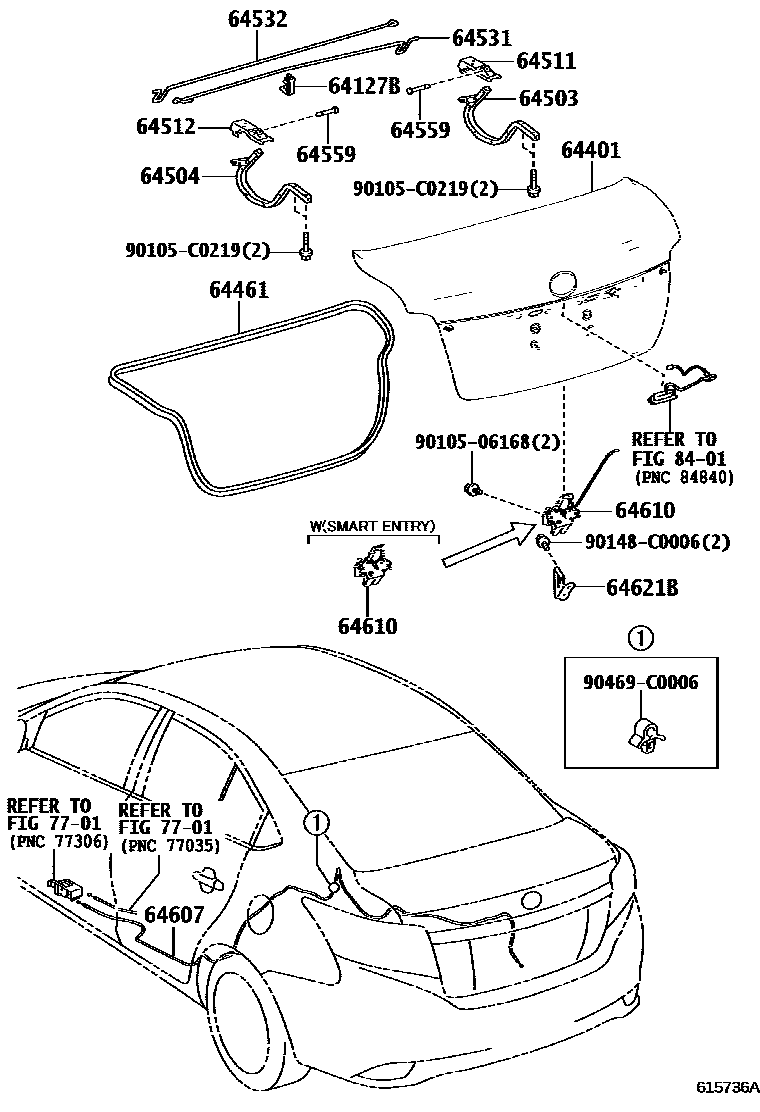

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-0D080iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-0D330iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-0D170iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-0D080iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-0D080iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-0D240iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64511-0D240iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-0D290iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-0D280iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

64559PIN, LUGGAGE DOOR HINGE

main64559-12040×2iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-0D330iNSP151..4D..(G,N);NSP151..4D..5F..R201703-202111

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-02111iNSP151..4D..G201703-202111

main64610-0D090iNSP150..4D;NSP151..4D..CVT..R201703

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06070iNSP150..4D;NSP151..4D..CVT..R201703

7701

8401

9010506168

main90105-06168

90105C0219

main90105-C0219

90148C0006

main90148-C0006

90469C0006

main90469-C0006

19 parts on this diagram · 1 diagram in section
