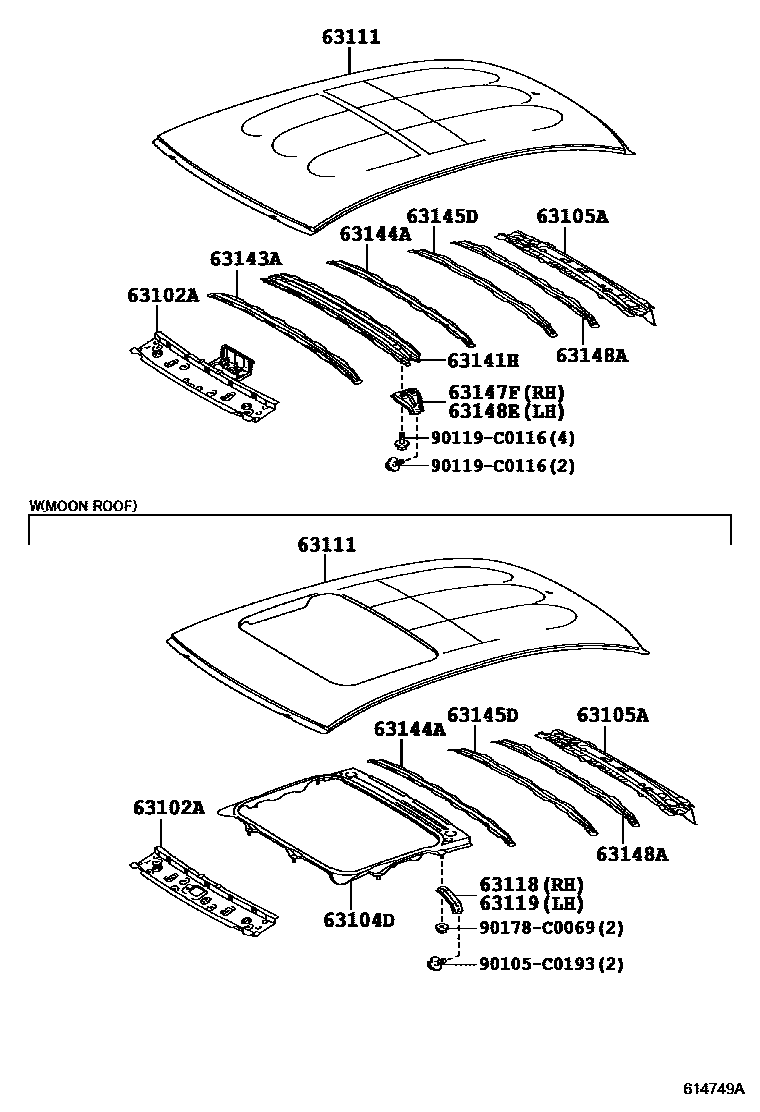

Toyota 110310 — ROOF PANEL & BACK WINDOW GLASS
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2
63105AFRAME SUB-ASSY, BACK DOOR OPENING
63111PANEL, ROOF
63118SUPPORT, ROOF PANEL, RH
63119SUPPORT, ROOF PANEL, LH
63141HREINFORCEMENT, ROOF PANEL, CENTER
63143AREINFORCEMENT, ROOF PANEL
63144AREINFORCEMENT, ROOF PANEL, NO.4
63145DBRACKET, ROOF REINFORCEMENT
63147FBRACKET, ROOF PANEL REINFORCEMENT, RH
63148AREINFORCEMENT, ROOF PANEL, NO.7
63148EBRACKET, ROOF PANEL REINFORCEMENT, LH
90105C0193
90119C0116
90178C0069
16 parts on this diagram · 5 diagrams in section
ROOF PANEL & BACK WINDOW GLASS for Toyota 110310
This section contains 51 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota 110310. Key components include: STOPPER, BACK WINDOW GLASS, NO.1, STOPPER, BACK WINDOW GLASS, NO.2, PANEL SUB-ASSY, WINDSHIELD HEADER, REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2, FRAME SUB-ASSY, BACK DOOR OPENING.
