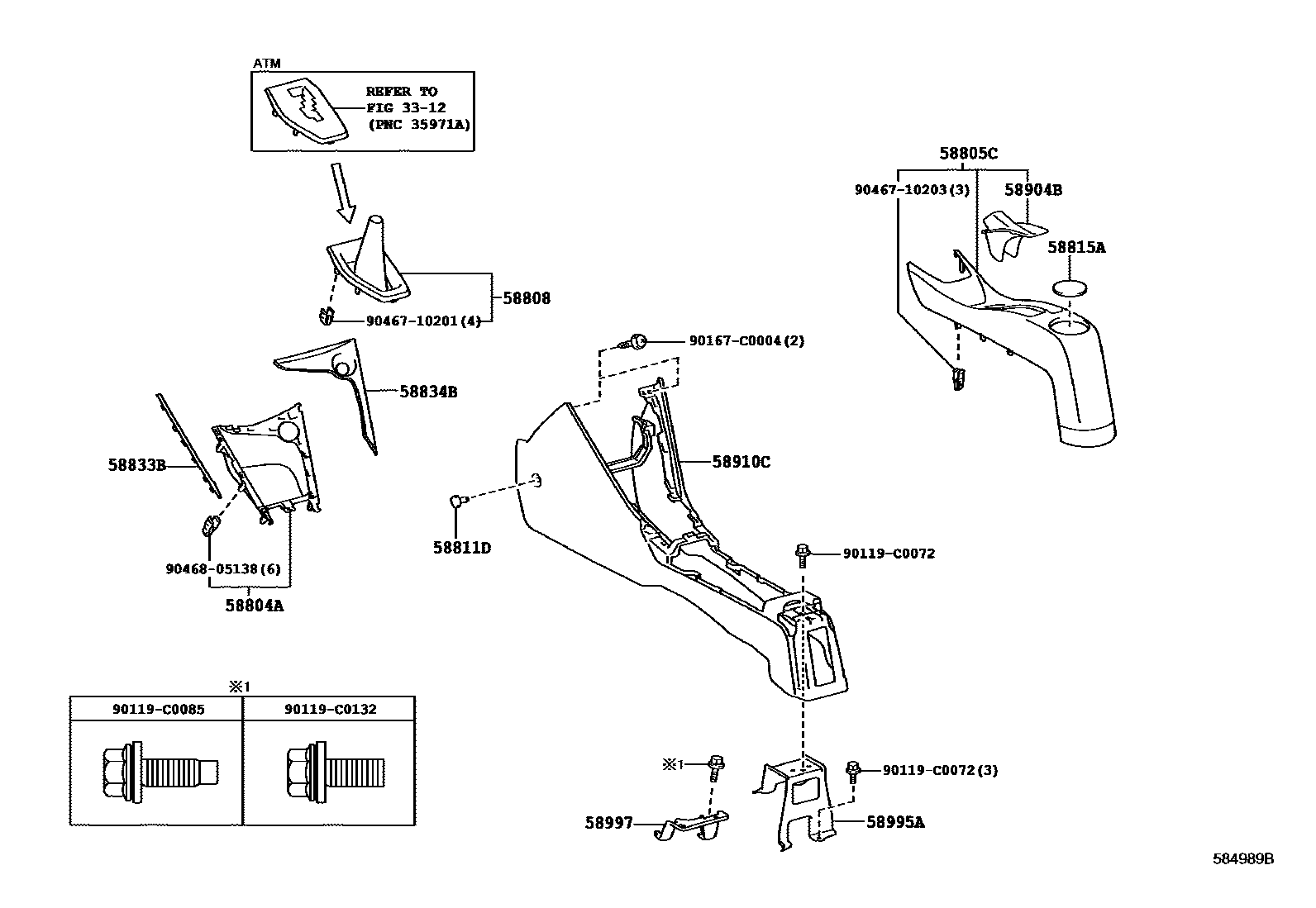

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

3312

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0D080iNSP15#201312-201608

main58804-0D260iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-0D050-A0iNSP15#201312-201512

IVORY,TRIM0#

sub58805-0D051

main58805-0D050-C0iNSP15#201312-201512

BLACK,TRIM2#

sub58805-0D051

main58805-0D051-A0iNSP15#201601-201608

IVORY,TRIM0#

main58805-0D051-C0iNSP15#201601-201608

BLACK,TRIM2#

main58805-0D190-C0iNSP150201608-201911

BLACK,TRIM0#,2#

main58805-YY050-C0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

BLACK,TRIM0#,2#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0D200-C0iNSP15#..5F201608-202111

BLACK,TRIM0#,2#

main58808-0D200-E0iNSP15#..5F201312-201608

DK. BROWN,TRIM0#,2#

58811DCLIP(FOR CONSOLE BOX)

main90467-05164-A7iNSP15#201312-201608

IVORY,TRIM0#

sub90467-05164

main90467-05164-C0iNSP15#201312-201608

BLACK,TRIM2#

sub90467-05164

main90467-05164-C0iNSP15#..N,R201608-201610

BLACK,TRIM0#,2#

sub90467-05164

main90467-05164-C0iNSP15#..N,R201608-201610

BLACK,TRIM0#

sub90467-05164

main90467-05164-C7iNSP151..N;NSP151..5F..R;NSP151..4D..G201610-202111

BLACK,TRIM0#,2#

sub90467-05164

58815ACARPET, CONSOLE BOX

main58815-0D160iNSP15#201312-201811

main58815-YY020iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-0D040iNSP15#201312-201608

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-0D020iNSP15#201312-201608

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-0D040-A0iNSP15#201312-201608

IVORY,TRIM0#

main58904-0D040-C0iNSP15#201312-201608

BLACK,TRIM2#

main58904-0D040-C0iNSP150201608-201911

BLACK,TRIM0#,2#

58910CBOX ASSY, CONSOLE, REAR

main58910-0D130-A0iNSP15#201312-201512

IVORY,TRIM0#

sub58910-0D131

main58910-0D130-C0iNSP15#201312-201512

BLACK,TRIM2#

sub58910-0D131

main58910-0D131-A0iNSP15#201601-201608

IVORY,TRIM0#

main58910-0D131-C0iNSP15#201601-201608

BLACK,TRIM2#

main58910-0D560-C0iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

BLACK,TRIM0#,2#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-0D090iNSP15#201312-202111

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-0D030iNSP15#201312-202111

90119C0072

main90119-C0072

90119C0085

main90119-C0085

90119C0132

main90119-C0132

90167C0004

main90167-C0004

9046710201

main90467-10201

9046710203

main90467-10203

9046805138

main90468-05138

19 parts on this diagram · 3 diagrams in section
