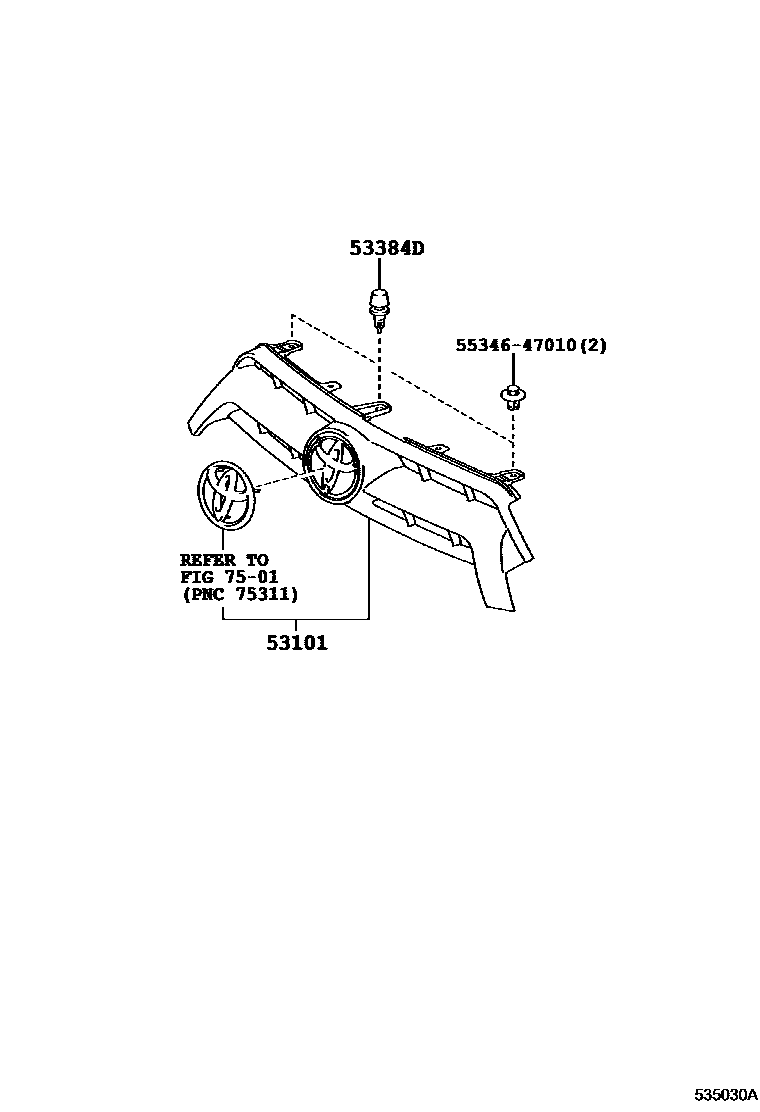

RADIATOR GRILLE

0001 1 0002 1 0003 1CROSS PACKAGE

53101GRILLE SUB-ASSY, RADIATOR

main53101-0D370iNSP151201312-201608

NO PAINT REQ.

main53101-0D380iNSP150201312-201608

NO PAINT REQ.

main53101-0D470iNSP150;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

main53101-YL020iNSP151..5D..CVT..R201910

BASE CROSS PACKAGE; BASE UP CROSS PACKAGE

53384DCUSHION, HOOD, CENTER

main53384-22070iNSP15#201312-201608

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

5534647010GARNISH, GLOVE COMPARTMENT SIDE, RH

main55346-47010

4 parts on this diagram · 3 diagrams in section
