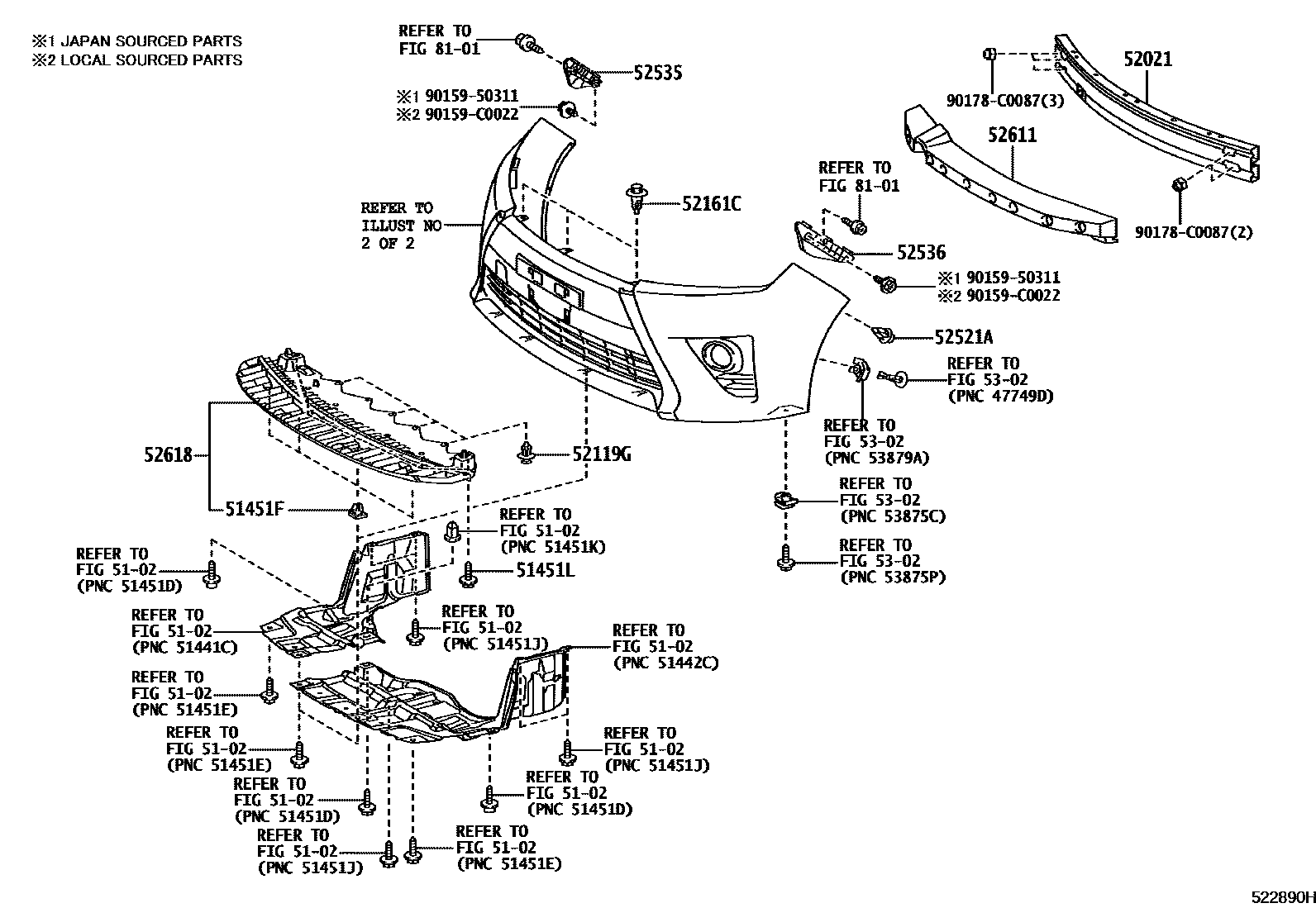

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1CROSS PACKAGE 0009 1CROSS PACKAGE

5102

51451FGROMMET, NO.1

main90189-06193×4iNSP15#201312-201607

main90189-C0006×4iNSP15#201607-201608

(L)

51451LBOLT, NO.1

main90119-C0183×5iNSP15#201312-201608

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0D130iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

52119GCLIP, NO.1

main90467-10216×4iNSP151..4D..G201608-201802

HIGH HB, SD PACKAGE

main90467-C0024×4iNSP150..5D;NSP151..5D..CVT..(G,R)201609

(L)

52161CPIECE, FRONT BUMPER

main52161-02040×3iNSP15#201506-201608

(L)

main52161-16010×3iNSP15#201312-201506

sub52161-0K040

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05170×2iNSP151..CVT..N201608-201802

BASE UP CROSS PACKAGE

main90467-C0032×2iNSP151..N;NSP151..5F..R;NSP151..4D..G201802-202111

(L)

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0D120iNSP15#201312-201608

main52535-0D310iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0D120iNSP15#201312-201608

main52536-0D310iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0D040iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

main52611-0D050iNSP15#201312-201608

main52611-YL010iNSP151..5D..CVT..R201910

BASE UP CROSS PACKAGE

52618ABSORBER, FRONT BUMPER, LOWER

main52618-0D060iNSP15#201312-201608

main52618-0D100iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

5302

8101

9015950311

main90159-50311

90159C0022

main90159-C0022

90178C0087

main90178-C0087

16 parts on this diagram · 8 diagrams in section
