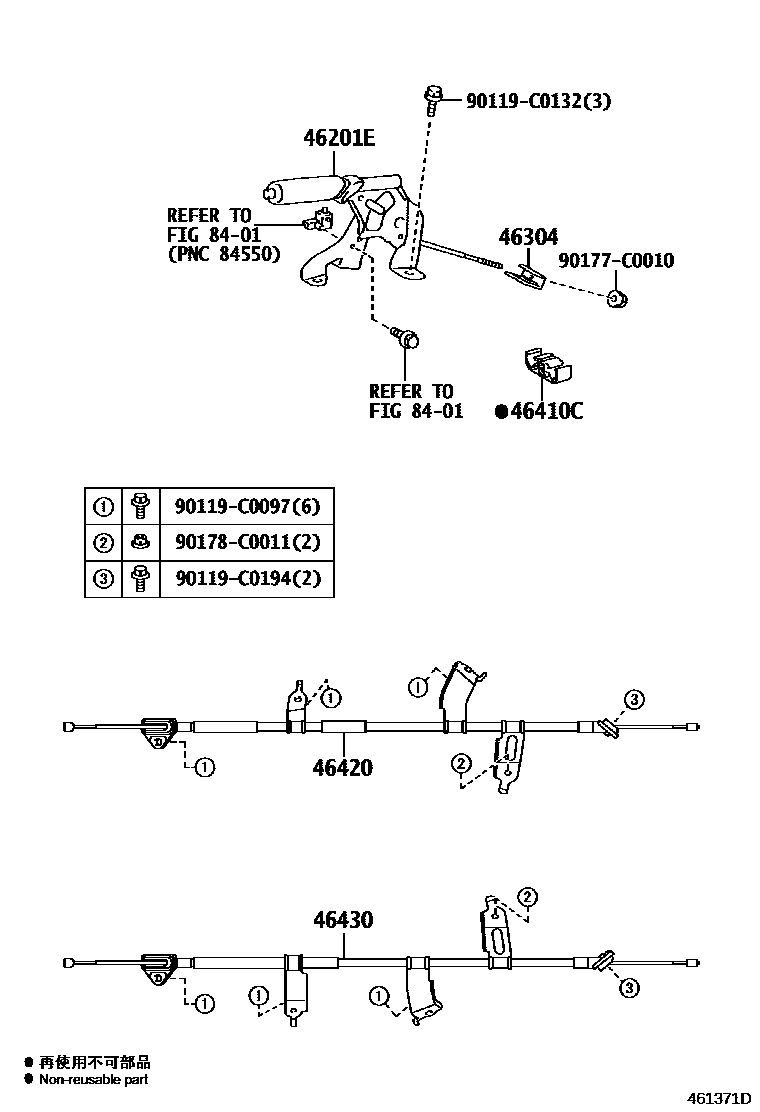

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0D290-A0iNSP15#201312-201410

IVORY,TRIM0#

main46201-0D290-C0iNSP151..5F..R201608-202111

BLACK,TRIM0#,2#

main46201-0D460-A0iNSP15#201410-201608

IVORY,TRIM0#

main46201-0D460-C0iNSP15#201410-201608

BLACK,TRIM2#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0D010iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-0D050iNSP15#201312-201608

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0D240iNSP15#201312-201608

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0D240iNSP15#201312-201608

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119C0097

main90119-C0097

90119C0132

main90119-C0132

90119C0194

main90119-C0194

90177C0010

main90177-C0010

90178C0011

main90178-C0011

11 parts on this diagram · 1 diagram in section
