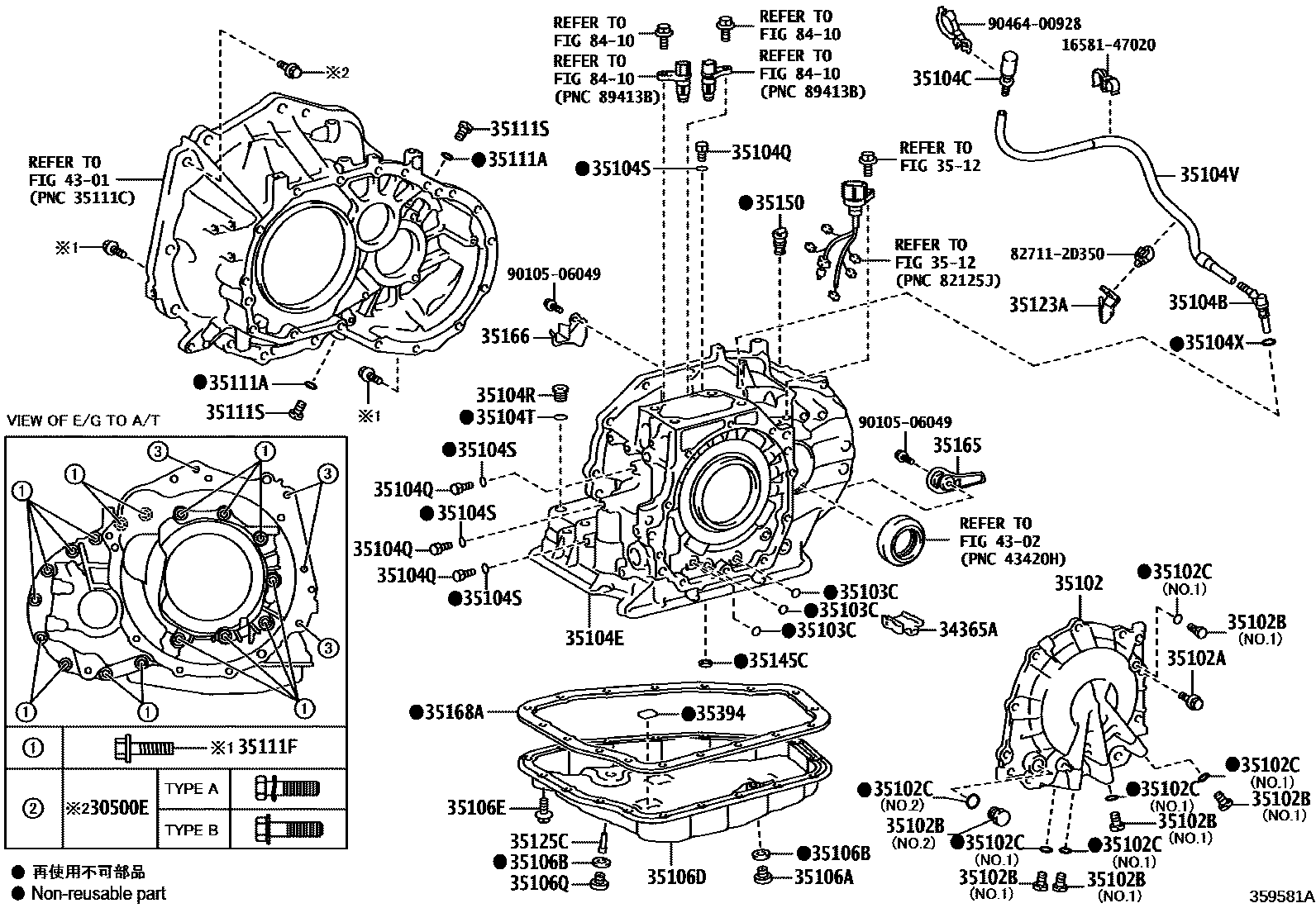

TRANSMISSION CASE & OIL PAN (ATM)
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*12X1.25PX45-30,TYPE B:REFER ILLUST.
*12-1.25PX45-30,(L),TYPE A:REF ILL.
*12-1.25PX45-30,(J),TYPE A:REF ILL.
34365ARETAINER, OUTER RACE
35102COVER SUB-ASSY, TRANSAXLE REAR
35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)
*8-1.25PX25-25
35102BPLUG(FOR TRANSAXLE REAR COVER)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35102CRING, O(FOR TRANSAXLE REAR COVER PULG)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35103CRING, O
35104BPLUG, BREATHER, NO.1 (ATM)
35104CPLUG, BREATHER, NO.2 (ATM)
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104RPLUG, NO.2 (FOR TRANSAXLE CASE)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)
35104VHOSE (FOR BREATHER PLUG)
35104XRING, O (FOR BREATHER PLUG)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106EBOLT (FOR TRANSAXLE OIL PAN)
35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)
35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)
35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
*8-1.25PX30-25
35111SPLUG (FOR TRANSMISSION HOUSING)
3512VALVE BODY & OIL STRAINER (ATM)
35123ASKIRT, TRANSMISSION BREATHER
35125CTUBE, TRANSMISSION OIL FILLER, NO.1
35145CGASKET, TRANSAXLE CASE
35150PLUG ASSY, TRANSMISSION CASE
35165PLATE, TRANSMISSION CASE, NO.1
35166PLATE, TRANSMISSION CASE, NO.3
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
4301FRONT AXLE HOUSING & DIFFERENTIAL
4302FRONT DRIVE SHAFT
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
1658147020CLAMP, HOSE(FOR WATER HOSE)
main16581-47020
827112D350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2D350
9010506049
main90105-06049
9046400928
main90464-00928
40 parts on this diagram · 1 diagram in section
