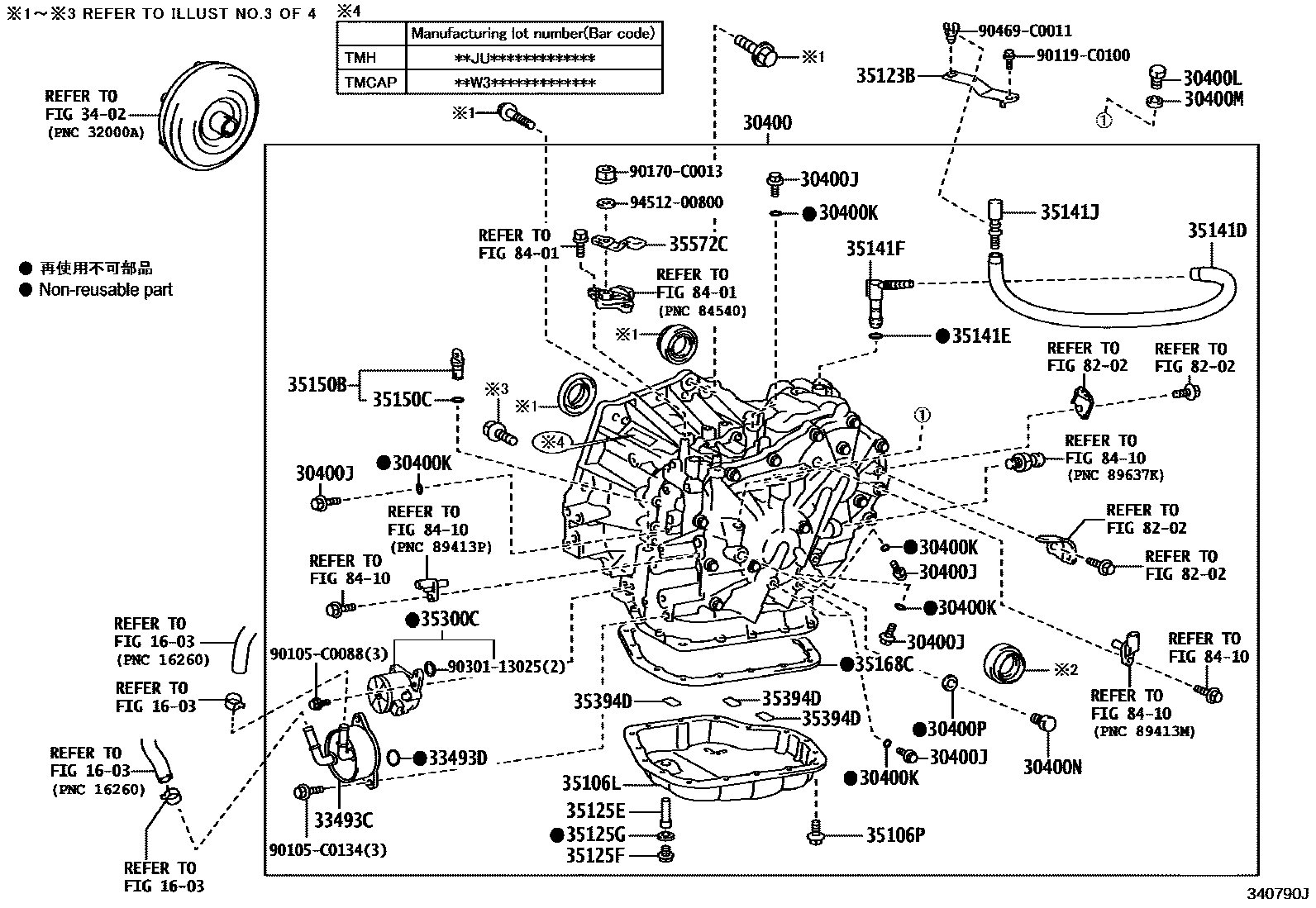

TRANSAXLE ASSY(CVT)

0001 1K312 0002 1K312 0003 1K312 0004 1K312

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-0D010iNSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

K312

sub30400-52680

main30400-0D020iNSP150..CVT201608-201911

K312

sub30400-52690

30400JPLUG, TRANSAXLE HOLE

main90341-08001×8iNSP151..4D..G;NSP151..CVT..N201608-202111

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-C0061×8iNSP151..4D..G;NSP151..CVT..N201608-202111

30400LPLUG , FILLER(CVT)

main90341-C0007iNSP15#..CVT201608-202011

(L)

30400MGASKET, FILLER PLUG(CVT)

main90430-12221iNSP151..4D..G;NSP151..CVT..N201608-202111

30400NPLUG, REFILL(CVT)

main90341-C0011iNSP150..CVT;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iNSP151..4D..G;NSP151..CVT..N201608-202111

33493CCOOLER, TRANSMISSION OIL

main33493-02010iNSP151..4D..G;NSP151..CVT..N201608-202111

33493DRING, O (FOR TRANSMISSION OIL COOLER)

main90301-C0028×2iNSP151..4D..G;NSP151..CVT..N201608-202111

3402

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-02020iNSP150..CVT201608-201807

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173×16iNSP151..4D..G;NSP151..CVT..N201608-202111

35123BSKIRT,TRANSMISSION BREATHER

main35123-0D050iNSP151..4D..G;NSP151..CVT..N201608-202111

35125ETUBE, OVERFLOW(CVT)

main35125-02160iNSP151..4D..G;NSP151..CVT..N201608-202111

35125FPLUG, OVERFLOW(CVT)

main90341-12034iNSP151..4D..G;NSP151..CVT..N201608-202111

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iNSP151..4D..G;NSP151..CVT..N201608-202111

35141DHOSE(FOR BREATHER PLUG)

main35121-0D020iNSP151..4D..G;NSP151..CVT..N201608-202111

35141ERING, O(FOR BREATHER PLUG)

main90301-C0060iNSP151..4D..G;NSP151..CVT..N201608-202111

35141FPLUG, BREATHER, NO.1(CVT)

main90930-C3019iNSP151..4D..G;NSP151..CVT..N201608-202111

35141JPLUG, BREATHER, NO.2(CVT)

main90930-C3022iNSP151..4D..G;NSP151..CVT..N201608-202111

35150BPLUG ASSY, TRANSMISSION CASE

main35150-02010iNSP151..4D..G;NSP151..CVT..N201608-202111

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-C0056iNSP15#..CVT201608-202011

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-02020iNSP151..4D..G;NSP151..CVT..N201608-202111

35300CPUMP ASSY, OIL W/MOTOR

main35300-12011iNSP151..4D..G;NSP151..CVT..N201608-202111

35394DMAGNET, OIL CLEANER(CVT)

main35394-02010×3iNSP151..4D..G;NSP151..CVT..N201608-202111

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12160iNSP150..CVT;NSP151..4D..CVT..R;NSP151..5D..CVT..(G,R)201608

8202

8401

8410

90105C0088

main90105-C0088

90105C0134

main90105-C0134

90119C0100

main90119-C0100

90170C0013

main90170-C0013

9030113025

main90301-13025

90469C0011

main90469-C0011

9451200800

main94512-00800

37 parts on this diagram · 4 diagrams in section
