TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

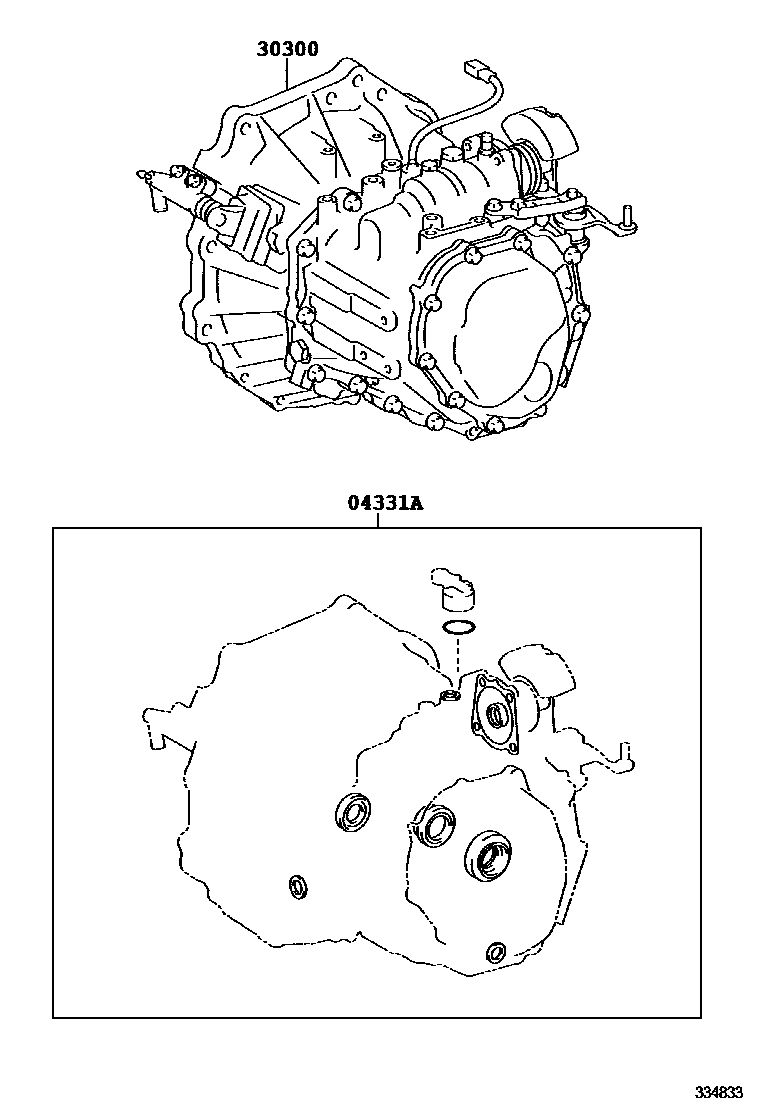

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-02101i201312-201608

main04331-02102i201608-202111

30300TRANSAXLE ASSY, MANUAL

main30300-0D260i201312-201608

C51

main30300-0D270i201312-201608

C50

main30300-0D430i201608-201911

C51

main30300-0D440i201608-202111

C50

2 parts on this diagram · 1 diagram in section
