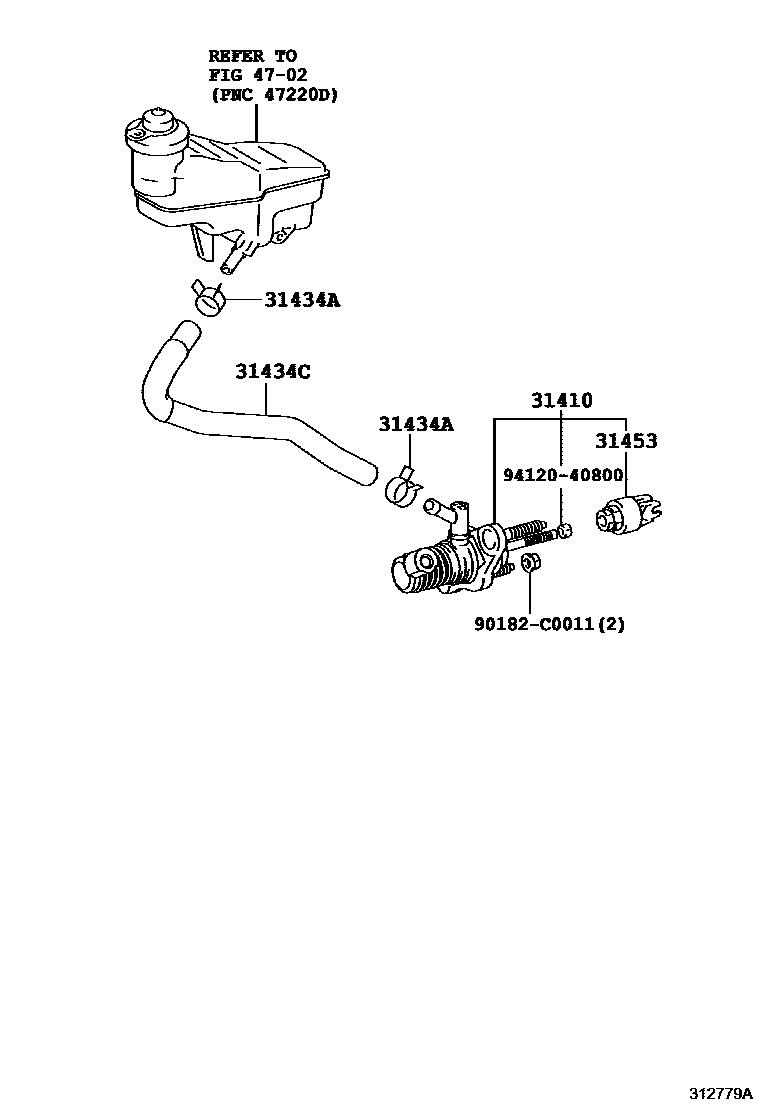

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0D210iNSP15#..5F201312-201608

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-C0021×2iNSP15#..5F201608-202111

(L)

main96136-41801×2iNSP15#..5F201608-202111

(J)

31434CTUBE, CLUTCH RESERVOIR

main31434-52300iNSP15#..5F201312-201608

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-52010iNSP15#..5F201312-201608

4702

90182C0011

main90182-C0011

9412040800

main94120-40800

7 parts on this diagram · 1 diagram in section
