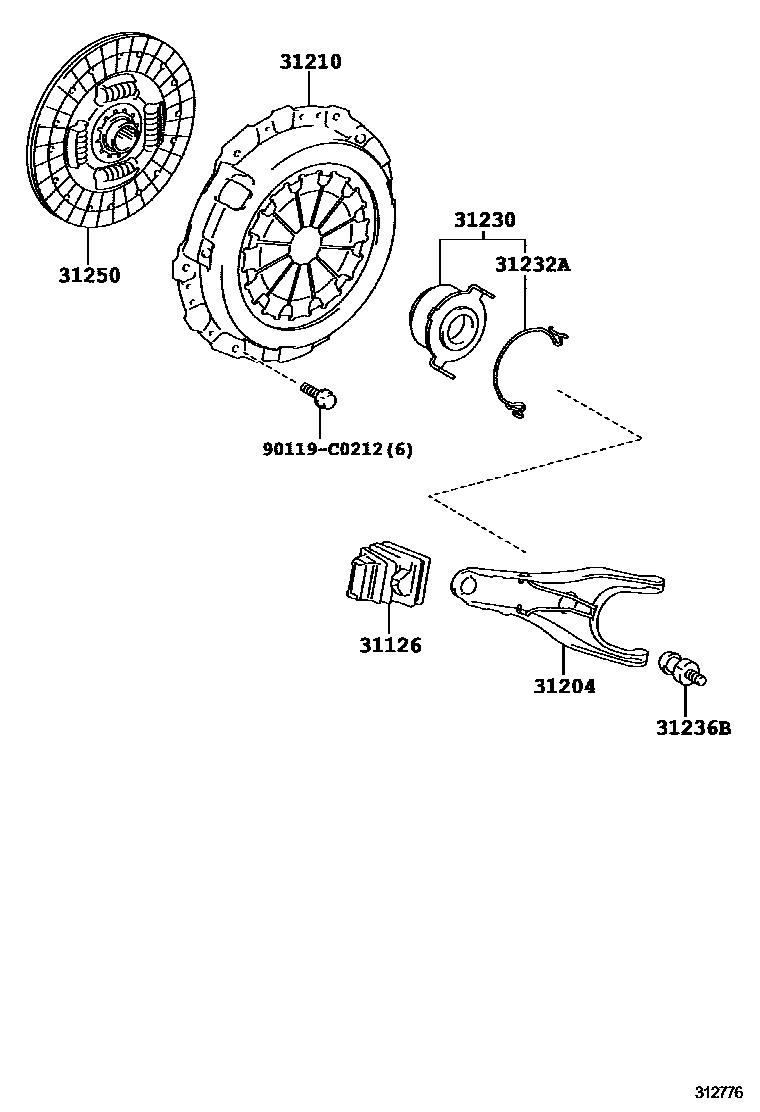

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-0D040iNSP15#..5F201608-202111

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0D030iNSP15#..5F201312-201608

31210COVER ASSY, CLUTCH

main31210-0D160iNSP150..5F201312-201608

main31210-0D170iNSP151..5F201608-202111

31230BEARING ASSY, CLUTCH RELEASE

main31230-0D010iNSP15#..5F201312-201512

main31230-0D011iNSP15#..5F201608-201711

main31230-0D012iNSP15#..5F201712-202111

31232ACLIP, RELEASE BEARING HUB

main31232-0D010iNSP15#..5F201512-201608

main31232-12070iNSP15#..5F201312-201512

31236BSUPPORT, RELEASE FORK

main31236-0D010iNSP15#..5F201608-202111

31250DISC ASSY, CLUTCH

main31250-0D200iNSP150..5F201312-201608

main31250-0D210iNSP151..5F201312-201608

90119C0212

main90119-C0212

8 parts on this diagram · 1 diagram in section
