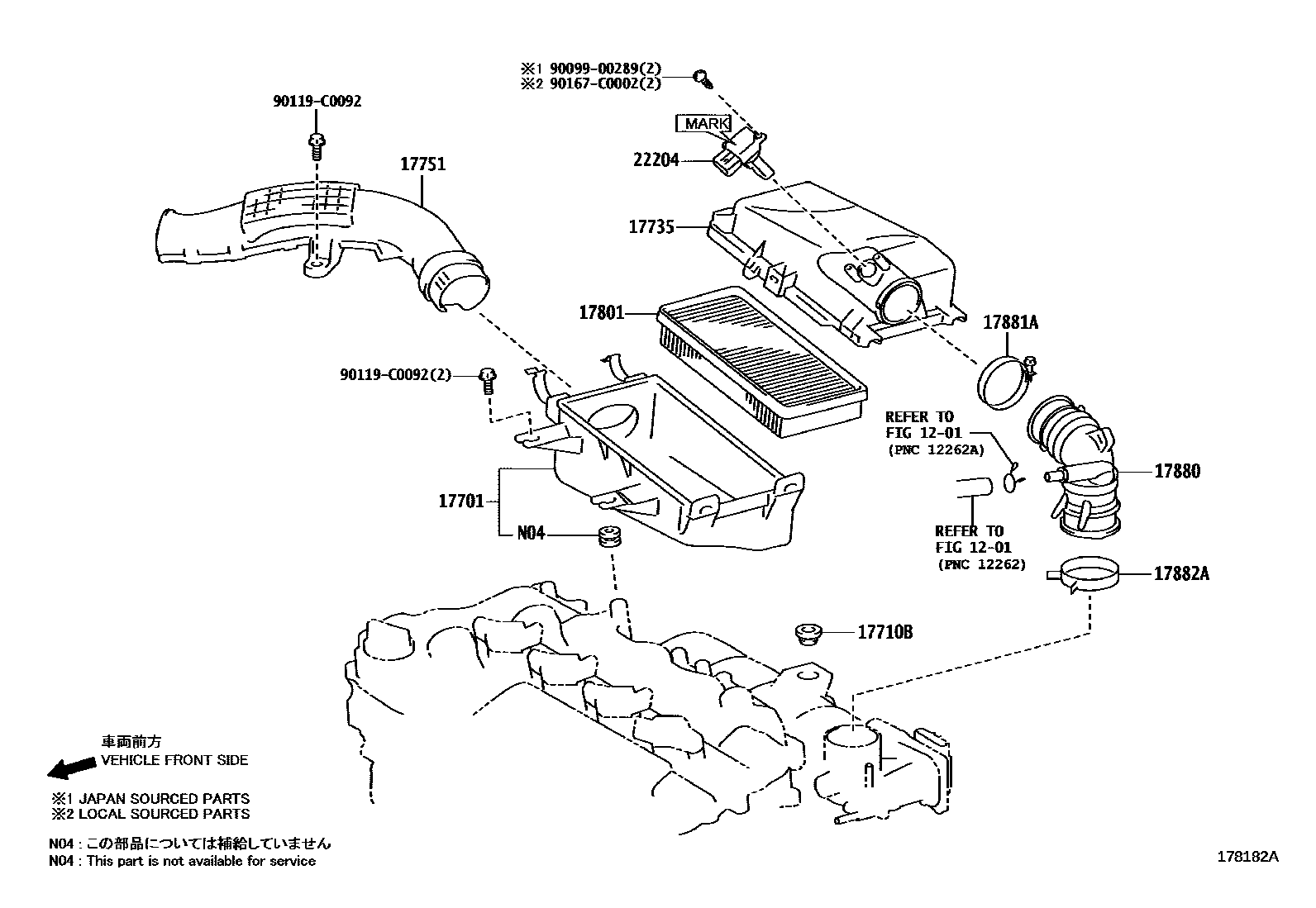

AIR CLEANER

0001 1 0002 1 0004 1 0005 1 0007 1

1201

17701CASE SUB-ASSY, AIR CLEANER

main17701-0Y090i6NRFE,7NRFE..NSP15#201312-201608

main17701-0Y170i6NRFE..NSP150;7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201608

17710BGROMMET

main90480-15036i6NRFE,7NRFE..NSP15#201312-201608

(J)

main90480-C0003i6NRFE,7NRFE..NSP15#201312-201608

(L)

17735CAP, AIR CLEANER

main17735-0Y060i6NRFE,7NRFE..NSP15#201312-201608

17751INLET, AIR CLEANER, NO.1

main17751-0Y110i6NRFE,7NRFE..NSP15#201312-201412

main17751-0Y111i6NRFE,7NRFE..NSP15#201412-201608

main17751-0Y220i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201608-202111

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0Y060i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201608-202111

17880HOSE ASSY, AIR CLEANER

main17880-0Y070i6NRFE,7NRFE..NSP15#201312-201608

17881HOSE, AIR CLEANER, NO.1

main17881-0Y190i7NRFE..NSP151..5F201608-202111

main17881-0Y260i6NRFE..NSP150..CVT201608-201911

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690i6NRFE,7NRFE..NSP15#201312-201608

17882HOSE, AIR CLEANER, NO.2

main17882-0Y050i7NRFE..NSP151..5F201608-201812

main17882-0Y100i7NRFE..NSP151..CVT201608-201812

main17882-0Y180i7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201812

main17882-0Y190i7NRFE..NSP151..5F202011-202111

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i6NRFE,7NRFE..NSP15#201312-201608

(J)

main90466-C0019i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201608-202111

(L)

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i6NRFE,7NRFE..NSP15#201312-201608

MARK 22204-0T040

main22204-0V020i6NRFE..NSP150;7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201608

MARK 22204-0V020

main22204-28010i6NRFE..NSP150;7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201608

MARK 22204-28010

9009900289

main90099-00289

90119C0092

main90119-C0092

90167C0002

main90167-C0002

15 parts on this diagram · 5 diagrams in section
