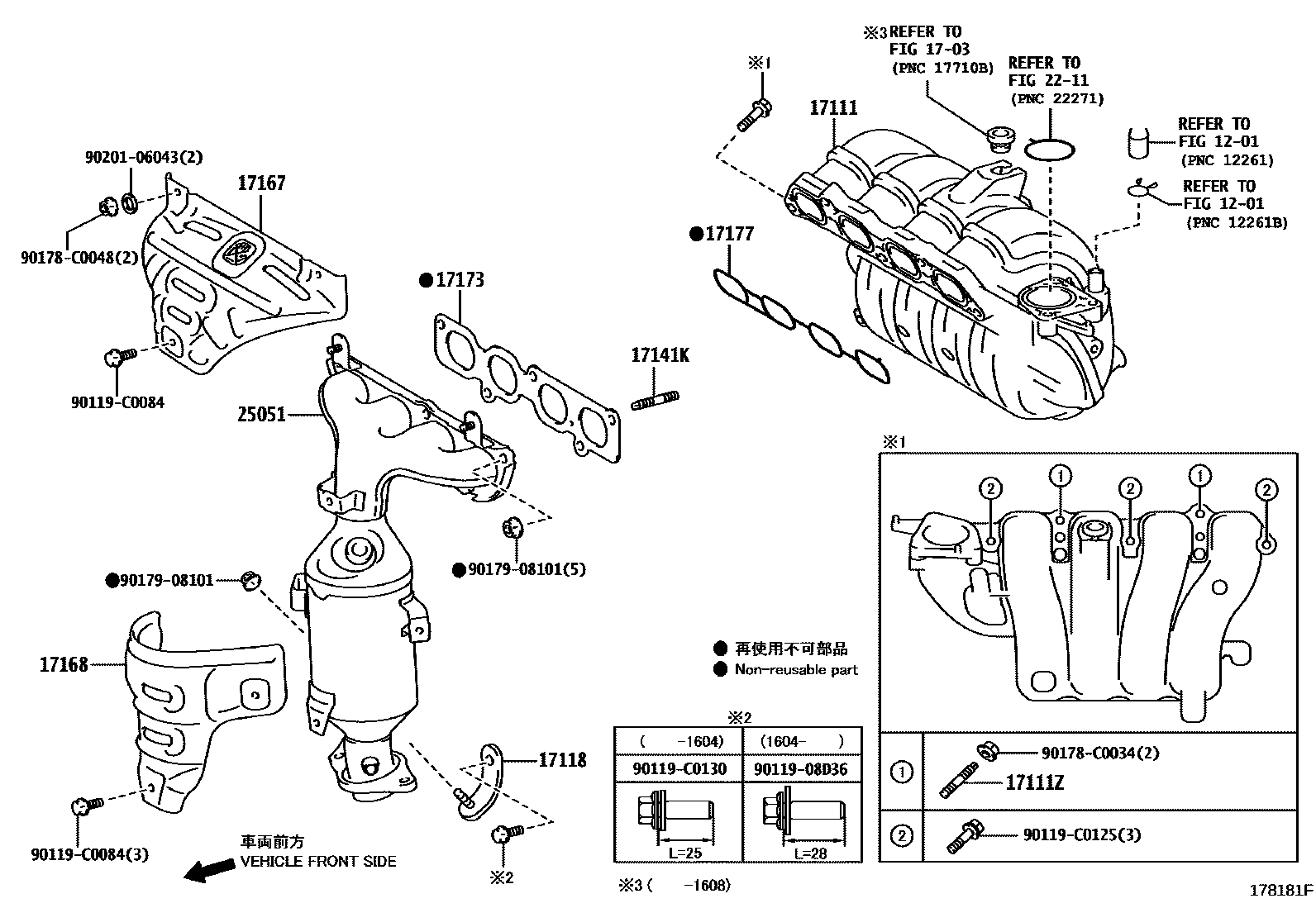

MANIFOLD

0001 1 0003 1

1201VENTILATION HOSE

→ Go to FIG 12-01

1703AIR CLEANER

→ Go to FIG 17-03

17111MANIFOLD, INTAKE

main17101-0Y030i6NRFE,7NRFE..NSP15#201312-201608

main17101-0Y080i7NRFE..NSP151201608-201911

main17101-0Y120i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201812-202111

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-C0005i6NRFE,7NRFE..NSP15#201312-202111

17118STAY, MANIFOLD

main17118-0Y190i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201806-202111

(L)

main17118-47010i6NRFE,7NRFE..NSP15#201312-201607

main17118-47011i6NRFE,7NRFE..NSP15#201607-201806

main17118-47011i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201806-202111

(J)

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-C0004i6NRFE,7NRFE..NSP15#201312-202111

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-0Y010i7NRFE..NSP151201312-201911

main17167-0Y080i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201812-202111

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-0Y010i6NRFE,7NRFE..NSP15#201312-201911

main17168-0Y070i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201812-202111

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0Y020i6NRFE,7NRFE..NSP15#201312-202111

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0Y010i6NRFE,7NRFE..NSP15#201312-202111

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-0Y030i6NRFE,7NRFE..NSP15#201312-201608

main25051-0Y040i7NRFE..NSP151201608-201911

main25051-0Y200i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201812-202111

9011908D36

main90119-08D36

90119C0084

main90119-C0084

90119C0125

main90119-C0125

90119C0130

main90119-C0130

90178C0034

main90178-C0034

90178C0048

main90178-C0048

9017908101

main90179-08101

9020106043

main90201-06043

20 parts on this diagram · 2 diagrams in section
