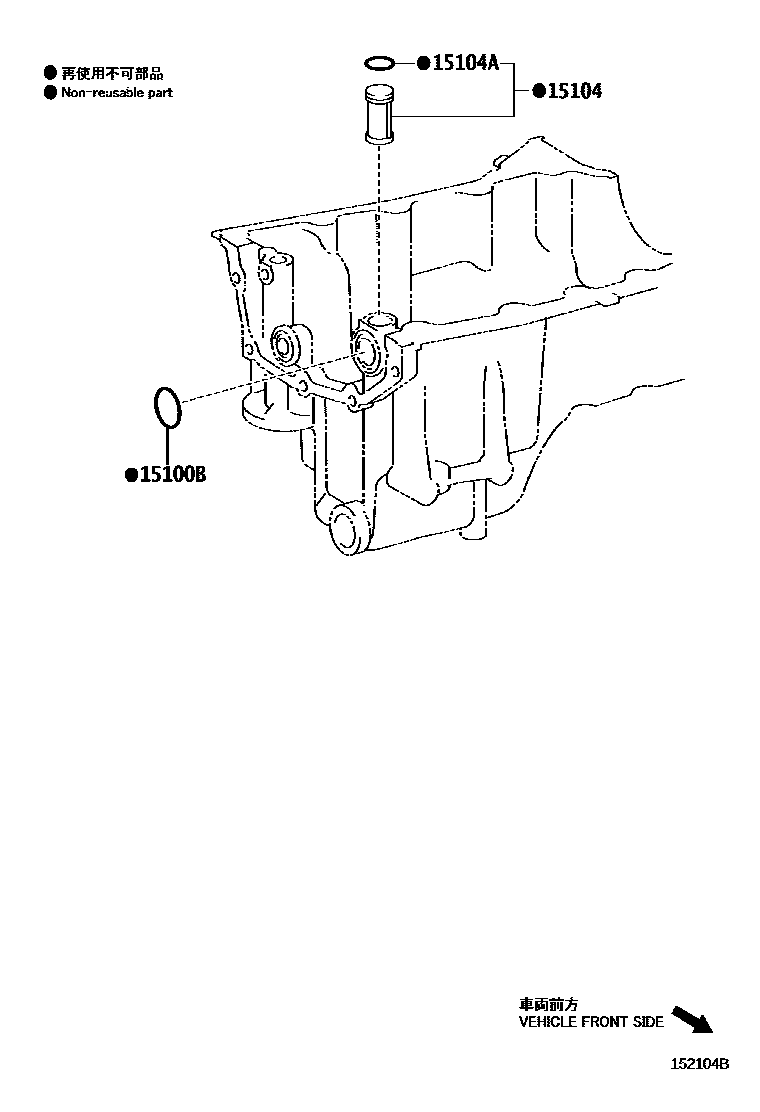

ENGINE OIL PUMP

15100BRING, O(FOR OIL PUMP)

main90301-C0040i6NRFE..NSP150;7NRFE..NSP151..4D..CVT..R;7NRFE..NSP151..5D..CVT..(G,R)201312-202111

15104STRAINER SUB-ASSY, OIL

main15104-0Y030i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201903-202111

main15104-47060i6NRFE,7NRFE..NSP15#201312-201902

15104ARING, O(FOR OIL STRAINER)

main96723-19018i6NRFE,7NRFE..NSP15#201312-201903

3 parts on this diagram · 1 diagram in section
