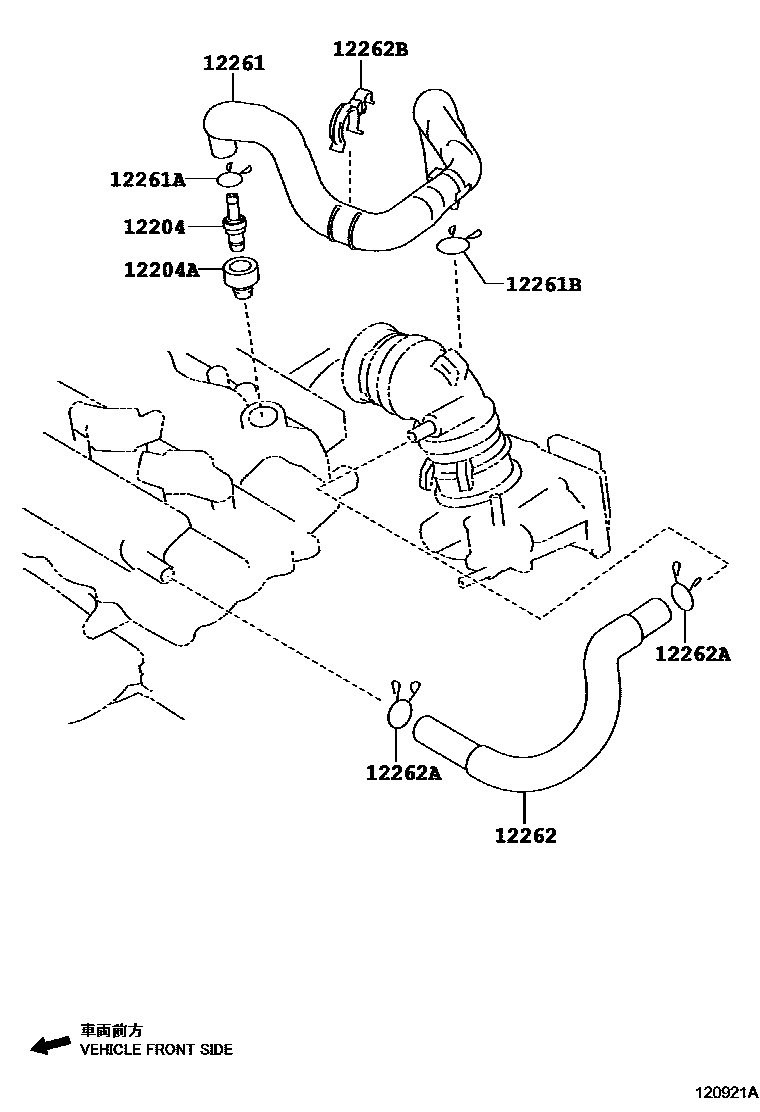

VENTILATION HOSE

0001 1 0002 1 0004 1

12204VALVE SUB-ASSY, VENTILATION

main12204-47070i6NRFE,7NRFE..NSP15#201312-201608

main12204-47090i7NRFE..NSP151201608-201812

main12204-47110i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201812-202111

12204AGROMMET(FOR VENTILATION SYSTEM)

main11249-47020i7NRFE..NSP151201608-201812

main90480-18016i6NRFE,7NRFE..NSP15#201312-201507

12261HOSE, VENTILATION

main12261-0Y030i6NRFE..NSP150201608-201911

main12261-0Y090i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201812-202111

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-16035i6NRFE,7NRFE..NSP15#201312-201608

12261BCLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-23002i6NRFE,7NRFE..NSP15#201312-201608

12262HOSE, VENTILATION, NO.2

main12262-0Y070i6NRFE,7NRFE..NSP15#201312-201608

main12262-0Y120i7NRFE..NSP151201608-201812

main12262-0Y160i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201812-202111

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004×2i6NRFE,7NRFE..NSP15#201312-201608

12262BCLAMP(FOR VENTILATION HOSE)

main16581-0Y060i6NRFE,7NRFE..NSP15#201607-201608

main16581-0Y070i7NRFE..NSP151..N;7NRFE..NSP151..5F..R;7NRFE..NSP151..4D..G201812-202111

main16581-47040i6NRFE,7NRFE..NSP15#201312-201606

8 parts on this diagram · 3 diagrams in section
