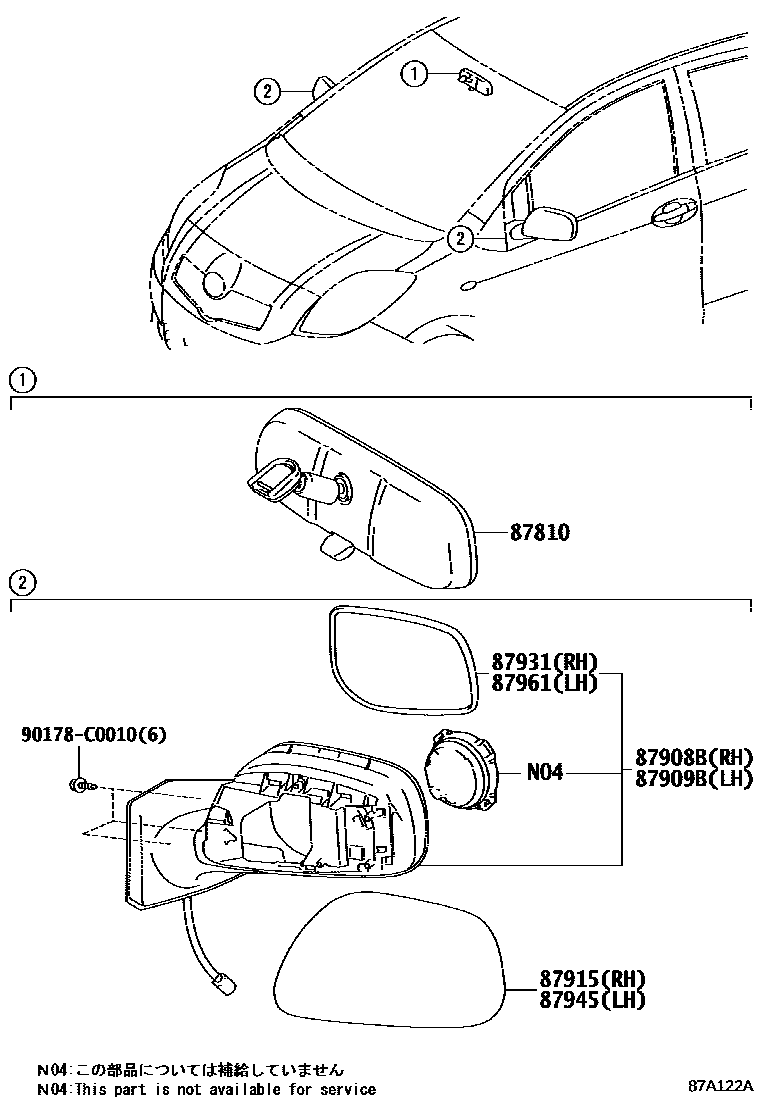

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-06061iNCP90,ZSP91200805-200903

main87810-06062iNCP90,ZSP91200904-201202

main87810-0D070iNCP90,ZSP91201203

87908BMIRROR SUB-ASSY, RH

main87908-0D440iZSP91200805-201008

main87908-0D450iNCP90200805

87909BMIRROR SUB-ASSY, LH

main87909-0D440iZSP91200805-201008

main87909-0D450iNCP90200805

87915COVER, OUTER MIRROR, RH

main87915-0D907iNCP90,ZSP91200805

PAINT REQ.

87931OUTER MIRROR, RH

main87931-0D440iNCP90,ZSP91200805

87945COVER, OUTER MIRROR, LH

main87945-0D907iNCP90,ZSP91200805

PAINT REQ.

87961MIRROR OUTER, LH

main87961-0D440iNCP90,ZSP91200805

90178C0010

main90178-C0010

8 parts on this diagram · 1 diagram in section
