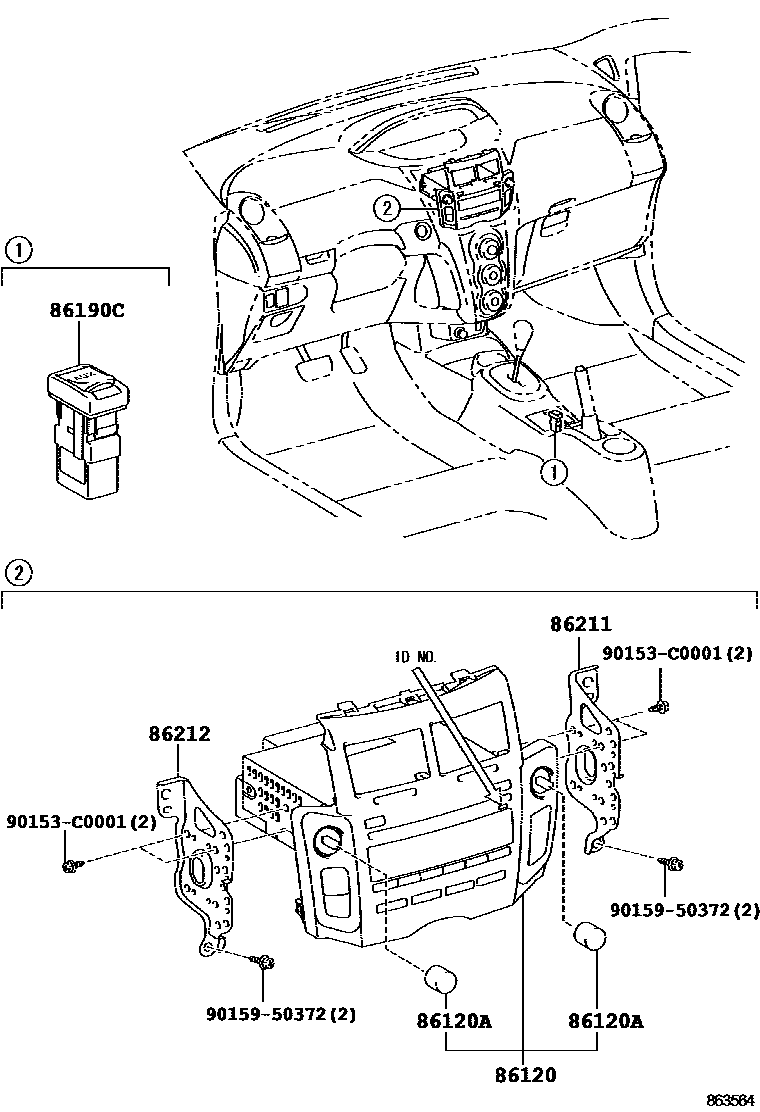

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-0D470iNCP90,ZSP91..STD200805-201008

MATSUSHITA,ID=52827

main86120-0D480iNCP90,ZSP91..STD201008

MATSUSHITA,ID=52838

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25155×2iZSP91..RS200805-201008

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0D020iZSP91..RS200904-201008

main86190-52040iNCP90,ZSP91200805-200904

86211BRACKET, RADIO, NO.1

main86211-0D090iZSP91..RS200805-201008

86212BRACKET, RADIO, NO.2

main86212-0D090iZSP91..RS200805-201008

90153C0001

main90153-C0001

9015950372

main90159-50372

7 parts on this diagram · 2 diagrams in section
