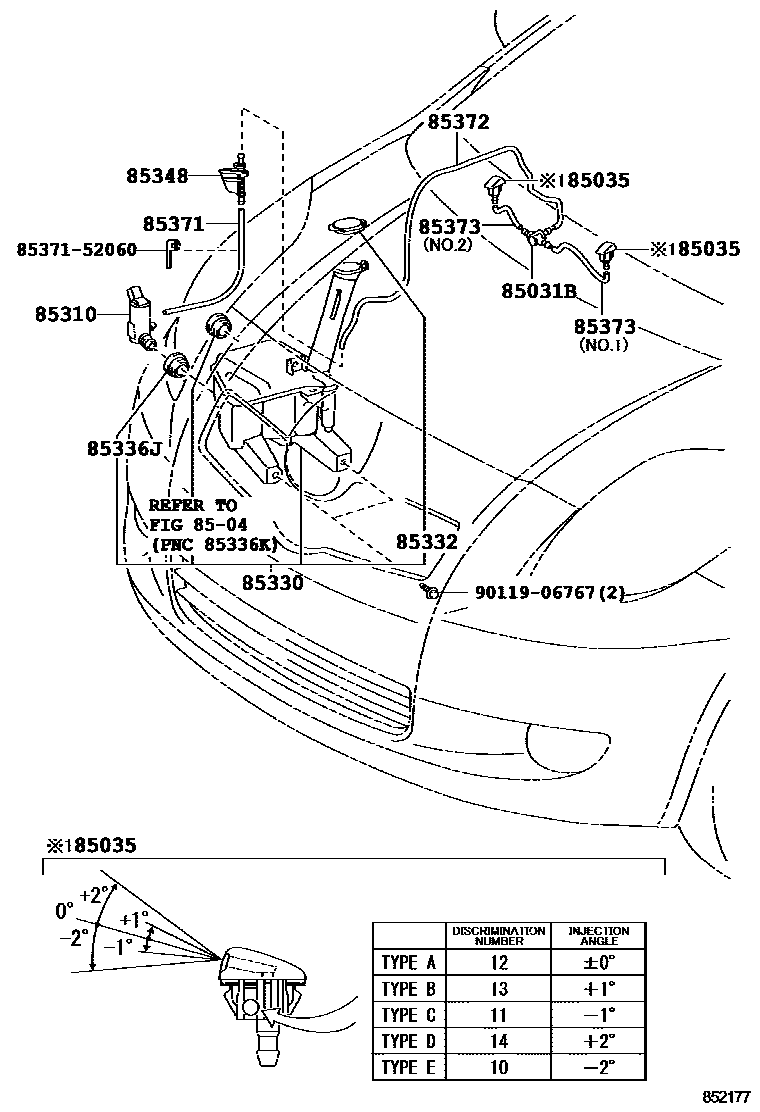

WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-30080iZSP91..RS200805-201008

85035NOZZLE SUB-ASSY, WASHER

main85381-52250×2iNCP90,ZSP91..STD200805

TYPE A:REFER ILLUST.

main85381-52280×2iZSP91..RS200805-201008

TYPE B:REFER ILLUST.

main85381-52290×2iZSP91..RS200805-201008

TYPE C:REFER ILLUST.

main85381-52300×2iZSP91..RS200805-201008

TYPE D:REFER ILLUST.

main85381-52310×2iNCP90,ZSP91..STD200805

TYPE E:REFER ILLUST.

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0D010iNCP90,ZSP91..STD200805

85330JAR ASSY, WINDSHIELD WASHER

main85315-0D120iNCP90,ZSP91..STD200805

85332CAP, WINDSHIELD WASHER JAR

main85316-02200iNCP90,ZSP91..STD200805

85336JPROTECTOR, WASHER JAR

main90099-32089iZSP91..RS200805-201008

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85385-52361iZSP91..RS200805-201008

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33049iNCP90,ZSP91..STD200805

L=720

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33079iZSP91..RS200805-201008

L=780

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33078iZSP91..RS200805-201008

L=315,NO.1

main90068-33080iZSP91..RS200805-201008

L=330,NO.2

sub90099-33080

8537152060HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52060

9011906767

main90119-06767

13 parts on this diagram · 1 diagram in section
