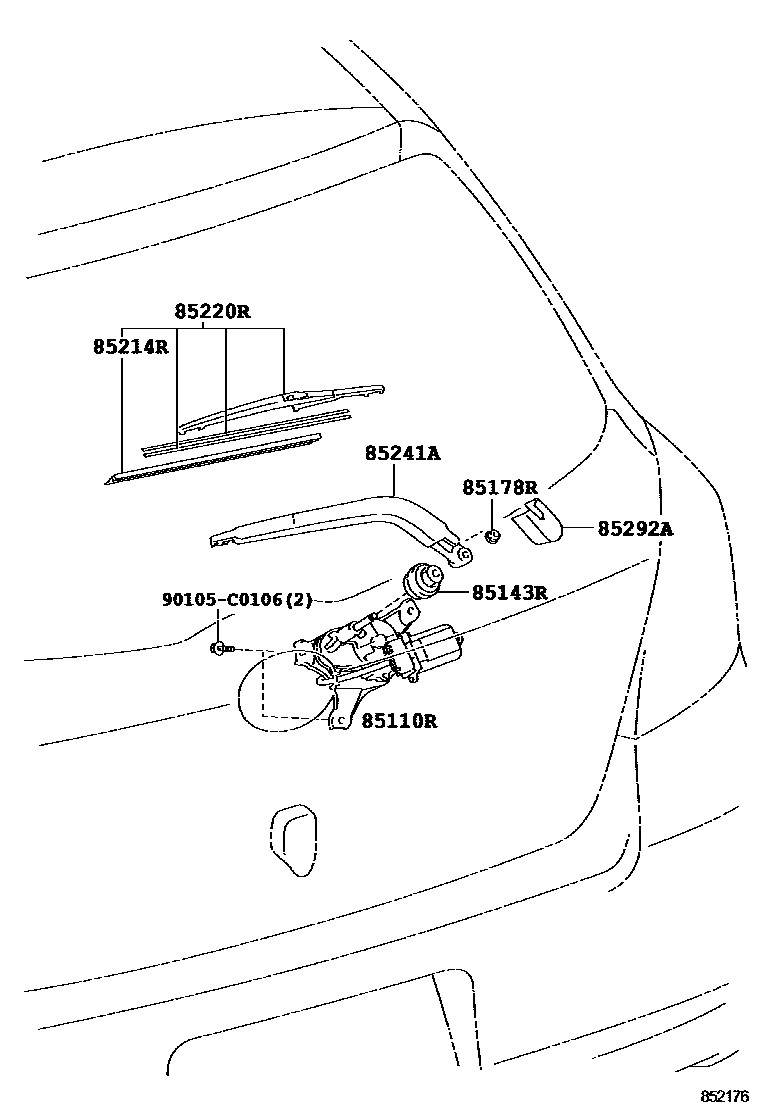

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0D050iZSP91..RS200805-201008

85143RGROMMET, REAR WIPER MOTOR

main85143-52020iZSP91..RS200805-201008

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iZSP91..RS200805-201008

85214RRUBBER, REAR WIPER

main85214-31010iZSP91..RS200805-201008

85220RBLADE ASSY, REAR WIPER

main85242-0D040iZSP91..RS200805-201008

85241AARM, REAR WIPER

main85241-0D050iZSP91..RS200805-201008

85292ACAP, REAR WIPER ARM HEAD

main85292-0D080iZSP91..RS200805-201008

90105C0106

main90105-C0106

8 parts on this diagram · 1 diagram in section
