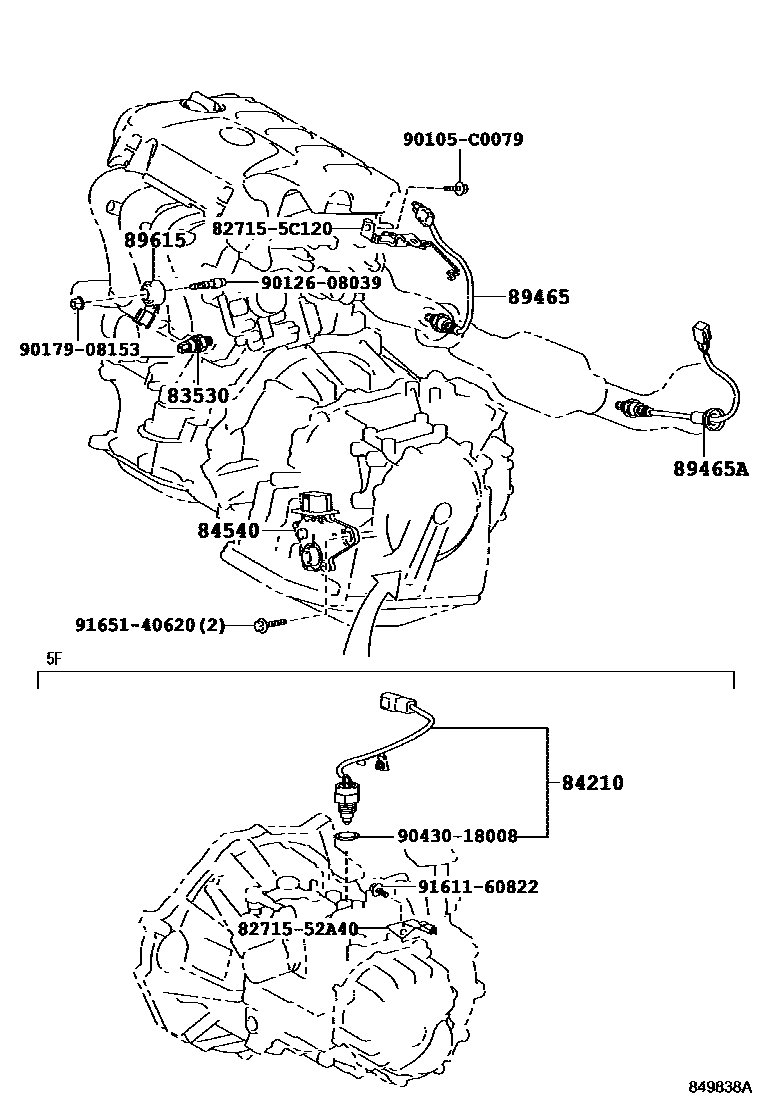

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1STEERING 0008 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iZSP91..RS200805-201008

DENSO

main83530-60020iNCP90,ZSP91..STD200805-201008

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-52010iNCP90,ZSP91..5F200805-201308

84540SWITCH ASSY, NEUTRAL START

main84540-46010iNCP90..4FC200805-201308

main84540-52080iZSP91..4FC200805-201308

89465SENSOR, OXYGEN

main89465-12880iZSP91200805-201102

main89465-52380iNCP90200805

main89467-52060iZSP91201102

89465ASENSOR, OXYGEN NO.2

main89465-0D200iZSP91200805

main89465-52370iNCP90200805

89615SENSOR, KNOCK CONTROL

main89615-20090iZSP91..RS200805-201008

8271552A40BRACKET,WIRING HARNESS CLAMP

main82715-52A40

827155C120BRACKET,WIRING HARNESS CLAMP

main82715-5C120

90105C0079

main90105-C0079

9012608039

main90126-08039

9017908153

main90179-08153

9043018008

main90430-18008

9161160822

main91611-60822

9165140620

main91651-40620

14 parts on this diagram · 8 diagrams in section
