BATTERY & BATTERY CABLE

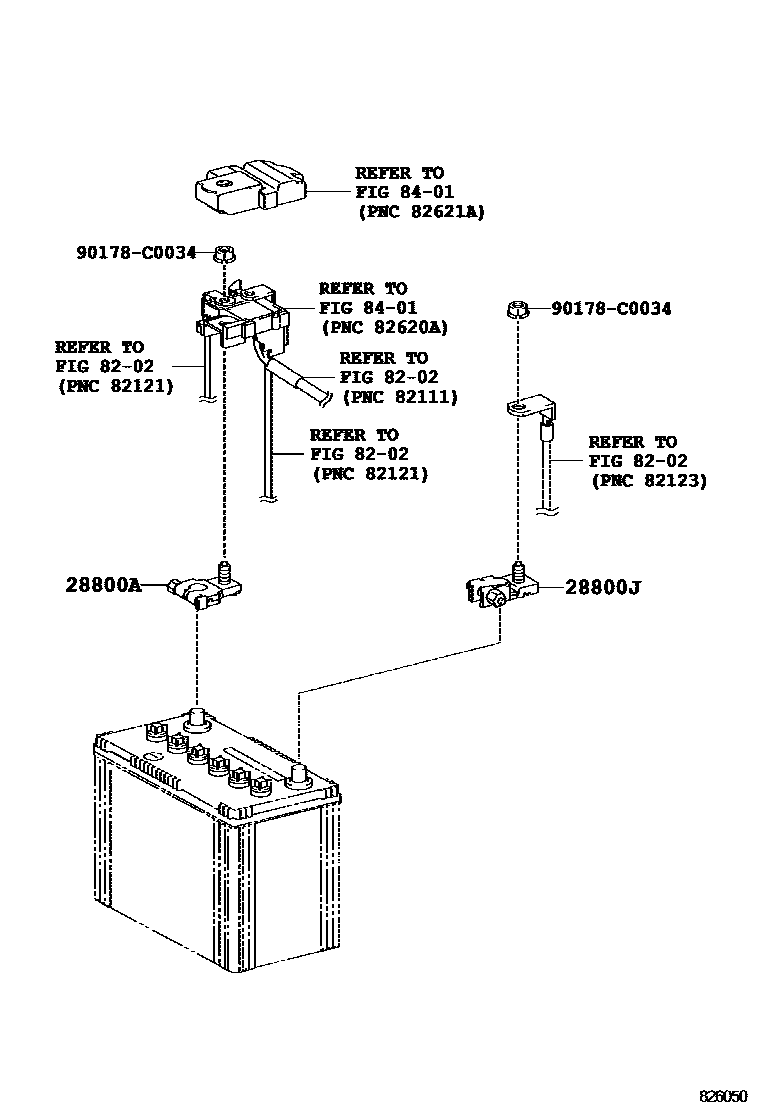

Parts diagram

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i200805-201008

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i200805-201008

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90178C0034

main90178-C0034

5 parts on this diagram · 1 diagram in section
