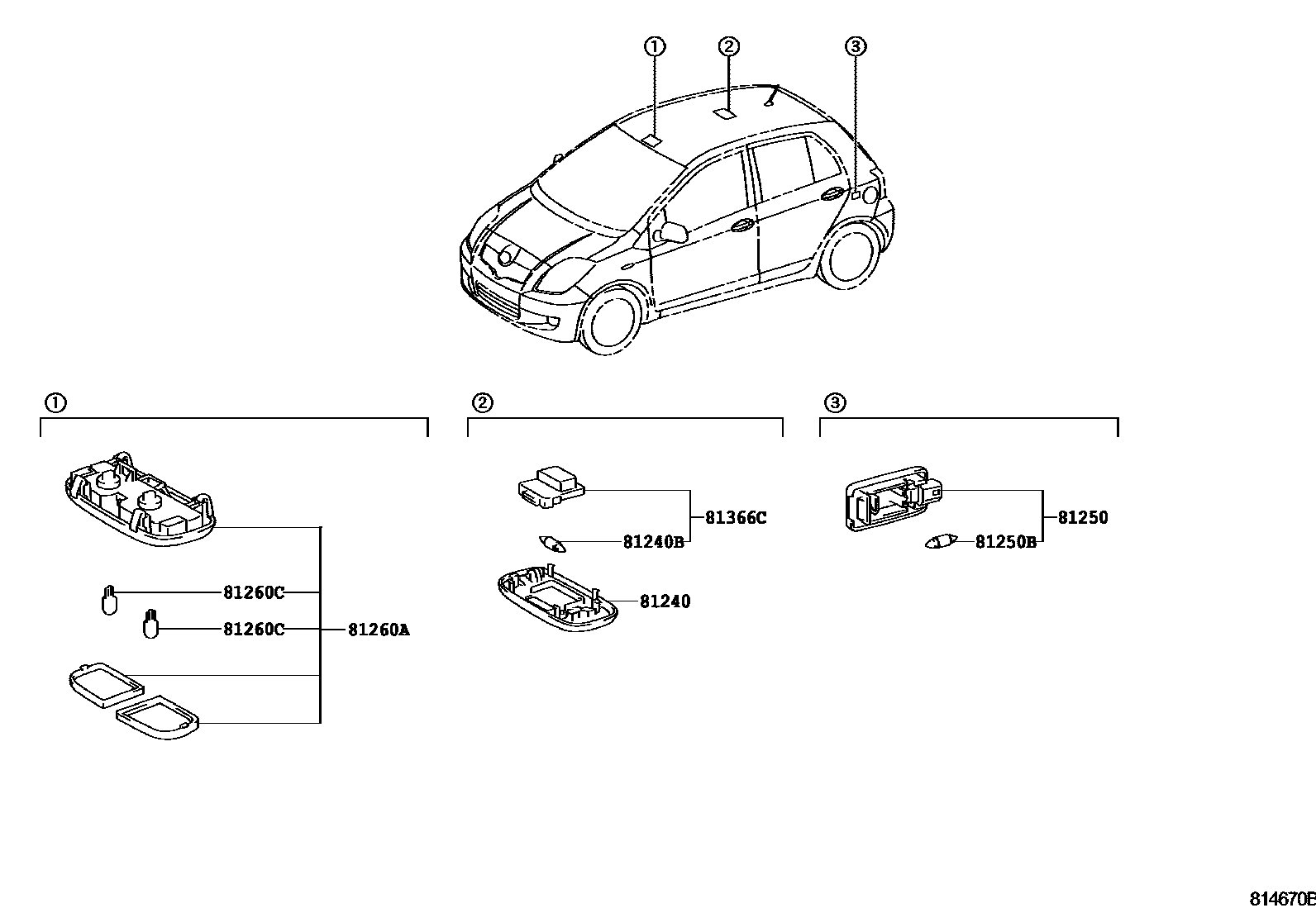

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B0iZSP91200805-201308

GRAY,TRIM1#

main81240-52040-E0iNCP90,ZSP91..STD200805-201308

GREGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZSP91..RS200805-201008

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-05040iNCP90,ZSP91201010-201210

sub81250-02030

main81330-05021iNCP90,ZSP91200805-201010

main81330-05050iNCP90,ZSP91201210

sub81330-02060

81250BBULB, ROOM LAMP, NO.2

main90981-WE002iNCP90,ZSP91200805-201206

12V 5W

81260ALAMP ASSY, MAP

main81260-0D100-B0iZSP91200805-201308

GRAY,TRIM1#

main81260-0D100-E0iNCP90,ZSP91..STD200805-201308

GREGE,TRIM4#

81260CBULB(FOR MAP LAMP)

main90981-11062×2iZSP91..RS200805-201008

12V 8W

81366CBASE, ROOM LAMP SWITCH

main81366-68010iNCP90,ZSP91200805-201308

7 parts on this diagram · 1 diagram in section
