Toyota 110310 — HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
81131AUNIT, HEADLAMP, RH
81171AUNIT, HEADLAMP, LH
81189COVER, HEADLAMP
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
9015950346
9018905142

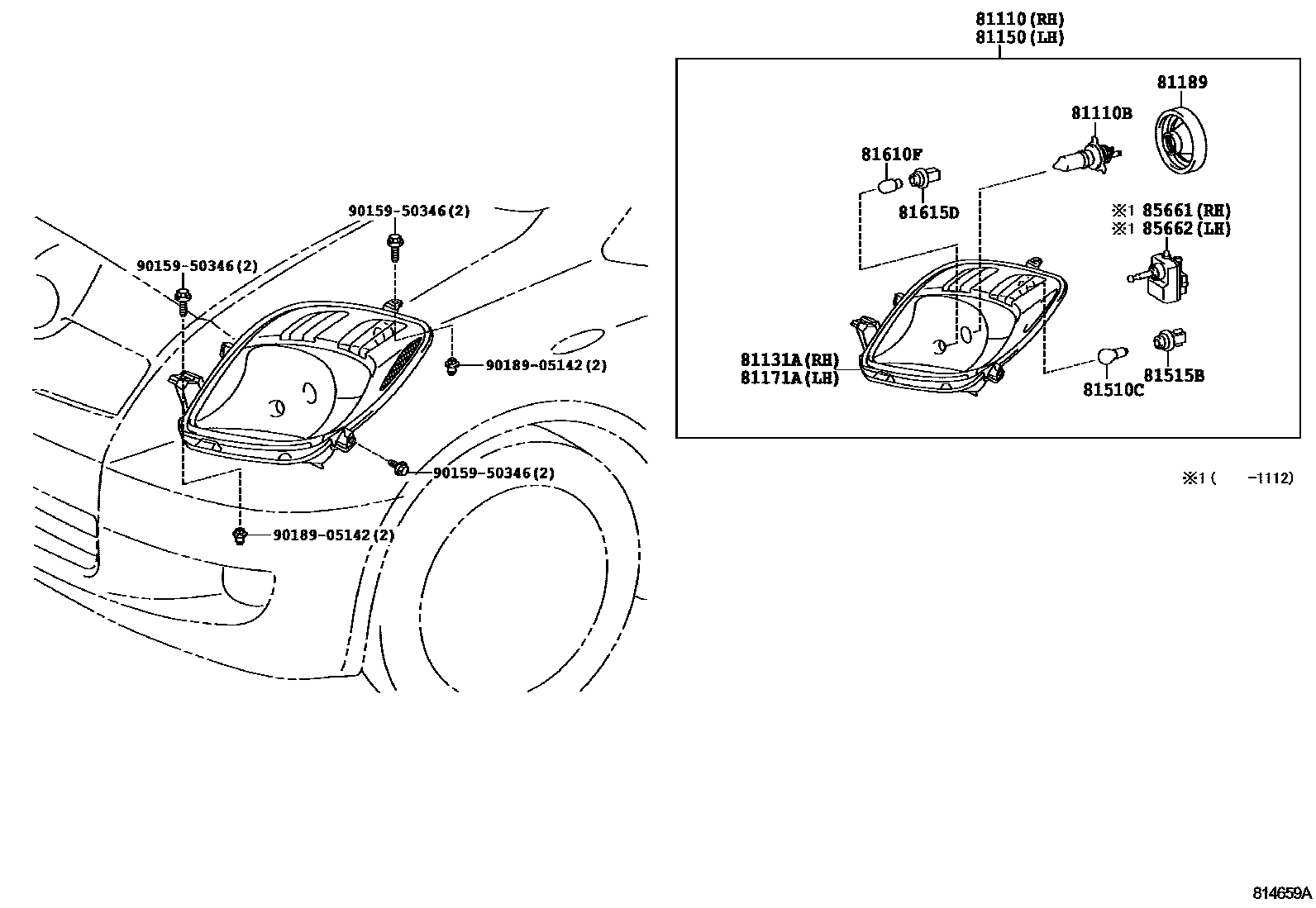

14 parts on this diagram · 1 diagram in section
HEADLAMP for Toyota 110310
This section contains 14 genuine Toyota parts for the HEADLAMP system of the Toyota 110310. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), UNIT, HEADLAMP, RH, HEADLAMP ASSY, LH, UNIT, HEADLAMP, LH.
