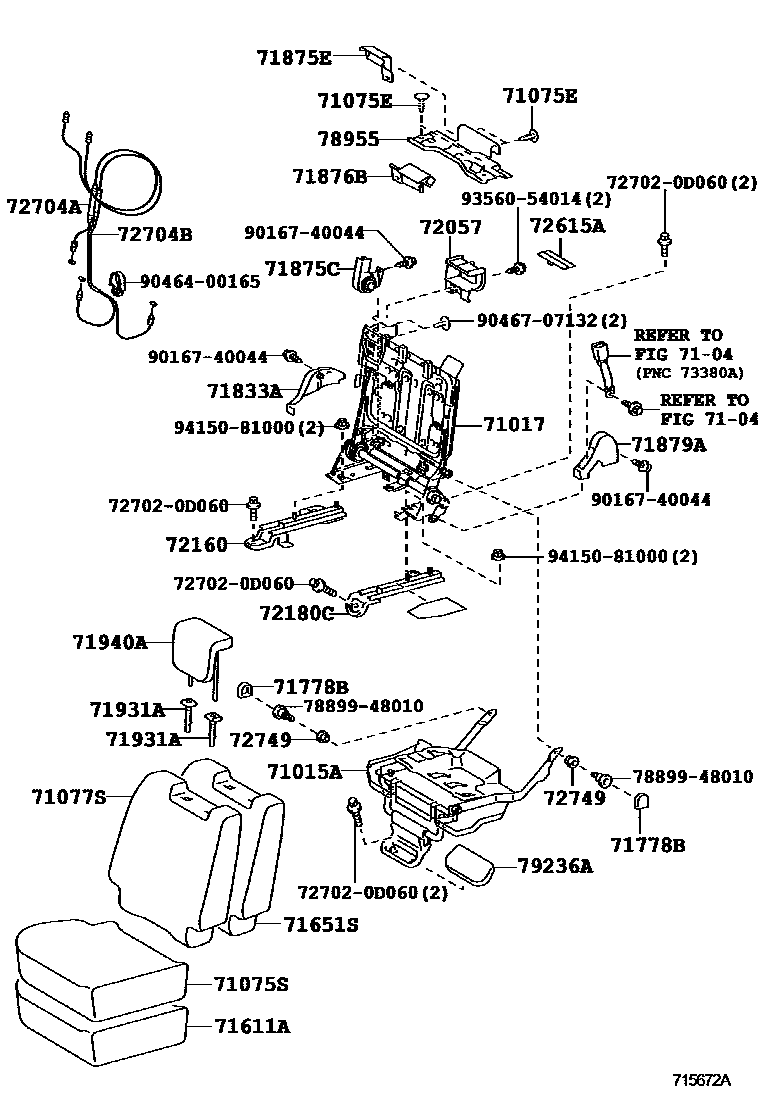

REAR SEAT & SEAT TRACK

0001 1RH 0002 1LH 0003 1 0004 1SEAT BACK = 6:4 SPRIT TYPE

71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH

main71015-0D130iZSP91..RS200805-201008

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-0D190iZSP91..RS200805-201008

main71017-0D260iZSP91201008

REAR SEAT-6:4 SPRIT TYPE

7104

71075ECLIP(FOR REAR SEAT)

main90467-06085-B2×10iZSP91..RS200805-201008

DK.GRAY,TRIM1#

71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

main71075-0D590-B0iZSP91..RS200805-201008

DK.GRAY,TRIM1#

sub71075-0D591

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0D720-B0iZSP91..RS200805-201008

DK.GRAY,TRIM1#

sub71077-0D721

main71077-0DB60-B1iZSP91201008-201308

REAR SEAT-6:4 SPRIT TYPE,GRAY,TRIM1#

71611PAD, REAR SEAT CUSHION

main71503-0D120iNCP90,ZSP91..STD200805

main71503-0D200iZSP91201008

REAR SEAT-6:4 SPRIT TYPE

71611APAD, REAR SEAT CUSHION, RH

main71611-0D040iZSP91..RS200805-201008

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0D150iZSP91..RS200805-201008

main71651-0D230iZSP91201008

REAR SEAT-6:4 SPRIT TYPE

71778BCOVER, REAR SEAT SIDE HINGE MALE, RH

main71778-0D030-B0×3iZSP91..RS200805-201008

DK.GRAY,TRIM1#

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-0D060-B0iZSP91..STD200805-201308

DK.GRAY,TRIM4#

main71833-0D070-B0iZSP91..RS200805-201008

DK.GRAY,TRIM1#

main71833-52110-B0iZSP91..4FC201206-201308

1.6GS GRADE&REAR SEAT-6:4 SPRIT TYPE,DK.GRAY,TRIM1#,4#

71875CCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-0D150-B0iZSP91..STD200805-201308

DK.GRAY,TRIM4#

main71875-0D170-B0iZSP91..RS200805-201008

DK.GRAY,TRIM1#

main71875-52370-B0iZSP91201008-201308

REAR SEAT-6:4 SPRIT TYPE,DK.GRAY,TRIM1#,4#

71875ECOVER, RECLINING ADJUSTER INSIDE, RH

main71875-0D160-B0iZSP91..STD200805-201308

DK.GRAY,TRIM4#

main71875-0D180-B0iZSP91..RS200805-201008

DK.GRAY,TRIM1#

71876BCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-0D150-B0iZSP91..STD200805-201308

DK.GRAY,TRIM4#

main71876-0D170-B0iZSP91..RS200805-201008

DK.GRAY,TRIM1#

main71876-52320-B0iZSP91201008-201308

REAR SEAT-6:4 SPRIT TYPE,DK.GRAY,TRIM1#,4#

71879ACOVER, REAR SEAT RECLINING, INNER LH

main71879-0D040-B0iZSP91..RS200805-201008

DK.GRAY,TRIM1#

71931ASUPPORT, REAR SEAT HEADREST

main71930-42020-B4×2iZSP91200805-201308

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

sub71930-52030

sub71930-44020

main71930-42020-E1×2iNCP90,ZSP91..STD200805-201308

W(LOCK)&W(BUTTON),GREGE,TRIM4#

sub71930-52030

sub71930-44020

main71931-42020-B4×2iZSP91200805-201308

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

main71931-42020-E1×2iNCP90,ZSP91..STD200805-201308

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

71940AHEADREST ASSY, REAR SEAT

main71940-0D410-B0×2iZSP91..STD200805-201008

DK.GRAY,TRIM1#

sub71940-0D411

main71940-0D410-E0×2iNCP90,ZSP91..STD200805-201008

GREGE,TRIM4#

sub71940-0D411

main71940-0D420-B0×2iZSP91..RS200805-201008

DK.GRAY,TRIM1#

sub71940-0D421

main71940-0D630-E1×2iNCP90,ZSP91201008-201308

GREGE,TRIM4#

main71940-0D640-B1×2supersedes 71940-0D630-B1iZSP91201008-201308

REAR SEAT-6:4 SPRIT TYPE,GK.GRAY,TRIM1#

72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

main72057-0D060-E0iNCP90,ZSP91..STD200805-201308

GREGE,TRIM4#

main72057-0D070-B0iZSP91..RS200805-201008

DK.GRAY,TRIM1#

main72057-52020-B0supersedes 72057-0D060-B0iZSP91201206-201308

REAR SEAT-6:4 SPRIT TYPE,DK.GRAY,TRIM1#

72160TRACK ASSY, REAR SEAT, OUTER RH

main72160-52020iZSP91..RS200805-201008

72180CTRACK ASSY, REAR SEAT, INNER RH

main72160-52030iZSP91..RS200805-201008

72615ACOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-0D040-B0iZSP91..RS200805-201008

DK.GRAY,TRIM1#

main72615-52070-B0×2iZSP91201206-201308

REAR SEAT-6:4 SPRIT TYPE,DK.GRAY,TRIM1#

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-52030iZSP91..RS200805-201008

main72704-52110iNCP90,ZSP91..STD200805

72704BCABLE, REAR SEAT RECLINING CONTROL, NO.2

main72704-52050iZSP91..RS200805-201008

72749SPACER, REAR SEAT RECLINING

main72749-48010×3iZSP91..RS200805-201008

78955COVER, REAR SEAT UNDER TRAY RH

main78955-0D050-B0iZSP91..RS200805-201008

GRAY,TRIM1#

79236ACOVER, NO.2 SEAT LEG

main79236-0D040-C0×2iZSP91..RS200805-201008

BLACK,TRIM1#

727020D060BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-0D060

7889948010BOLT, FRONT SEAT

main78899-48010

9016740044

main90167-40044

9046400165

main90464-00165

9046707132

main90467-07132

9356054014

main93560-54014

9415081000

main94150-81000

33 parts on this diagram · 4 diagrams in section
