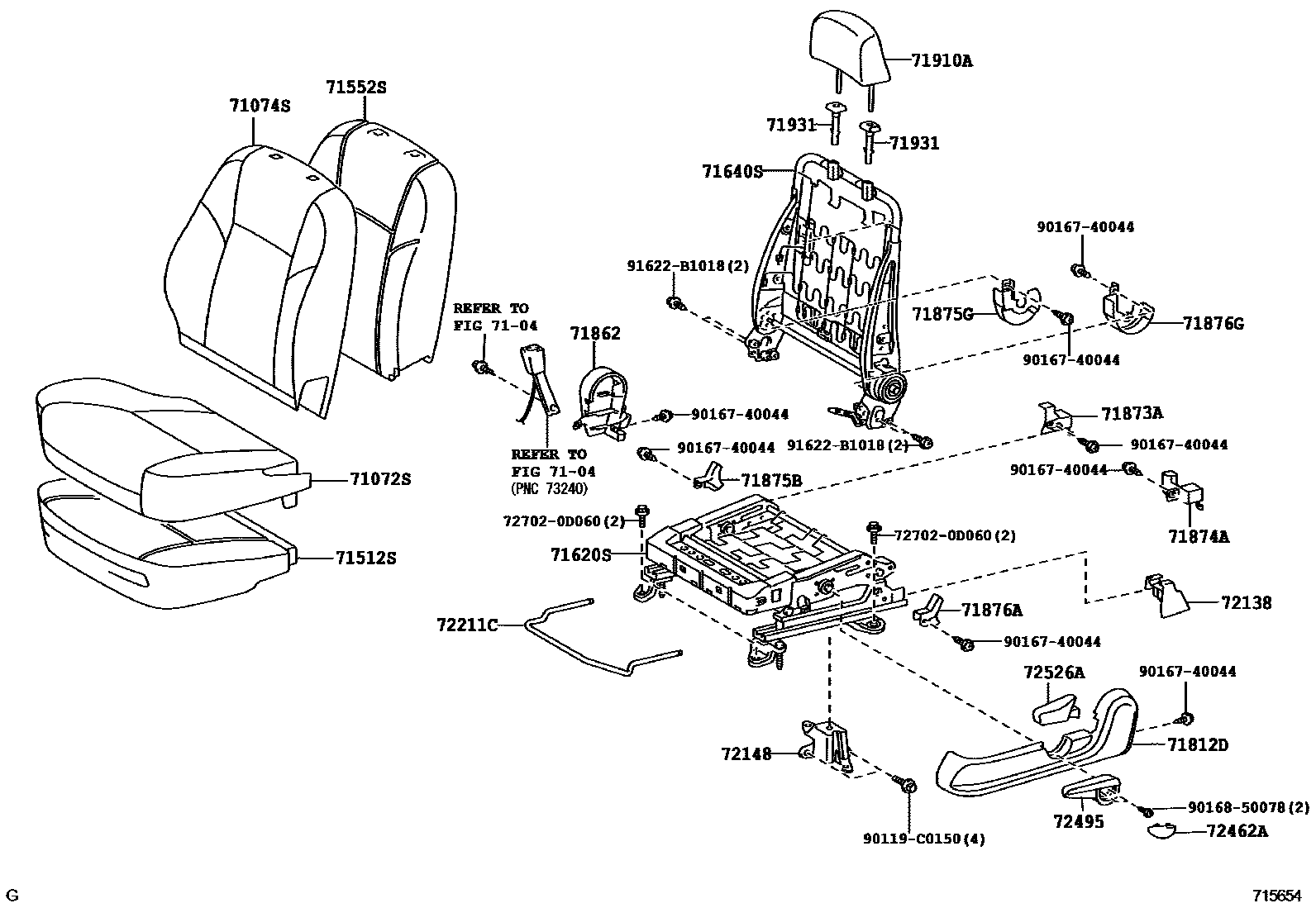

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0003 1DRIVER SEAT, W(SRS SIDE AIR B0004 1PASSENGER SEAT 0006 1PASSENGER SEAT, W(SRS SIDE AI

7104

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0D590-E1supersedes 71072-0D610-E1iNCP90200805-201008

GREGE,TRIM4#

sub71072-0D591

main71072-0D600-B1iZSP91..RS200805-201008

DK.GRAY,TRIM1#

sub71072-0D601

main71072-0DA90-B1iZSP91201206-201308

GRAY,TRIM1#

main71072-0DA90-E1iNCP90201008-201308

GREGE,TRIM4#

main71072-0DB00-B1iZSP91201008-201206

GRAY,TRIM1#

main71072-0D590-B1supersedes 71072-0D610-B1iZSP91..STD200903-201008

1.6E GRADE,DK.GRAY,TRIM1#

sub71072-0D591

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-0D760-E0supersedes 71074-0D460-E0iNCP90200805-201008

GREGE,TRIM4#

sub71073-0D761

main71074-0D450-B0iZSP91..RS200805-201008

DK.GRAY,TRIM1#

sub71074-0D451

main71074-0DA50-B1iZSP91201008-201206

GRAY,TRIM1#

main71073-0D760-B0supersedes 71074-0D460-B0iZSP91..STD200903-201008

1.6E GRADE,DK.GRAY,TRIM1#

sub71073-0D761

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0D100iNCP90,ZSP91200805

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-0D200iNCP90200805-201008

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-0D100iNCP90,ZSP91200805

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-0D160supersedes 71640-0D160iNCP90200805

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0D160-B0iNCP90200903-201308

DK.GRAY,TRIM40

main71812-0D160-E0iZSP91..STD200805-201308

GREGE,TRIM40

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-0D110-B0iZSP91..RS200805-201008

DK.GRAY,TRIM1#

main71862-0D110-E0iNCP90200903-201308

GREGE,TRIM40

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-0D100-B0iNCP90200805-201308

DK.GRAY,TRIM4#

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-0D100-B0iZSP91..RS200805-201008

DK.GRAY,TRIM1#

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0D100-B0iZSP91..RS200805-201008

DK.GRAY,TRIM1#

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0D100-B0iNCP90200805-201308

DK.GRAY,TRIM4#

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-06220-B0iNCP90200903-201308

DK.GRAY,TRIM40

main71875-06220-E0iZSP91..STD200805-201308

GREGE,TRIM40

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-06340iNCP90,ZSP91200805

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-06340-B0iNCP90200903-201308

DK.GRAY,TRIM40

main71876-06340-E0iNCP90200903-201308

GREGE,TRIM40

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-06340-B0iZSP91..RS200805-201008

DK.GRAY,TRIM1#

main71876-06340-E0iNCP90200805-200903

GREGE,TRIM4#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-06370iNCP90,ZSP91200805

71910AHEADREST ASSY, FRONT SEAT

main71910-0D630-B0×2iZSP91..STD200805-201008

DK.GRAY,TRIM1#

sub71910-0D631

main71910-0D630-E0×2iNCP90,ZSP91..STD200805-201008

GREGE,TRIM4#

sub71910-0D631

main71910-0D640-B0×2iZSP91..RS200805-201008

DK.GRAY,TRIM1#

sub71910-0D641

main71910-0D830-B1×2iZSP91201008-201308

GK.GRAY,TRIM1#

main71910-0D830-E1×2iNCP90,ZSP91201008-201308

GREGE,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47010-B2×2iZSP91200805-201308

W(LOCK),DK.GRAY,TRIM1#

sub71930-44020

main71930-47010-E3×2iNCP90,ZSP91..STD200805-201308

W(LOCK),GREGE,TRIM4#

sub71930-44020

main71931-47010-B2×2iZSP91200805-201308

W/O(LOCK),DK.GRAY,TRIM1#

sub71931-42020

main71931-47010-E4×2iNCP90,ZSP91..STD200805-201308

W/O(LOCK),GREGE,TRIM4#

sub71931-42020

72138COVER, SEAT TRACK, OUTER LH

main72138-0D060-B0iNCP90200805-201308

DK.GRAY,TRIM4#

72148BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

main72148-0D060iZSP91..RS200805-201008

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-0D100×2iNCP90,ZSP91200805

72462ACOVER, VERTICAL ADJUSTER LH

main72462-0D070-B0iZSP91..RS200805-201008

DK.GRAY,TRIM1#

main72462-0D070-E0iZSP91..STD200805-201308

GREGE,TRIM40

72495HANDLE, VERTICAL ADJUSTING, LH

main72494-0D070-B0iNCP90200903-201308

DK.GRAY,TRIM40

main72494-0D070-E0iNCP90200903-201308

GREGE,TRIM40

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-0D130-B0iZSP91..RS200805-201008

DK.GRAY,TRIM1#

main72526-0D130-E0iNCP90200903-201308

GREGE,TRIM40

727020D060BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-0D060

90119C0150

main90119-C0150

9016740044

main90167-40044

9016850078

main90168-50078

91622B1018

main91622-B1018

31 parts on this diagram · 4 diagrams in section
