Toyota 110310 — BACK DOOR LOCK & HANDLE
68801AHINGE SUB-ASSY, BACK DOOR, UPPER
68838PAD, BACK DOOR HINGE, NO.1
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69430CSTRIKER ASSY, BACK DOOR LOCK
9010506184
90109C0015
9011906417
90148C0006
9017910161
91511B0614

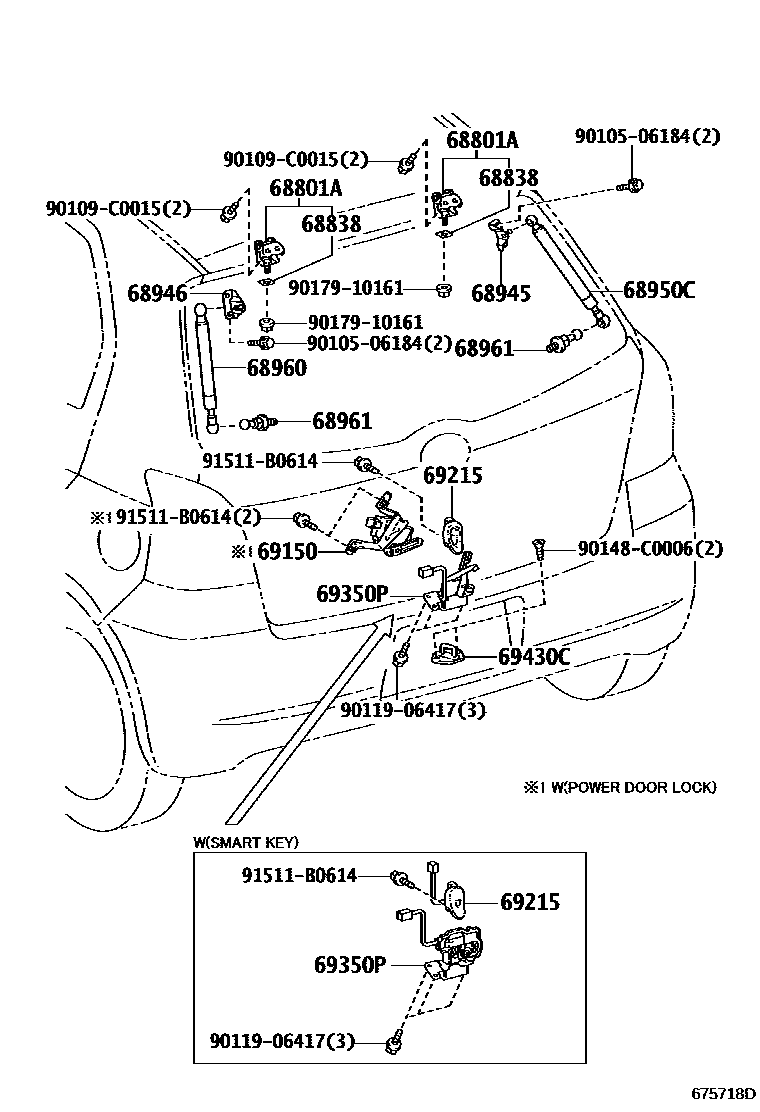

17 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota 110310
This section contains 17 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota 110310. Key components include: HINGE SUB-ASSY, BACK DOOR, UPPER, PAD, BACK DOOR HINGE, NO.1, BRACKET, BACK DOOR DAMPER STAY, UPPER RH, BRACKET, BACK DOOR DAMPER STAY, UPPER LH, STAY ASSY, BACK DOOR, RH.
